CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )CT19#

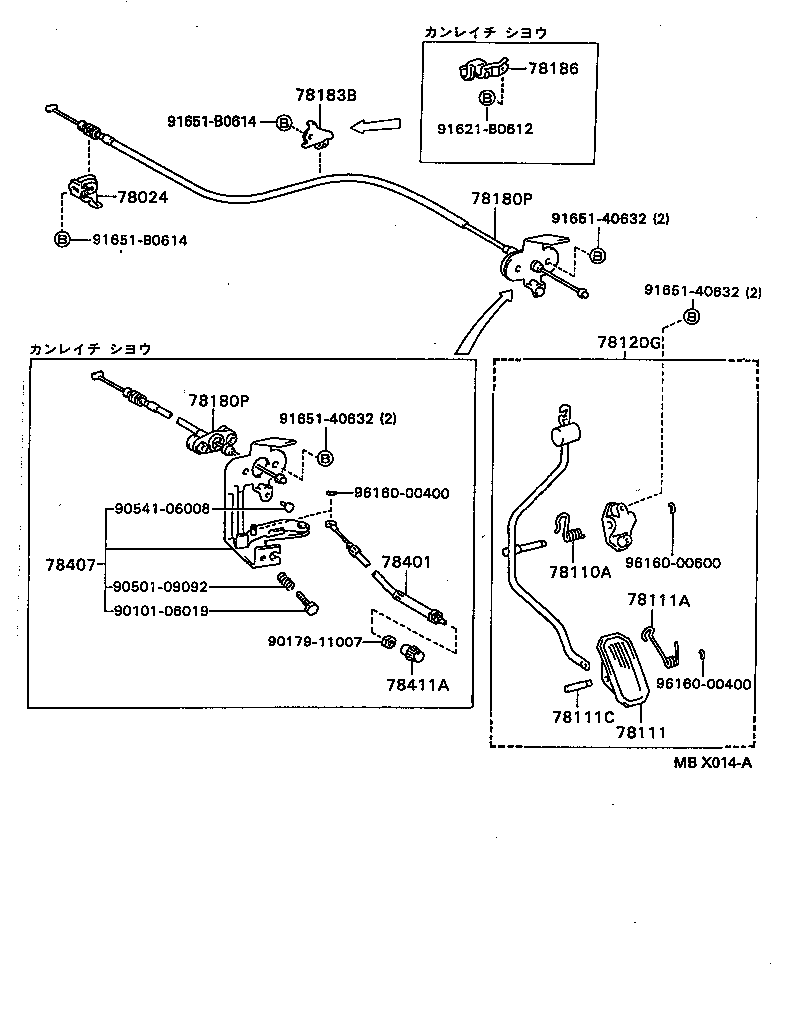

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78180P 78183B 78186 78401 78407 78411A 9010106019 9017911007 9050109092 9054106008 91621B0612 9165140632 9165140632 9165140632 91651B0614 91651B0614 9616000400 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32140

CT19#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

AT190,191,CT19#,ST19#..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-20050

CT19#..MTM

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AT19#,CT19#,ST19#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AT19#,CT19#,ST19#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20580

CT19#..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B870

CT190..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78180-2D150

CT190..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B870

CT190..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78180-2D150

CT190..MTM

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20170

AT19#,CT19#,ST19#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78183-20170

CT190..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78401 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-20060

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78407 - ARM SUB-ASSY, THROTTLE CONTROL
78407-20051

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78407-20050

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010

CT19#..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90101-06019
90179-11007
90501-09092
90541-06008
91621-B0612
91651-40632
91651-B0614
96160-00400
96160-00600
