CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

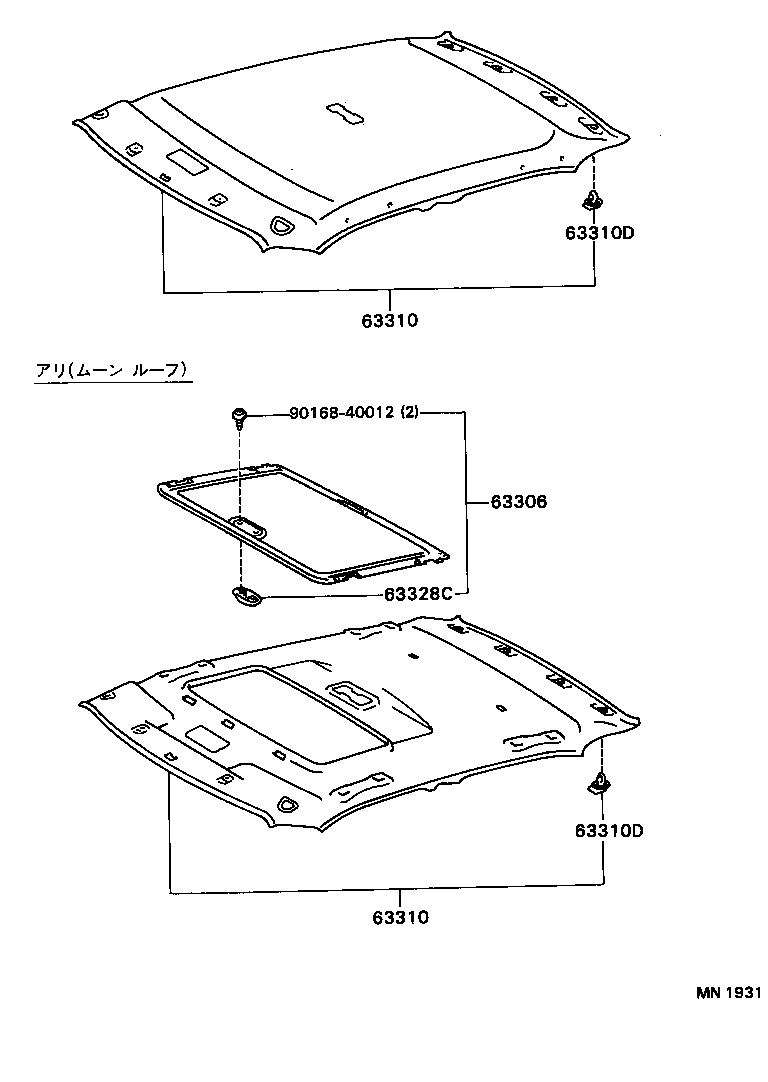

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310D 63328C 9016840012
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2B410E1

AT19#,CT19#,ST195..SG,SGI,SX,SXI

LT. ANTELOPE,TRIM4#

 1
63310-2B410B0

AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI

LIGHT GRAY,TRIM1#

 1
63310-2B570B0

AT19#,CT19#,ST195..SG,SGI,SL,SX,SXI

LIGHT GRAY,TRIM1#

 1
63310-2B410E0

AT19#,CT19#,ST19#..SG,SGI,SX,SXI

LIGHT ROSE,TRIM4#

 1
63310-2B570E0

AT19#,CT19#,ST195..SG,SGI,SX,SXI

LT. ANTELOPE,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-2B410E1

AT19#,CT19#,ST195..SG,SGI,SX,SXI

LT. ANTELOPE,TRIM4#

 1
63310-2B410B0

AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI

LIGHT GRAY,TRIM1#

 1
63310-2B570B0

AT19#,CT19#,ST195..SG,SGI,SL,SX,SXI

LIGHT GRAY,TRIM1#

 1
63310-2B410E0

AT19#,CT19#,ST19#..SG,SGI,SX,SXI

LIGHT ROSE,TRIM4#

 1
63310-2B570E0

AT19#,CT19#,ST195..SG,SGI,SX,SXI

LT. ANTELOPE,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-09126

AT19#,CT19#,ST19#

 4
63310D - CLIP, ROOF HEADLINING
90467-09126

AT19#,CT19#,ST19#

 4
Common parts
90168-40012
