CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

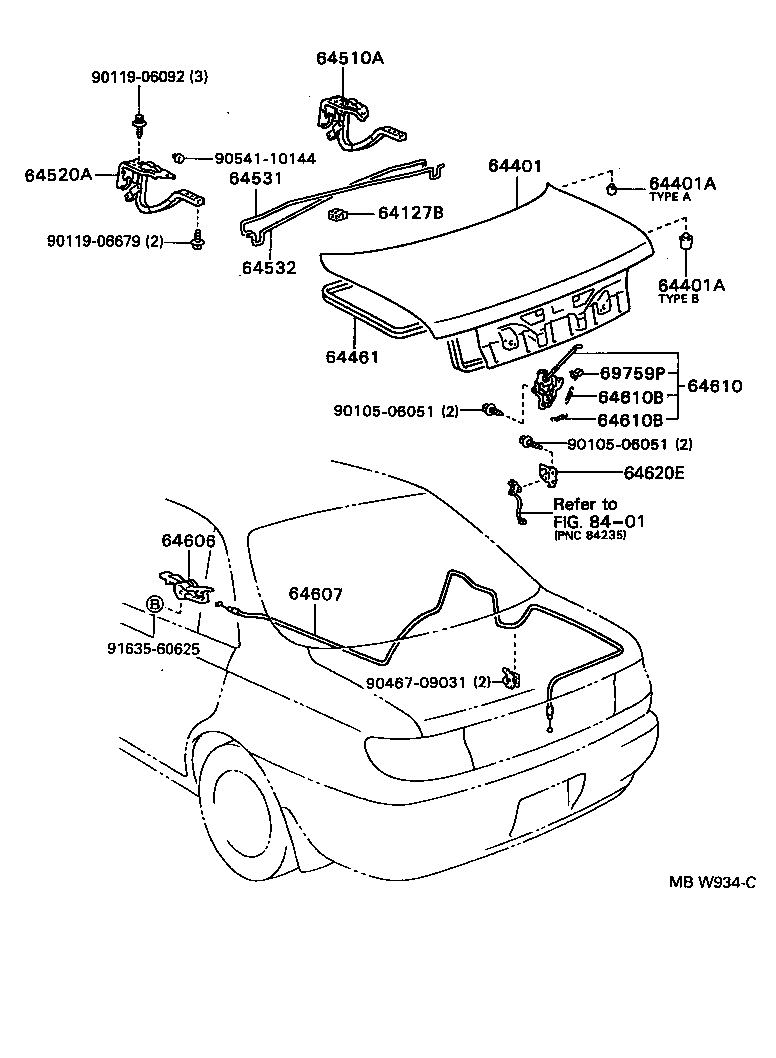

Click highlighted areas on diagram

diagram 64127B 64401 64401A 64401A 64461 64510A 64520A 64531 64532 64606 64607 64610 64610B 64610B 64620E 69759P 8401 9010506051 9010506051 9011906092 9011906679 9046709031 9054110144 9163560625
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-20120

AT19#,CT19#,ST19#

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-2B650

AT19#,CT19#,ST19#

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059

AT19#,CT19#,ST19#

ﾀｲﾌﾟ A

 2
90541-09043

AT19#,CT19#,ST19#

ﾀｲﾌﾟ B

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059

AT19#,CT19#,ST19#

ﾀｲﾌﾟ A

 2
90541-09043

AT19#,CT19#,ST19#

ﾀｲﾌﾟ B

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20370

AT19#,CT19#,ST19#

 1
64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20160

AT19#,CT19#,ST19#

 1
64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20150

AT19#,CT19#,ST19#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20470

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64531-20480

AT19#,CT19#,ST19#

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20470

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
64532-20480

AT19#,CT19#,ST19#

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20161

AT19#,CT19#,ST195

 1
64606-20160

AT19#,CT19#,ST19#

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20830

AT19#,CT19#,ST19#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20231

AT19#,CT19#,ST195

 1
64610-20230

AT19#,CT19#,ST19#

 1
64610B - SPRING, TENSION(FOR LOCK)
90506-05002

AT19#,CT19#,ST19#

線径=0.55,ｺｲﾙ巻数=17.25,L=21.2,WD=5.2

 1
90506-06009

AT19#,CT19#,ST195

 1
90506-06009

AT19#,CT19#,ST19#

L=21.0,WD=6.2

 1
64610B - SPRING, TENSION(FOR LOCK)
90506-05002

AT19#,CT19#,ST19#

線径=0.55,ｺｲﾙ巻数=17.25,L=21.2,WD=5.2

 1
90506-06009

AT19#,CT19#,ST195

 1
90506-06009

AT19#,CT19#,ST19#

L=21.0,WD=6.2

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621-12060

AT19#,CT19#,ST19#

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20110

AT19#,CT19#,ST19#

 1
Common parts
90105-06051
90119-06092
90119-06679
90467-09031
90541-10144
91635-60625
Linked diagrams
8401
