CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

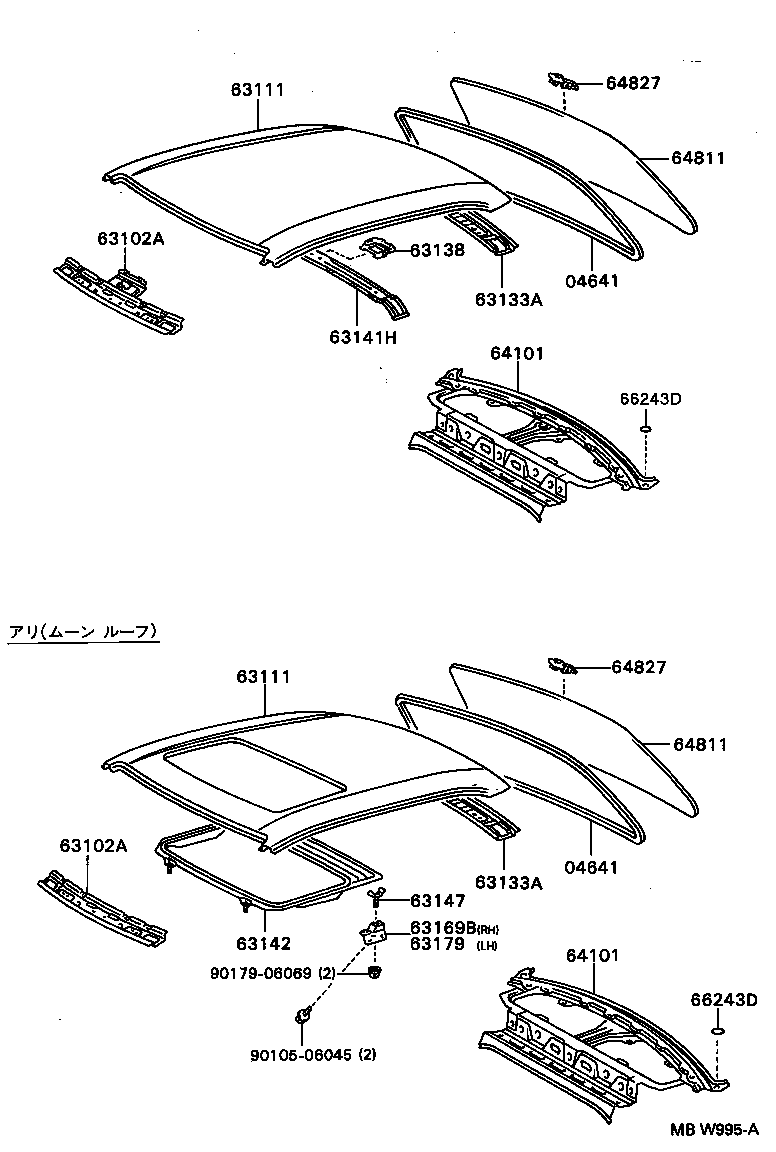

ILLUST NO. 1 OF 2(9208- )

Click highlighted areas on diagram

diagram 04641 04641 63102A 63102A 63111 63111 63133A 63133A 63138 63141H 63142 63147 63169B 63179 64101 64101 64811 64811 64827 64827 66243D 66243D 9010506045 9017906069
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
64813-20120

AT19#,CT19#,ST19#

 1
04641 - DAM KIT, BACK WINDOW GLASS
64813-20120

AT19#,CT19#,ST19#

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20260

AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20260

AT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI

 1
63111 - PANEL, ROOF
63111-20490

AT19#,CT19#,ST19#

 1
63111 - PANEL, ROOF
63111-20490

AT19#,CT19#,ST19#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20210

AT19#,CT19#,ST19#

 1
63133A - FRAME, BACK WINDOW, UPPER
63133-20210

AT19#,CT19#,ST19#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20170

AT19#,CT19#,ST19#

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20700

AT19#,CT19#,ST195..SG,SGI

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ)

 1
64101-20710

AT19#,CT19#,ST195..SG,SGI

 1
64101-20700

AT19#,CT19#,ST195..SG,SGI,SX,SXI

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20700

AT19#,CT19#,ST195..SG,SGI

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ)

 1
64101-20710

AT19#,CT19#,ST195..SG,SGI

 1
64101-20700

AT19#,CT19#,ST195..SG,SGI,SX,SXI

 1
64811 - GLASS, BACK WINDOW
64811-2B610

AT19#,CT19#,ST19#..SG,SGI,SX

*EHT,厚さ=3.1,ﾌﾞﾙｰ

 1
64811-2B690

AT19#,CT19#,ST195..SG,SGI

*EHT,厚さ=3.1,ｸﾞﾚｰ

 1
64811-2D180

AT19#,CT19#,ST195..SG,SGI,SX,SXI

*EHT,厚さ=3.5,ﾌﾞﾙｰ

 1
64811-2B680

CT190..SG

*EHT,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ﾏｲﾛ-ﾄﾞ

 1
64811 - GLASS, BACK WINDOW
64811-2B610

AT19#,CT19#,ST19#..SG,SGI,SX

*EHT,厚さ=3.1,ﾌﾞﾙｰ

 1
64811-2B690

AT19#,CT19#,ST195..SG,SGI

*EHT,厚さ=3.1,ｸﾞﾚｰ

 1
64811-2D180

AT19#,CT19#,ST195..SG,SGI,SX,SXI

*EHT,厚さ=3.5,ﾌﾞﾙｰ

 1
64811-2B680

CT190..SG

*EHT,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ﾏｲﾛ-ﾄﾞ

 1
64827 - CLIP, BACK WINDOW GLASS, RH
64827-20030

AT19#,CT19#,ST195

 2
64827-20020

AT19#,CT19#,ST19#

 2
64827 - CLIP, BACK WINDOW GLASS, RH
64827-20030

AT19#,CT19#,ST195

 2
64827-20020

AT19#,CT19#,ST19#

 2
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AT19#,CT19#,ST19#

 4
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

AT19#,CT19#,ST19#

 4
Common parts
90105-06045
90179-06069

ILLUST NO. 2 OF 2(9208- )

Click highlighted areas on diagram

diagram 63201G 63203F 63204A 63207 63208 63209 63214F 63215A 63217G 63218G 63218H 63219A 63221 63223 63224 63227C 63228C 63241A 63242A 63245D 63246D 6324920210 63251H 63252D 63259B 63260A 63265B 63267A 63268A 63277C 63277C 63625 63626 63635A 63699A 9011906390 9014940022 9015440011 9015440011 9016250004 9016250004 9016840084 9017906070 9017906083 9017906115 9017906115 9018905058 9046312014 9046714001 9046714001 9046804128 9046806088 9048026022 9053030002 9095001866 9166140616 9166640616 9322914008 9338516016 9338516016 9338516020 9338616025 9356014008 9616000400
Part # Description Qty Price
Common parts
63249-20210
90119-06390
90149-40022
90154-40011
90162-50004
90168-40084
90179-06070
90179-06083
90179-06115
90189-05058
90463-12014
90467-14001
90468-04128
90468-06088
90480-26022
90530-30002
90950-01866
91661-40616
91666-40616
93229-14008
93385-16016
93385-16020
93386-16025
93560-14008
96160-00400
