CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

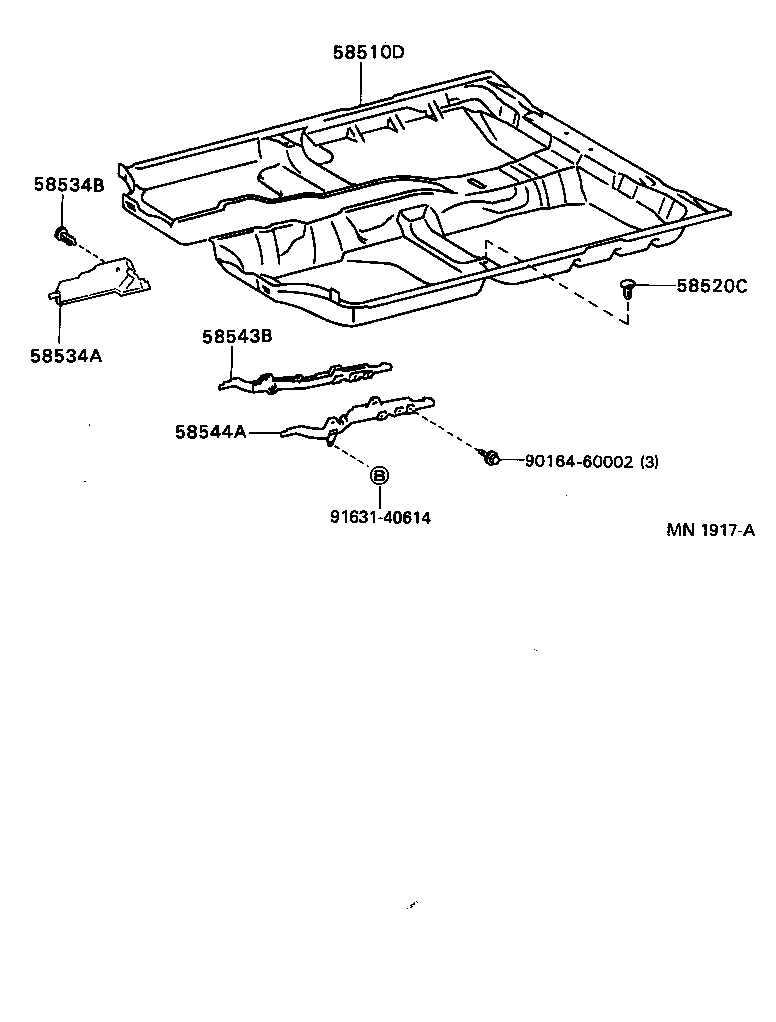

Click highlighted areas on diagram

diagram 58510D 58520C 58534A 58534B 58543B 58544A 9016460002 9163140614
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-2D510E0

AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ,ROSE,TRIM4#

 1
58510-2D500E0

AT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI

ROSE,TRIM4#

 1
58510-2D500B0

AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI

GRAY,TRIM1#

 1
58510-2D510B0

AT19#,CT19#,ST19#..SE,SG,SGI,SL,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#

 1
58510-2D500E0

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

ROSE,TRIM4#

 1
58510-2D510E1

AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ,ANTELOPE,TRIM4#

 1
58510-2D500B1

AT19#,CT19#,ST19#

SHADOW GRAY,TRIM1#

 1
58510-2D500B0

AT19#,CT19#,ST19#

GRAY,TRIM1#

 1
58510-2D500B2

AT19#,CT19#,ST195

SHADOW GRAY,TRIM1#

 1
58510-2D510B0

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY,TRIM1#

 1
58510-2D500E1

AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI

ANTELOPE,TRIM4#

 1
58510-2D510E0

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

ｶﾝﾚｲﾁ ｼﾖｳ,ROSE,TRIM4#

 1
58510-2D510B1

AT19#,CT19#,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
58510-2D510B2

AT19#,CT19#,ST195

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06016P0

AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI

GRAY,TRIM1#,4#

 2
90467-06016P0

AT19#,CT19#,ST19#

GRAY,TRIM1#

 2
58534A - MAT, TRANSMISSION COVER
58534-20010

AT19#,CT19#,ST195..SG,SGI,SX,SXI

 1
58534B - CLIP(FOR FLOOR CARPET CENTER COVER)
90467-07042C0

AT19#,CT19#,ST195..SG,SGI,SX,SXI

BLACK,TRIM1#,4#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-20050

AT19#,CT19#,ST19#

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-20050

AT19#,CT19#,ST19#

 1
Common parts
90164-60002
91631-40614
