CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

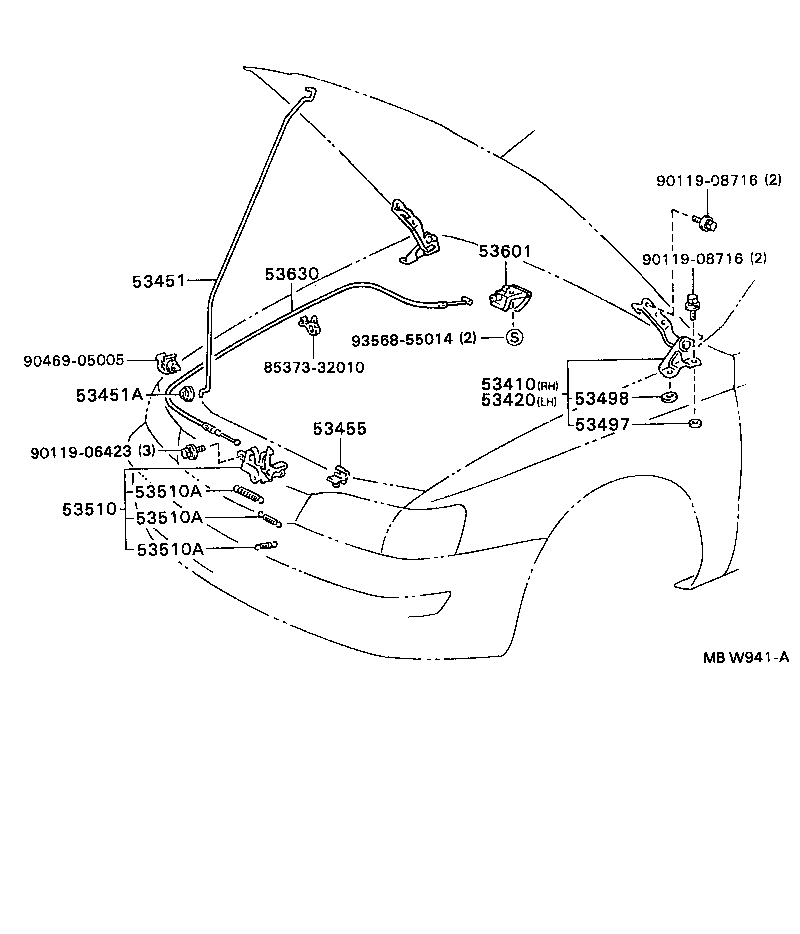

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53498 53510 53510A 53510A 53510A 53601 53630 8537332010 9011906423 9011908716 9011908716 9046905005 9356855014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-20190

AT19#,CT19#,ST19#

 1
53420 - HINGE ASSY, HOOD, LH
53420-20180

AT19#,CT19#,ST19#

 1
53451 - ROD, HOOD SUPPORT
53451-20130

CT19#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15024

AT19#,CT19#,ST19#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-20040

AT19#,CT19#,ST19#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12050

AT19#,CT19#,ST19#

厚さ=1.0

 2
53498 - PAD, HOOD HINGE, NO.2
53497-12050

AT19#,CT19#,ST19#

 2
53510 - LOCK ASSY, HOOD
53510-20430

AT19#,CT19#,ST19#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20065

AT19#,CT19#,ST19#

線径=2.0,ｺｲﾙ巻数=16.0,WD=2.0,CW=16.0

 1
90506-12067

AT19#,CT19#,ST19#

線径=1.4,ｺｲﾙ巻数=7.25,WD=1.4,CW=7.25

 1
90506-09057

AT19#,CT19#,ST19#

線径=0.9,ｺｲﾙ巻数=23,WD=0.9,CW=23

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20065

AT19#,CT19#,ST19#

線径=2.0,ｺｲﾙ巻数=16.0,WD=2.0,CW=16.0

 1
90506-12067

AT19#,CT19#,ST19#

線径=1.4,ｺｲﾙ巻数=7.25,WD=1.4,CW=7.25

 1
90506-09057

AT19#,CT19#,ST19#

線径=0.9,ｺｲﾙ巻数=23,WD=0.9,CW=23

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20065

AT19#,CT19#,ST19#

線径=2.0,ｺｲﾙ巻数=16.0,WD=2.0,CW=16.0

 1
90506-12067

AT19#,CT19#,ST19#

線径=1.4,ｺｲﾙ巻数=7.25,WD=1.4,CW=7.25

 1
90506-09057

AT19#,CT19#,ST19#

線径=0.9,ｺｲﾙ巻数=23,WD=0.9,CW=23

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-16020E1

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

DARK ROSE,TRIM4#

 1
53601-16020B1

AT19#,CT19#,ST19#

LIGHT GRAY,TRIM1#

 1
53601-1602022

AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI

BLACK,TRIM1#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-20440

AT19#,CT19#,ST19#

 1
Common parts
85373-32010
90119-06423
90119-08716
90469-05005
93568-55014
