CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )2C

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

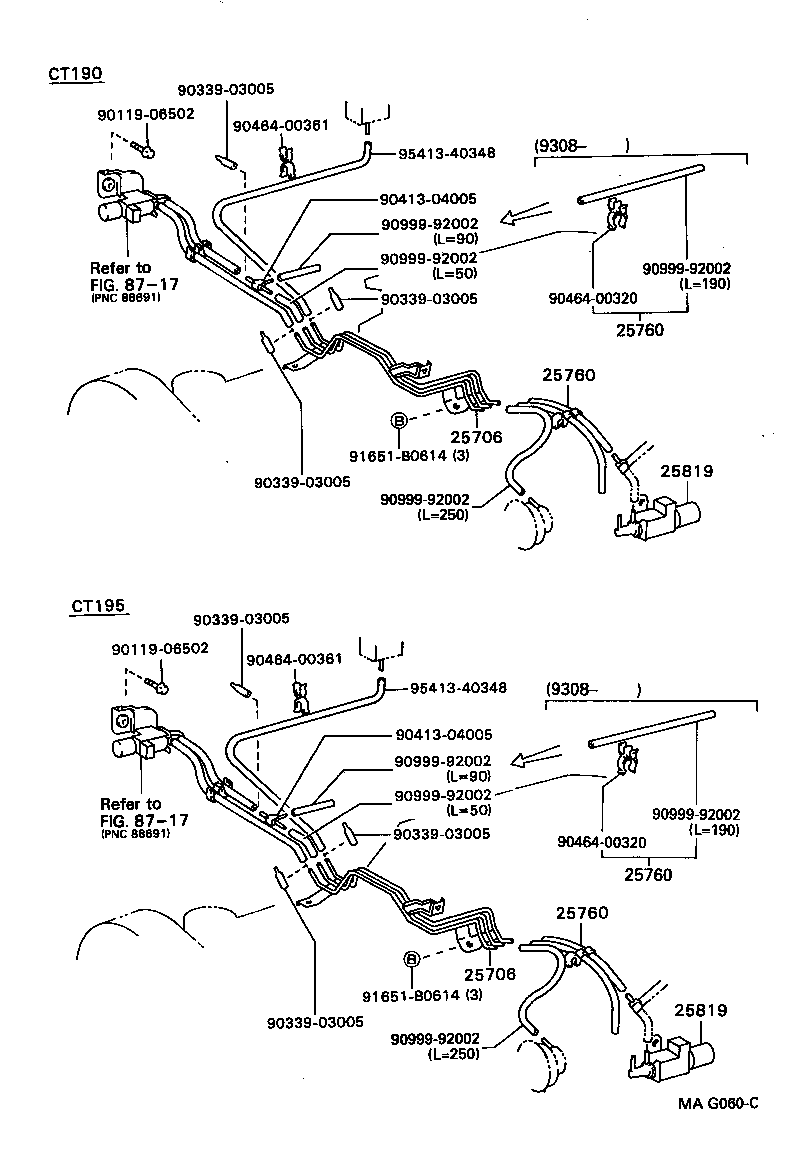

(9208- )2C

Click highlighted areas on diagram

diagram 25706 25706 25760 25760 25760 25760 25819 25819 8717 8717 9011906502 9011906502 9033903005 9033903005 9033903005 9033903005 9033903005 9033903005 9041304005 9041304005 9046400320 9046400320 9046400361 9046400361 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91651B0614 91651B0614 9541340348 9541340348
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-64070

2C..CT19#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-64070

2C..CT19#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64060

2C..CT19#

 1
25760-64130

2C..CT19#

3 WAY X VACUUM PUMP

 1
25760-64130

2C..CT19#..MTM

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64060

2C..CT19#

 1
25760-64130

2C..CT19#

3 WAY X VACUUM PUMP

 1
25760-64130

2C..CT19#..MTM

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64060

2C..CT19#

 1
25760-64130

2C..CT19#

3 WAY X VACUUM PUMP

 1
25760-64130

2C..CT19#..MTM

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64060

2C..CT19#

 1
25760-64130

2C..CT19#

3 WAY X VACUUM PUMP

 1
25760-64130

2C..CT19#..MTM

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-64030

2C..CT19#

 1
90910-12089

2C..CT19#..MTM

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-64030

2C..CT19#

 1
90910-12089

2C..CT19#..MTM

 1
Common parts
90119-06502
90339-03005
90413-04005
90464-00320
90464-00361
90999-92002
91651-B0614
95413-40348
Linked diagrams
8717
