CT190-CEMNS (1992)

Toyota Carina Ff

Production Aug 1992 - Aug 1996
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )2C..CT190

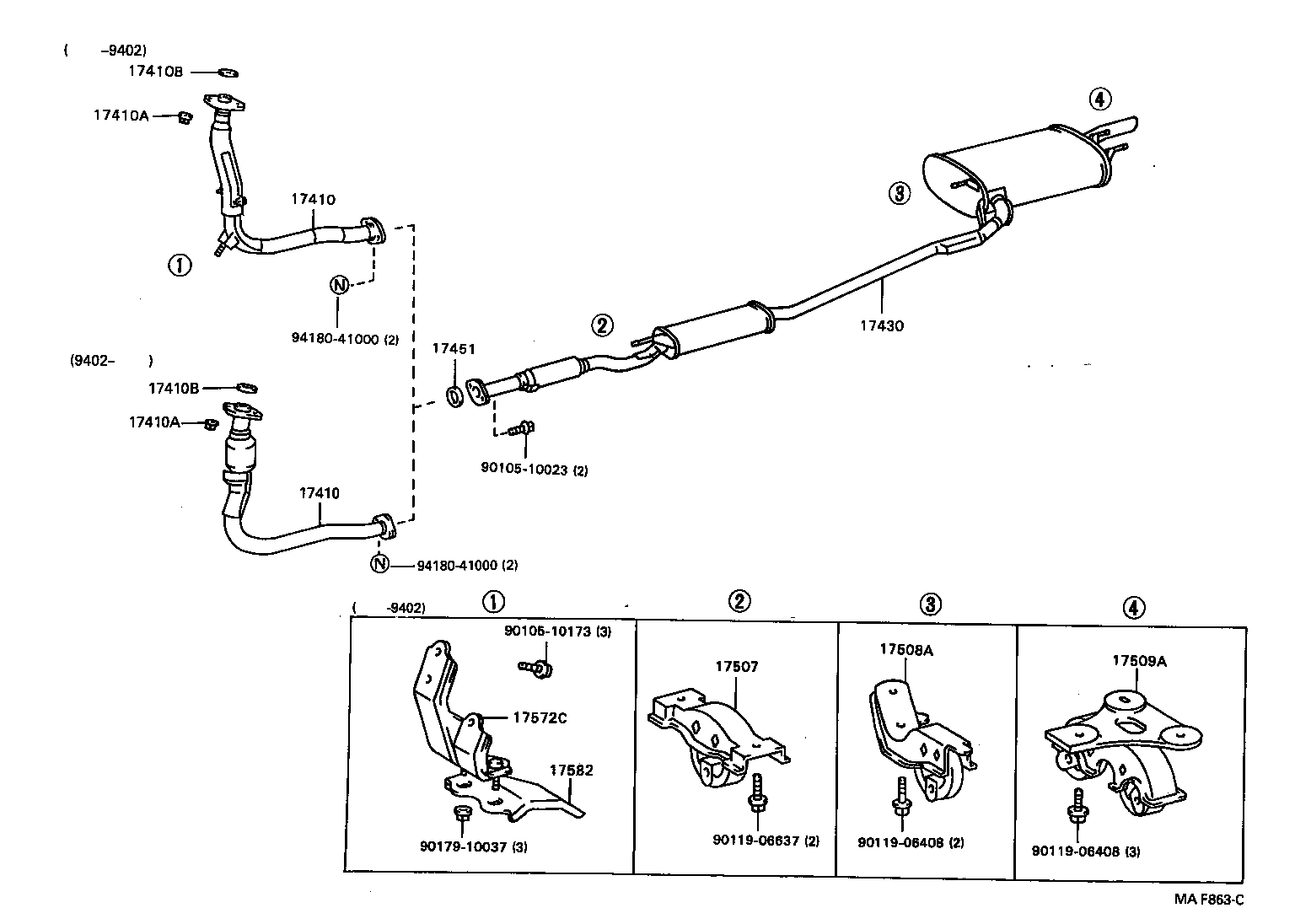

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17430 17451 17507 17508A 17509A 17572C 17582 9010510023 9010510173 9011906408 9011906408 9011906637 9017910037 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64571

2C..CT190

 1
17410-64620

2C..CT190

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64571

2C..CT190

 1
17410-64620

2C..CT190

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5AFE,2C..AT192,CT19#

 2
90179-10070

4AFE,5AFE,2C..AT19#,CT19#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

5AFE,2C..AT192,CT19#

 2
90179-10070

4AFE,5AFE,2C..AT19#,CT19#

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2C..CT19#

 1
17410B - GASKET, EXHAUST PIPE
90917-06061

2C..CT19#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A020

2C..CT190

 1
17430-64750

2C..CT190

 1
17451 - GASKET, EXHAUST PIPE
90917-06048

2C..CT19#

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-64040

2C..CT190

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74030

4AFE,5AFE,7AFE,2C,4SFE..AT19#,CT190,ST190

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74110

4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64230

2C..CT190

 1
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17582-64040

2C..CT190

 1
Common parts
90105-10023
90105-10173
90119-06408
90119-06637
90179-10037
94180-41000
