CT176V-CXMNS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )CT17#

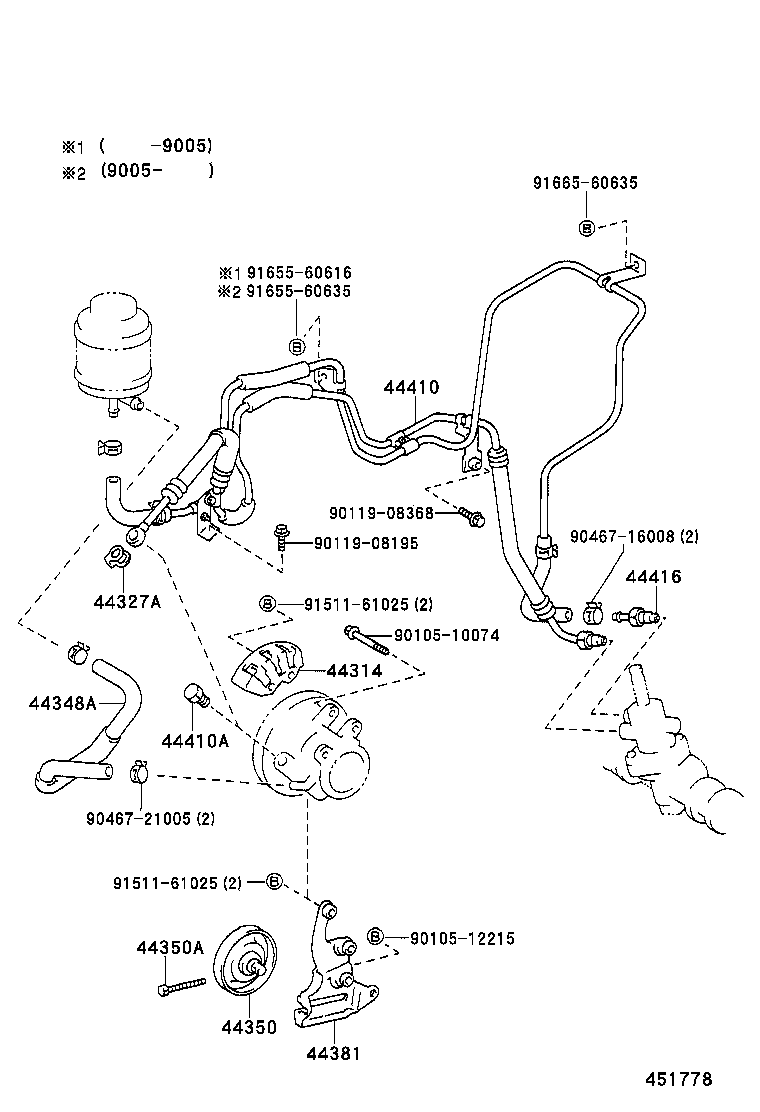

Click highlighted areas on diagram

diagram 44314 44327A 44348A 44350 44350A 44381 44410 44410A 44416 9010510074 9010512215 9011908195 9011908368 9046716008 9046721005 9151161025 9151161025 9165560616 9165560635 9166560635
Part # Description Qty Price
44314 - COVER, PULLEY
44314-12010

CT17#

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT17#,CT17#,ET176,ST170

 1
44327-12010

CT170..SED;AT17#,ET176,ST170;CT17#..(VAN,WG)..5F

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-20160

CT17#

 1
44348-20160

CT170..SED;CT17#..(VAN,WG)..5F

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12051

CT17#

 1
44350-12050

CT17#

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90109-08106

CT17#

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-12020

CT17#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-20400

CT17#

 1
44410-20650

CT170..SED;CT17#..(VAN,WG)..5F

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX

 1
90401-16008

CT170..SED;CT17#..(VAN,WG)..5F;AT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20110

CT17#..(VAN,WG)..5F;AT171,CT170,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SX

 1
44416-20110

AT171,CT17#,ET176,ST170..DX,GLIM,SE,SG,SGEXT,STD,SX

 1
Common parts
90105-10074
90105-12215
90119-08195
90119-08368
90467-16008
90467-21005
91511-61025
91655-60616
91655-60635
91665-60635
