CT176V-CXMDS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )CT176,ET176

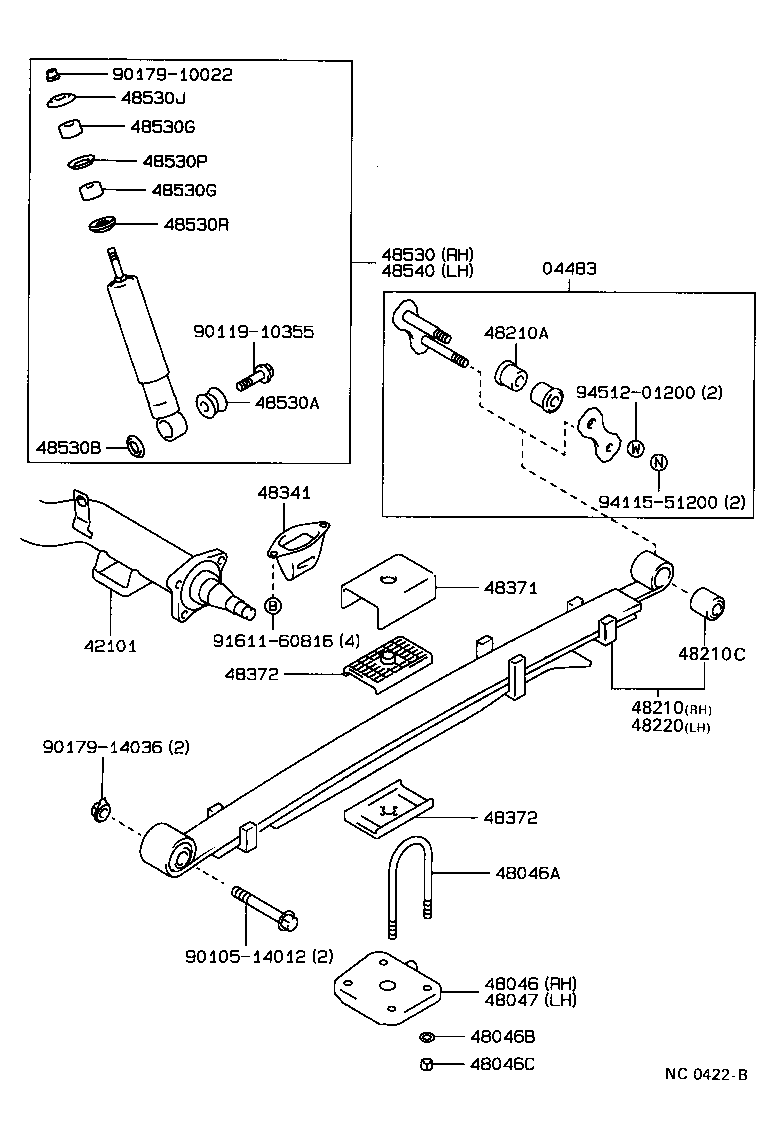

Click highlighted areas on diagram

diagram 04483 42101 48046 48046A 48046B 48046C 48047 48210 48210A 48210C 48220 48341 48371 48372 48372 48530 48530A 48530B 48530G 48530G 48530J 48530P 48530R 48540 9010514012 9011910355 9017910022 9017914036 9161160816 9411551200 9451201200
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-21060

CT176,ET176

 2
42101 - TUBE SUB-ASSY, REAR AXLE
42101-21080

CT176,ET176

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-21030

CT176,ET176..3FC,4F,5F

 1
48046-21030

CT176,ET176

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-10010

CT176,ET176..3FC,4F,5F

長さ=143

 4
90117-10010

CT176,ET176

長さ=143

 4
48046B - WASHER(FOR REAR SPRING U BOLT)
94621-11000

CT176,ET176

 8
94621-11000

CT176,ET176..3FC,4F,5F

 8
48046C - NUT(FOR REAR SPRING U BOLT)
90170-10022

CT176,ET176..3FC,4F,5F

 8
90170-10022

CT176,ET176

 8
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-21030

CT176,ET176

 1
48047-21030

CT176,ET176..3FC,4F,5F

 1
48210 - SPRING ASSY, REAR RH
48210-20460

CT176,ET176..MTM..DX

TECS ﾊｲﾙ-ﾌ ｸ-ﾘﾝｸﾞ ﾊﾞﾝ

 1
48210-21250

CT176,ET176

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15003

CT176,ET176

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-12010

CT176,ET176

ﾘﾔ

 2
90389-14035

CT176,ET176

ﾌﾛﾝﾄ

 2
48220 - SPRING ASSY, REAR LH
48210-21250

CT176,ET176

 1
48341 - BUMPER, REAR SPRING
48341-21010

CT176,ET176..3FC,4F,5F

 2
48341-21010

CT176,ET176

 2
48371 - RETAINER, REAR SPRING PAD
48371-21070

CT176,ET176..3FC,4F,5F

 2
48371-21070

CT176,ET176

 2
48371-20200

CT176,ET176..MTM..DX

TECS ﾊｲﾙ-ﾌ ｸ-ﾘﾝｸﾞ ﾊﾞﾝ

 2
48372 - PAD, REAR SPRING
48372-28010

CT176,ET176

 4
48372-20060

CT176,ET176..MTM..DX

TECS ﾊｲﾙ-ﾌ ｸ-ﾘﾝｸﾞ ﾊﾞﾝ

 4
48372-28010

CT176,ET176..3FC,4F,5F

 4
48372 - PAD, REAR SPRING
48372-28010

CT176,ET176

 4
48372-20060

CT176,ET176..MTM..DX

TECS ﾊｲﾙ-ﾌ ｸ-ﾘﾝｸﾞ ﾊﾞﾝ

 4
48372-28010

CT176,ET176..3FC,4F,5F

 4
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80205

CT176,ET176..MTM..DX

TECS ﾊｲﾙ-ﾌ ｸ-ﾘﾝｸﾞ ﾊﾞﾝ

 1
48531-80200

CT176,ET176

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

CT176,ET176

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

CT176,ET176

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

CT176,ET176

下側

 2
90540-10005

CT176,ET176

上側

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

CT176,ET176

下側

 2
90540-10005

CT176,ET176

上側

 2
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02045

CT176,ET176

 2
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02007

CT176,ET176

 2
48530R - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER)
90948-02002

CT176,ET176

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80200

CT176,ET176

 1
48531-80205

CT176,ET176..MTM..DX

TECS ﾊｲﾙ-ﾌ ｸ-ﾘﾝｸﾞ ﾊﾞﾝ

 1
Common parts
90105-14012
90119-10355
90179-10022
90179-14036
91611-60816
94115-51200
94512-01200
