CT176V-CXMDS (1988)

Toyota Carina Ff

Production May 1988 - Nov 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )2C

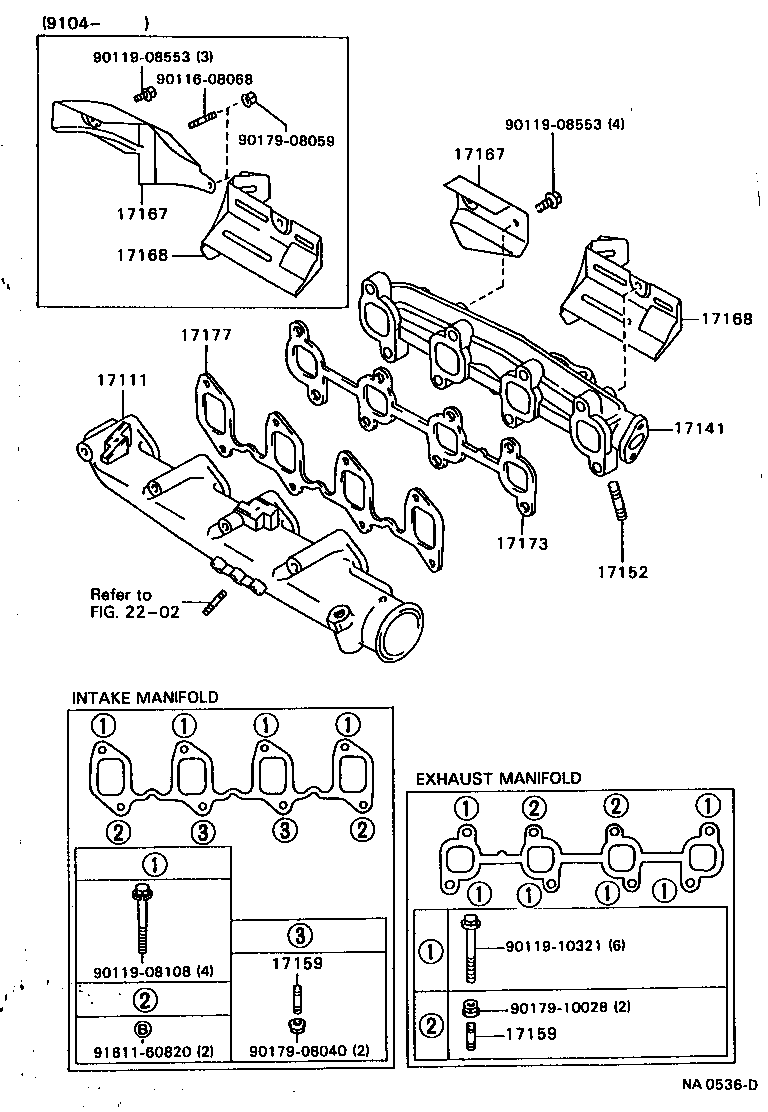

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17167 17168 17168 17173 17177 2202 9011608068 9011908108 9011908553 9011908553 9011910321 9017908040 9017908059 9017910028 9161160820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-64090

2C..CT17#..5F

 1
17111-64150

2C..CT176

 1
17111-64150

2C..CT176;2C..CT170..5F

 1
17141 - MANIFOLD, EXHAUST
17141-64101

2C..CT176

 1
17141-64101

2C..CT176;2C..CT170..5F

 1
17141-64100

2C..CT17#..5F

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

2C..CT17#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10095

2C..CT17#

EXHAUST MANIFOLD

 2
90116-10095

2C..CT17#

 2
92122-60820

2C..CT17#

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10095

2C..CT17#

EXHAUST MANIFOLD

 2
90116-10095

2C..CT17#

 2
92122-60820

2C..CT17#

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64031

2C..CT176

 1
17167-64031

2C..CT17#

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64031

2C..CT176

 1
17167-64031

2C..CT17#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64050

2C..CT17#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64050

2C..CT17#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64060

2C..CT17#

 1
17173-64020

2C..CT17#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64010

2C..CT17#

 1
17177-64020

2C..CT17#

 1
17177-64020

2C..CT176;2C..CT170..5F

 1
17177-64020

2C..CT17#

 1
Common parts
90116-08068
90119-08108
90119-08553
90119-10321
90179-08040
90179-08059
90179-10028
91611-60820
Linked diagrams
2202
