CT170-CEPNS (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

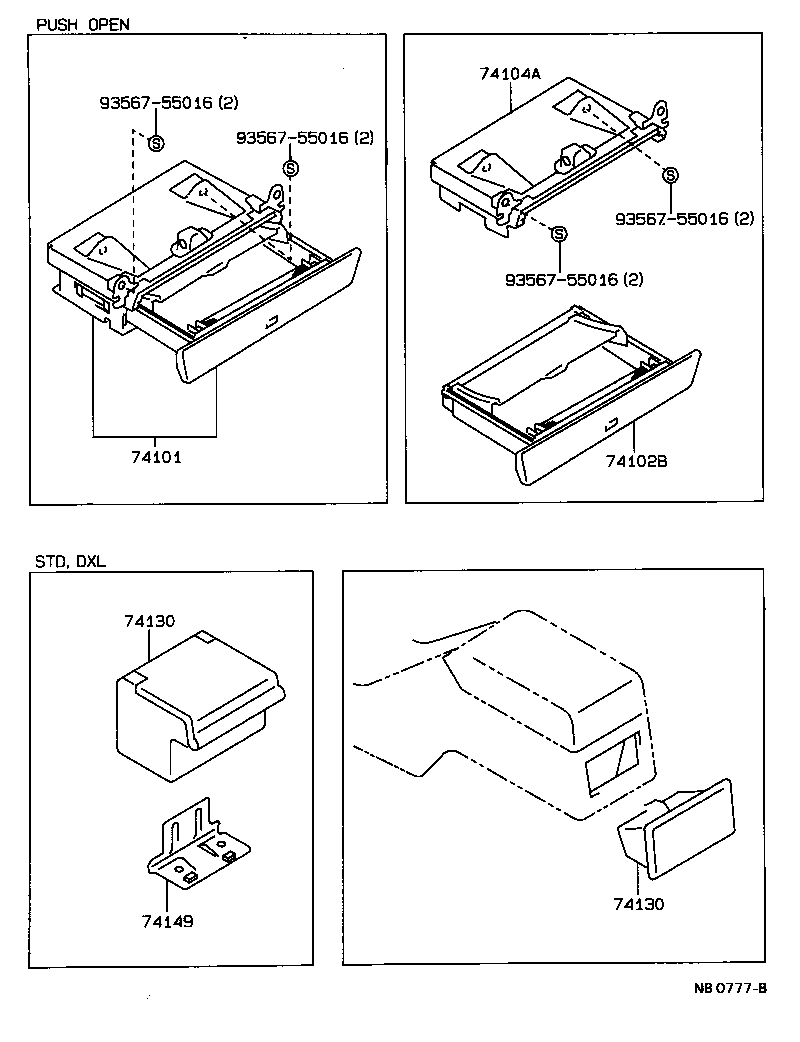

Click highlighted areas on diagram

diagram 74101 74102B 74104A 74130 74130 74149 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
74101 - RECEPTACLE SUB-ASSY, FRONT ASH
74101-2008001

AT17#,CT170,ST170..S,SE,SGEXT

BLACK,TRIM1#,4#,8#

 1
74101-2008001

CT170..SG

ﾏｲ ﾛ-ﾄﾞ,BLACK,TRIM1#,4#,8#

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-2018001

AT170,175,CT170..SG

BLACK,TRIM1#,4#,8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-20220

AT170,175,CT17#,ET176..DX,SG,STD,SV

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-2007004

AT17#,CT170,ST170..S,SE,SG,SGEXT

BLUE,TRIM8#

 1
74109-2007006

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 1
74109-2007014

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 1
74109-2007003

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

GRAY,TRIM1#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-2007004

AT17#,CT170,ST170..S,SE,SG,SGEXT

BLUE,TRIM8#

 1
74109-2007006

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

SABLE,TRIM4#

 1
74109-2007014

AT17#,CT170,ST170..S,SE,SG,SGEXT

DARK BLUE,TRIM8#

 1
74109-2007003

AT17#,CT17#,ET176,ST170..GLIM,S,SE,SG,SGEXT,SV,SX

GRAY,TRIM1#

 1
Common parts
93567-55016
