CT170-CEPNS (1988)
Toyota Carina Ff

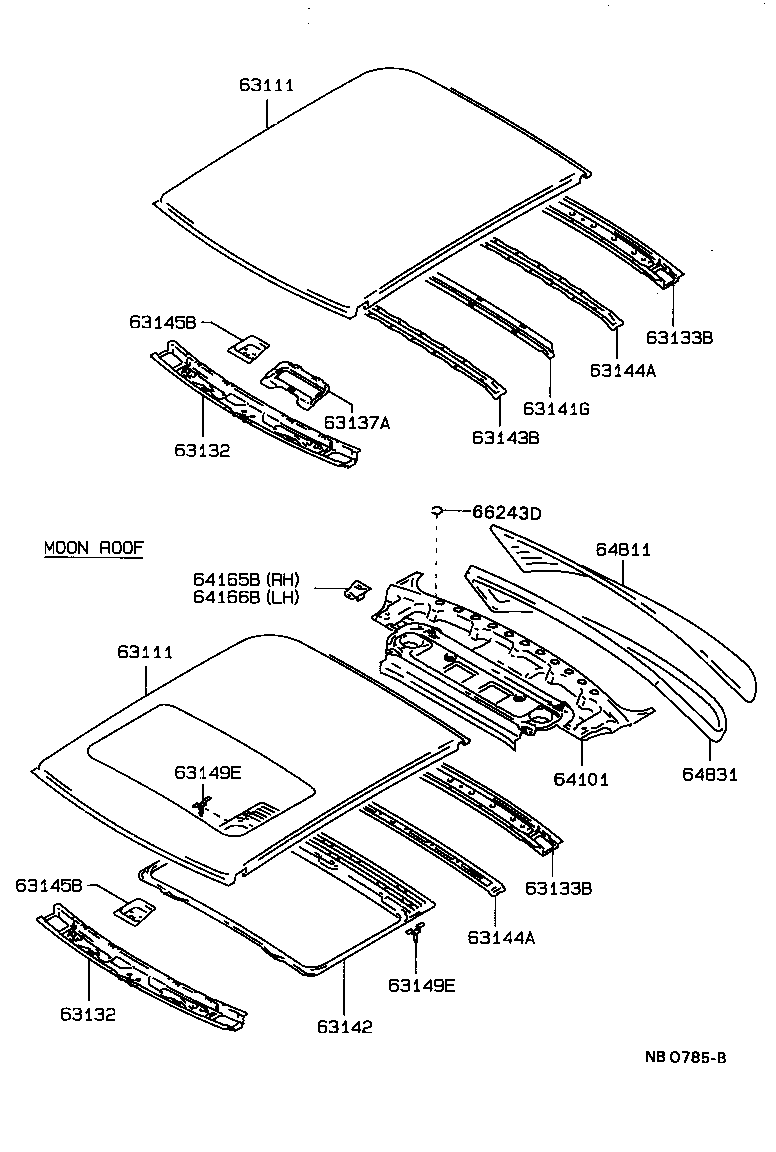

ILLUST NO. 1 OF 2(8805- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-20360 |
ST170..SED;AT170,171,CT170..GLIM,S,SE ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20350 |
AT17#,CT170,ST170..SED |
1 | ||
| 63111-20360 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20360 |
ST170..SED;AT170,171,CT170..GLIM,S,SE ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20350 |
AT17#,CT170,ST170..SED |
1 | ||
| 63111-20360 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-20130 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-20130 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-20160 |
AT17#,CT170,ST170..SED |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-20160 |
AT17#,CT170,ST170..SED |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-20050 |
AT171,175,CT170,ST170..GLIM,SE |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-20100 |
AT17#,CT170,ST170..DX,S,SE,SG,SGEXT |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30030 |
ST170..SGEXT;AT175,CT170..SE,SGEXT;AT170,171..GLIM,S,SE,SG |
1 | ||
| 63142-30030 |
ST170..SGEXT;AT170,171,CT170..GLIM,S,SE |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-20070 |
AT17#,CT170,ST170..SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-20010 |
AT17#,CT170,ST170..SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-20010 |
AT17#,CT170,ST170..SED |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-20070 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-20070 |
AT17#,CT17#,ET176,ST170 |
1 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-30030 |
ST170..SGEXT,SX;AT175,CT170..SE,SGEXT;AT170,171..GLIM,S,SE,SG,SV |
2 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-30030 |
ST170..SGEXT,SX;AT175,CT170..SE,SGEXT;AT170,171..GLIM,S,SE,SG,SV |
2 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20390 |
AT17#,CT170,ST170..DX,S,SE,SG,SGEXT |
1 | ||
| 64101-20600 |
AT170,171,CT170,ST170..GLIM,SE ｱﾘ(ﾊﾟﾂｹ-ｼﾞﾄﾚｲﾂﾞｹ ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 64101-20390 |
AT175;AT170,171,CT170,ST170..DX,S,SG,SGEXT |
1 | ||
| 64101-20400 |
AT170,171,CT170,ST170..GLIM,SE |
1 | ||
| 64101-20610 |
AT175;AT170,171,CT170,ST170..S,SG,SGEXT ｱﾘ(ﾊﾟﾂｹ-ｼﾞﾄﾚｲﾂﾞｹ ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-20050 |
AT17#,CT170,ST170..SED |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-20040 |
AT17#,CT170,ST170..SED |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-20850 |
ST170..SGEXT;AT17#,CT170..DX,S,SG *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-2B050 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT *EHTT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 64811-20870 |
CT170..SG *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-20860 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-20860 |
AT17#,CT170,ST170..GLIM,SE *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-20850 |
AT17#,CT170,ST170..DX,S,SG,SGEXT *EHTT,厚さ=4.0,ﾌﾞﾙｰ |
1 | ||
| 64811-2B050 |
AT17#,CT170,ST170..GLIM,SE *EHTT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 64811-20880 |
AT17#,CT170,ST170..GLIM,SE *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-20870 |
CT170..SG *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-20880 |
ST170..SE;AT17#,CT170..GLIM,SE,SGEXT *EHTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-2B040 |
CT170..SG *EHTT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 64811-2B040 |
CT170..SG *EHTT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-20100 |
AT17#,CT170,ST170..SED |
1 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 53393-12020 |
AT17#,CT170,ST170..SED |
2 | ||

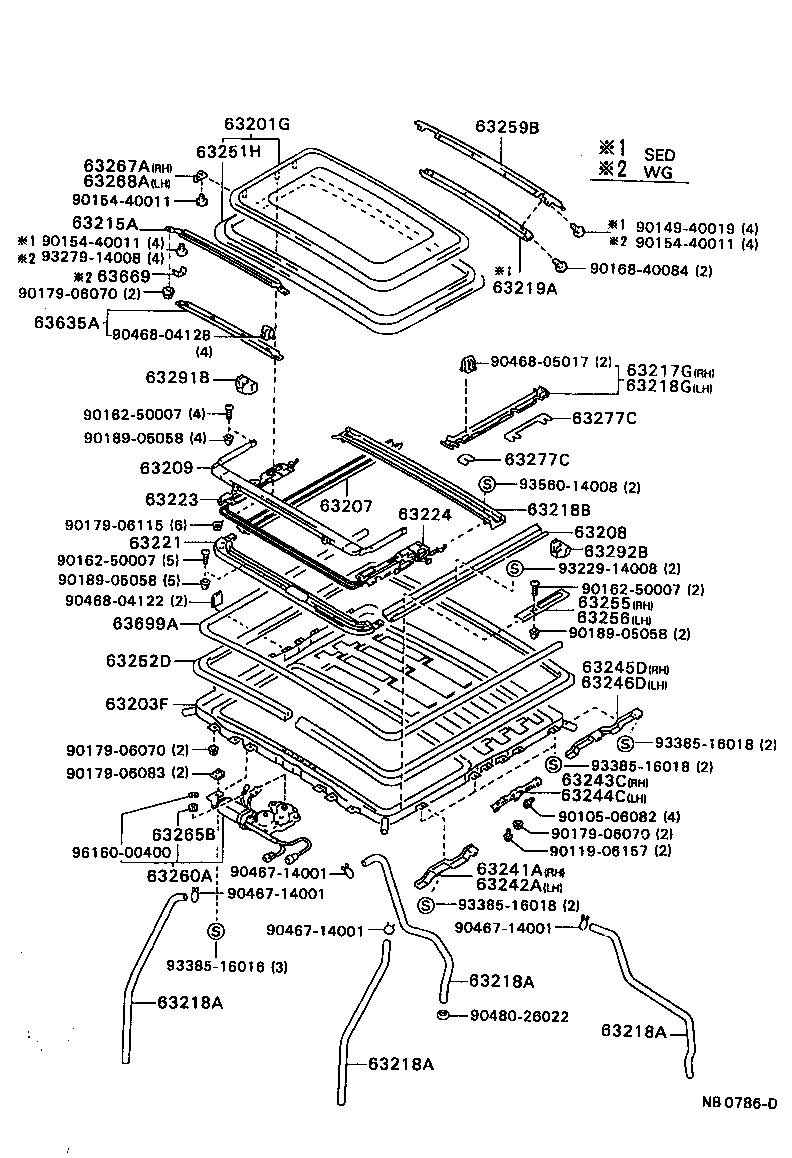

ILLUST NO. 2 OF 2(8805- )AT17#,CT170,ST170
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-20060 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63201-20061 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63201-20110 |
ST170..SED;AT170,171,CT170..GLIM,S,SE *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63201-20070 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63201-20070 |
ST170..SED;AT170,171,CT170..GLIM,S,SE *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-20070 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT |
1 | ||
| 63209-20050 |
ST170..SED;AT170,171,CT170..GLIM,S,SE |
1 | ||
| 63215A - MOULDING, ROOF WINDOW, UPPER | ||||
| 63215-30020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-3003001 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95500 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX REAR |
2 | ||
| 63249-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95500 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX REAR |
2 | ||
| 63249-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX FRONT |
2 | ||
| 63249-95500 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-95500 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX REAR |
2 | ||
| 63249-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX FRONT |
2 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-30030 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-3004001 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..S,SE,SG,SGEXT BLACK,TRIM1#,4#,8# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-30030E0 |
ST170..SED;AT170,171,CT170..S,SE SABLE,TRIM4# |
1 | ||
| 63219-3003020 |
ST170..SED;AT170,171,CT170..GLIM,S,SE BLACK,TRIM1# |
1 | ||
| 63219-30030 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT |
1 | ||
| 63219-30030J0 |
ST170..SED;AT170,171,CT170..S,SE BLUE,TRIM8# |
1 | ||
| 63219-30030 |
ST170..SED;AT170,171,CT170..GLIM,S,SE |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20061 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63223-20062 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63223-20063 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63223-20060 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20062 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63224-20061 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63224-20060 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63224-20063 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-20040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-20020 |
ST170..SED;AT170,171,CT170..GLIM,S,SE |
1 | ||
| 63252-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63259B - HOLDER, SLIDING ROOF WEATHERSTRIP | ||||
| 63259-30040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT |
1 | ||
| 63259-30040 |
ST170..SED;AT170,171,CT170..GLIM,S,SE |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20051 |
ST170;AT170,171,CT170..GLIM,S,SE,SV |
1 | ||
| 63260-20051 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63260-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-30040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-30040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=2.0,T=2.0,124 X 30 |
1 | ||
| 63277-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=2.0,T=2.0,28 X 30 |
1 | ||
| 63277-20030 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=1.0,T=1.0,28 X 30 |
1 | ||
| 63277-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=1.0,T=1.0,124 X 30 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=2.0,T=2.0,124 X 30 |
1 | ||
| 63277-20050 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=2.0,T=2.0,28 X 30 |
1 | ||
| 63277-20030 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=1.0,T=1.0,28 X 30 |
1 | ||
| 63277-20020 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX 厚さ=1.0,T=1.0,124 X 30 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-30010 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| 63635-30010J0 |
ST170..SED;AT170,171,CT170..S,SE BLUE,TRIM8# |
1 | ||
| 63635-30010 |
ST170;AT170,171,CT170..GLIM,S,SE,SV |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12040 |
AT175,CT170..SE,SGEXT;AT170,171,ST170..GLIM,S,SE,SG,SGEXT,SV,SX |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90119-06157 | ||||
| 90149-40019 | ||||
| 90154-40011 | ||||
| 90162-50007 | ||||
| 90168-40084 | ||||
| 90179-06070 | ||||
| 90179-06083 | ||||
| 90179-06115 | ||||
| 90189-05058 | ||||
| 90467-14001 | ||||
| 90468-04122 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90480-26022 | ||||
| 93229-14008 | ||||
| 93279-14008 | ||||
| 93385-16016 | ||||
| 93385-16018 | ||||
| 93560-14008 | ||||
| 96160-00400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
