CT170-CEPES (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )AT170,171,CT17#,ET176,ST170

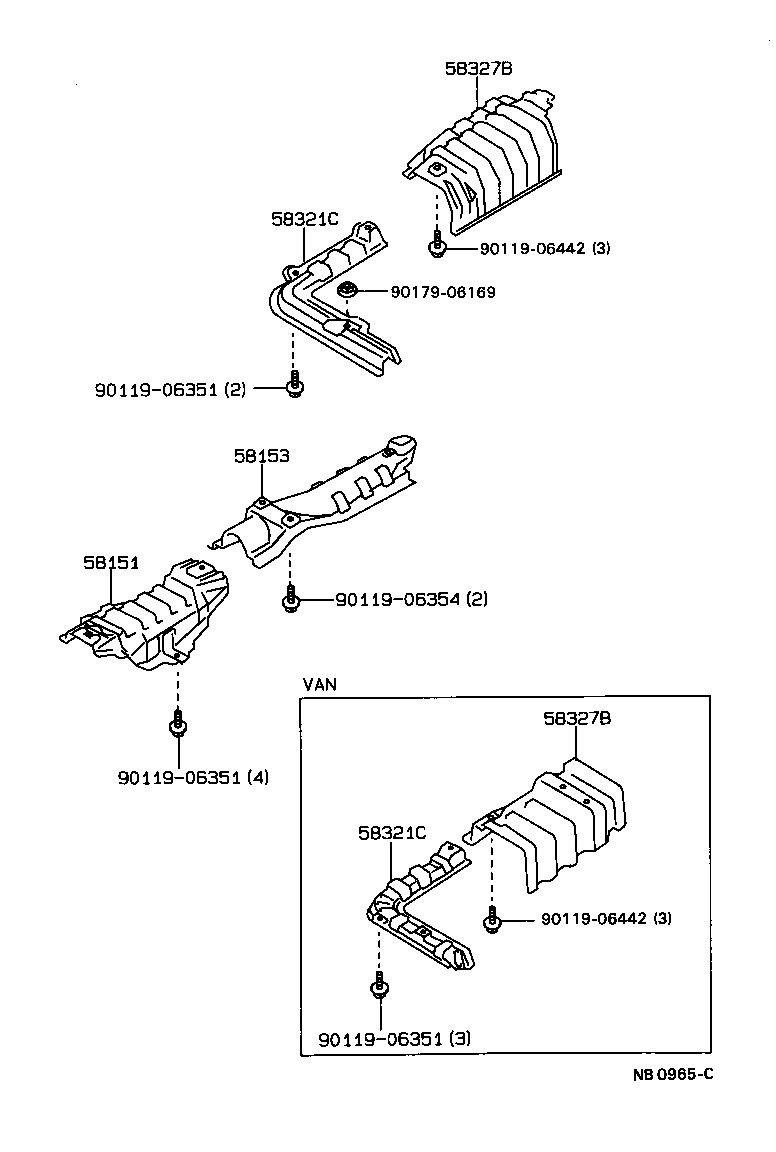

Click highlighted areas on diagram

diagram 58151 58153 58321C 58321C 58327B 58327B 9011906351 9011906351 9011906351 9011906354 9011906442 9011906442 9017906169
Part # Description Qty Price
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-32020

AT170,171,CT170,ST170

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-32020

AT170,171,CT170,ST170

 1
Common parts
90119-06351
90119-06354
90119-06442
90179-06169
