CT170-CEMNS (1988)

Toyota Carina Ff

Production May 1988 - Aug 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )AT170,171,CT17#,ET176,ST170

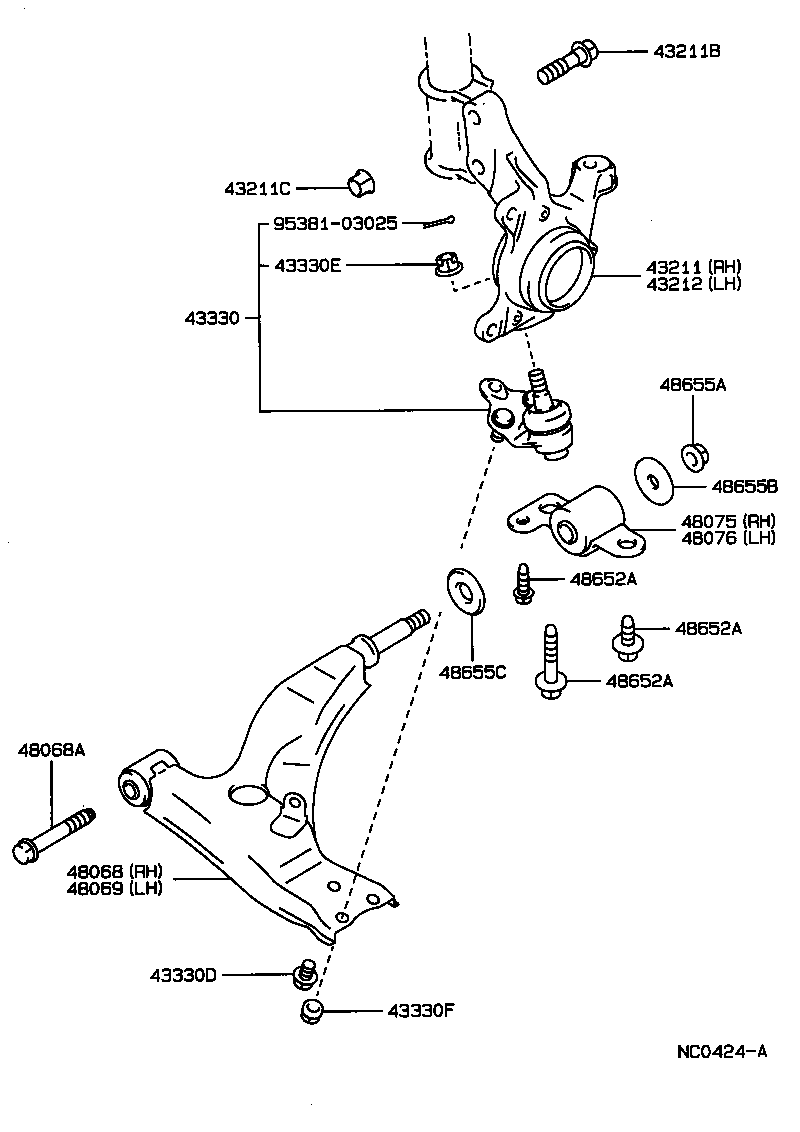

Click highlighted areas on diagram

diagram 43211 43211B 43211C 43212 43330 43330D 43330E 43330F 48068 48068A 48069 48075 48076 48652A 48652A 48652A 48655A 48655B 48655C 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20130

CT17#..SE,SG;AT170,171,ST170..GLIM,SE,SGEXT,SX

 1
43211-20130

AT170,171,CT17#,ST170..GLIM,SE,SG,SGEXT,SX

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-15001

AT17#,CT17#,ET176,ST170

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-15001

AT17#,CT17#,ET176,ST170

 4
43212 - KNUCKLE, STEERING, LH
43212-20090

AT170,171,CT17#,ST170..GLIM,SE,SG,SGEXT,SX

 1
43212-20090

CT17#..SE,SG;AT170,171,ST170..GLIM,SE,SGEXT,SX

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29185

AT170,171,CT17#,ET176,ST170

 2
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90105-12122

AT17#,CT17#,ET176,ST170

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
90171-14003

AT170,171,CT17#,ET176,ST170

 2
43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING)
90179-12052

AT17#,CT17#,ET176,ST170

 4
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20200

AT170,171,CT17#,ET176,ST170

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90119-14023

AT170,171,CT17#,ET176,ST170

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20200

AT170,171,CT17#,ET176,ST170

 1
48075 - BRACKET SUB-ASSY, LWR ARM, NO,1
48075-20010

AT170,171,CT17#,ET176,ST170

 1
48076 - BRACKET SUB-ASSY, LWR ARM, NO.2
48076-20010

AT170,171,CT17#,ET176,ST170

 1
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90119-12141

AT170,171,CT17#,ET176,ST170

*12-1.25PX68-30

 2
90105-10217

AT170,171,CT17#,ET176,ST170

*10-1.25PX25-20

 2
90119-12142

AT170,171,CT17#,ET176,ST170

*12-1.25PX33-27

 2
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90119-12141

AT170,171,CT17#,ET176,ST170

*12-1.25PX68-30

 2
90105-10217

AT170,171,CT17#,ET176,ST170

*10-1.25PX25-20

 2
90119-12142

AT170,171,CT17#,ET176,ST170

*12-1.25PX33-27

 2
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90119-12141

AT170,171,CT17#,ET176,ST170

*12-1.25PX68-30

 2
90105-10217

AT170,171,CT17#,ET176,ST170

*10-1.25PX25-20

 2
90119-12142

AT170,171,CT17#,ET176,ST170

*12-1.25PX33-27

 2
48655A - NUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
90179-14006

AT17#,CT17#,ET176,ST170

 2
48655B - RETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.
90948-02060

AT170,171,CT17#,ET176,ST170

 2
48655C - RETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.
90948-02121

AT170,171,CT17#,ET176,ST170

 2
Common parts
95381-03025
