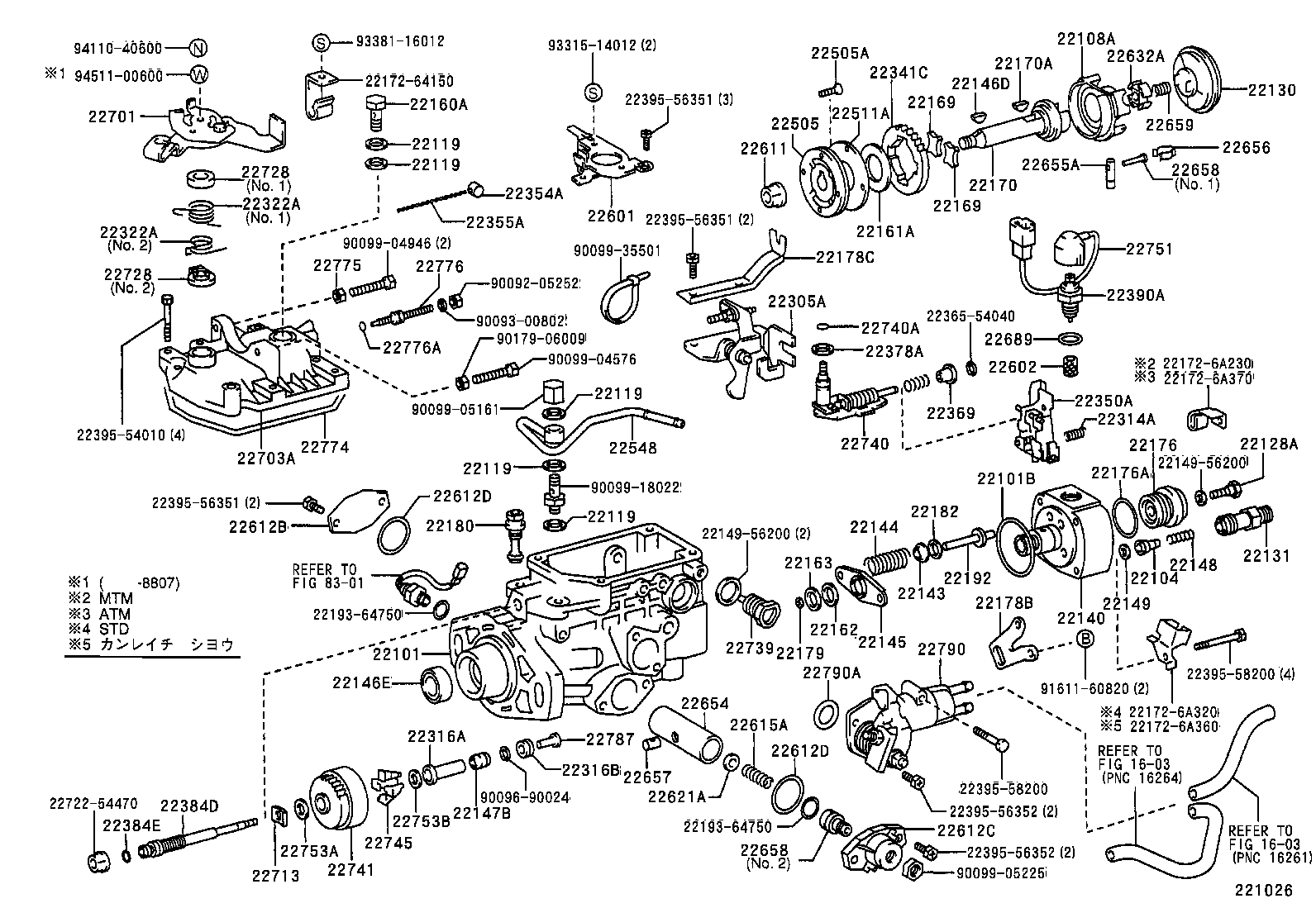

CT170-CEMES (1988)
Toyota Carina Ff
(8805- )2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64020 |
2C..CT176..DX;2C..CT170..5F..SE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 22101-64020 |
2C..CT17#..SE,SG |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
2C..CT17# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-64010 |
2C..CT170;2C..CT176..5F |
4 | ||
| 22104-64010 |
2C..CT17# |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
2C..CT17# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2C..CT17# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2C..CT17# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2C..CT17# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2C..CT17# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2C..CT17# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
2C..CT17# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-6A510 |
2C..CT170;2C..CT176..5F |
1 | ||
| 22130-6A510 |
2C..CT176..DX;2C..CT170..5F..(SE,SV) |
1 | ||
| 22130-6D340 |
2C..CT17#..5F..(DX,SE) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 22130-6A510 |
2C..CT176..DX;2C..CT170..4FC;2C..CT170..5F..(SE,SV) |
1 | ||
| 22130-6D340 |
2C..CT170..5F..(SE,SV) ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-64740 |
2C..CT170;2C..CT176..5F |
4 | ||
| 22190-18040 |
2C..CT17# |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-6A511 |
2C..CT17# |
1 | ||
| 22140-6A510 |
2C..CT170;2C..CT176..5F |
1 | ||
| 22140-6A511 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
2C..CT17# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
2C..CT17# |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
2C..CT17# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
2C..CT17# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
2C..CT17# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
2C..CT17# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
2C..CT17# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
2C..CT17# |
4 | ||
| 22149-54010 |
2C..CT170;2C..CT176..5F |
4 | ||
| 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 | ||||
| 22160-64010 |
2C..CT17# |
1 | ||
| 22161A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
2C..CT17# |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
2C..CT17# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
2C..CT17# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2C..CT17# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2C..CT17# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-6A510 |
2C..CT17# |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
2C..CT17# |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
2C..CT17# |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
2C..CT17# |
1 | ||
| 22178B - BRACKET(FOR INJECTION PUMP ASSY) | ||||
| 22178-64010 |
2C..CT17# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54013 |
2C..CT17# 厚さ=2.2 |
1 | ||
| 22179-54011 |
2C..CT17# 厚さ=2.0 |
1 | ||
| 22179-54014 |
2C..CT17# 厚さ=2.3 |
1 | ||
| 22179-54018 |
2C..CT17# 厚さ=2.7 |
1 | ||
| 22179-54010 |
2C..CT17# 厚さ=1.9 |
1 | ||
| 22179-54016 |
2C..CT17# 厚さ=2.5 |
1 | ||
| 22179-54017 |
2C..CT17# 厚さ=2.6 |
1 | ||
| 22179-54020 |
2C..CT17# 厚さ=2.9 |
1 | ||
| 22179-54015 |
2C..CT17# 厚さ=2.4 |
1 | ||
| 22179-54012 |
2C..CT17# 厚さ=2.1 |
1 | ||
| 22179-54019 |
2C..CT17# 厚さ=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-54010 |
2C..CT17# |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22185-54010 |
2C..CT17# 厚さ=1.2 |
2 | ||
| 22182-54010 |
2C..CT17# 厚さ=0.5 |
2 | ||
| 22187-54010 |
2C..CT17# 厚さ=1.8 |
2 | ||
| 22188-54010 |
2C..CT17# 厚さ=2.0 |
2 | ||
| 22186-54010 |
2C..CT17# 厚さ=1.5 |
2 | ||
| 22184-54010 |
2C..CT17# 厚さ=1.0 |
2 | ||
| 22183-54010 |
2C..CT17# 厚さ=0.8 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
2C..CT17# |
2 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-64010 |
2C..CT17#..5F |
1 | ||
| 22305-64010 |
2C..CT17#..5F..(SE,SG) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22305-6A770 |
2C..CT176..DX;2C..CT170..5F..(SE,SV) |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
2C..CT17# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54360 |
2C..CT170;2C..CT176..5F 内径=0.75 |
1 | ||
| 22316-54630 |
2C..CT170..5F..SE 内径=0.70,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
2C..CT17# |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-55030 |
2C..CT17#..5F NO.1 |
1 | ||
| 22322-6A280 |
2C..CT17# NO.1 |
1 | ||
| 22322-64740 |
2C..CT17# NO.2 |
1 | ||
| 22322-6D110 |
2C..CT170..SED..5F ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-55030 |
2C..CT17#..5F NO.1 |
1 | ||
| 22322-6A280 |
2C..CT17# NO.1 |
1 | ||
| 22322-64740 |
2C..CT17# NO.2 |
1 | ||
| 22322-6D110 |
2C..CT170..SED..5F ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
2C..CT17# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-64010 |
2C..CT17# |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
2C..CT17# |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
2C..CT17# |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54080 |
2C..CT17# |
1 | ||
| 22369-54080 |
2C..CT17# |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
2C..CT17# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
2C..CT17# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
2C..CT17# |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
2C..CT17# |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
2C..CT17# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
2C..CT17# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
2C..CT176;2C..CT170..5F |
1 | ||
| 22511-54020 |
2C..CT170;2C..CT176..5F |
1 | ||
| 22548 - NIPPLE, SWIVEL | ||||
| 22548-64150 |
2C..CT17# |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-6D090 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 90099-05166 |
2C..CT17# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
2C..CT176;2C..CT170..5F |
1 | ||
| 22612-56350 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22612-54010 |
2C..CT170;2C..CT176..5F NO.1 |
1 | ||
| 22612-54010 |
2C..CT17# |
1 | ||
| 22612-54010 |
2C..CT176;2C..CT170..5F..(SE,SV) |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
2C..CT17# |
1 | ||
| 22612-17010 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2C..CT17# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2C..CT17# |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-64010 |
2C..CT17# ﾊﾞﾈ定数=3.30,長さ=37.1 |
1 | ||
| 22615-6D270 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
2C..CT17# 厚さ=0.5 |
2 | ||
| 22625-54272 |
2C..CT17# 厚さ=0.5 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
2C..CT17# |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-55050 |
2C..CT17# |
1 | ||
| 22582-6D270 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
2C..CT17# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
2C..CT17# |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
2C..CT17# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
2C..CT17# NO.2 |
1 | ||
| 22658-54010 |
2C..CT17# NO.1 |
1 | ||
| 22658-17010 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
2C..CT17# NO.2 |
1 | ||
| 22658-54010 |
2C..CT17# NO.1 |
1 | ||
| 22658-17010 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
2C..CT17# |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-6A770 |
2C..CT17#..5F..(SE,SG) ｶﾝﾚｲﾁ ｼﾖｳ,MARK 366 |
1 | ||
| 22701-64740 |
2C..CT17#..5F MARK 149 |
1 | ||
| 22701-6A771 |
2C..CT17#..5F..(SE,SG) ｶﾝﾚｲﾁ ｼﾖｳ,MARK 367 |
1 | ||
| 22701-64750 |
2C..CT17#..5F MARK 150 |
1 | ||
| 22701-6A771 |
2C..CT17#..5F MARK 367 |
1 | ||
| 22701-6A770 |
2C..CT17#..5F MARK 366 |
1 | ||
| 22701-6D271 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,MARK 430 |
1 | ||
| 22701-6D270 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,MARK 429 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54451 |
2C..CT17#..5F |
1 | ||
| 22703-6A361 |
2C..CT17#..5F..(SE,SG) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22703-6A361 |
2C..CT17# |
1 | ||
| 22703-6D090 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
2C..CT17# 厚さ=1.25 |
1 | ||
| 22716-54010 |
2C..CT17# 厚さ=1.65 |
1 | ||
| 22715-54010 |
2C..CT17# 厚さ=1.45 |
1 | ||
| 22717-54010 |
2C..CT17# 厚さ=1.85 |
1 | ||
| 22713-54010 |
2C..CT17# 厚さ=1.05 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-6D091 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 22728-6D090 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-6D091 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 22728-6D090 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
2C..CT17# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22302-6A511 |
2C..CT17# |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
2C..CT170;2C..CT176..5F |
1 | ||
| 90099-14048 |
2C..CT17# |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
2C..CT17# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
2C..CT17# |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-6A041 |
2C..CT17#..SE,SG |
1 | ||
| 22751-6A041 |
2C..CT176..DX;2C..CT170..5F..SE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 22751-6A401 |
2C..CT17#..5F..(SE,SG) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22751-6A041 |
2C..CT17#..5F..(DX,SE) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
2C..CT17# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
2C..CT17# |
1 | ||
| 22753-54020 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
2C..CT17# |
1 | ||
| 22774-54010 |
2C..CT170;2C..CT176..5F |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
2C..CT17# |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
2C..CT17# |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
2C..CT17# |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54026 |
2C..CT17# 長さ=3.3 |
1 | ||
| 22787-64667 |
2C..CT170..5F 長さ=2.9,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22787-64643 |
2C..CT17# 長さ=3.2 |
1 | ||
| 22787-54027 |
2C..CT17# 長さ=3.4 |
1 | ||
| 22787-64641 |
2C..CT17# 長さ=3.0 |
1 | ||
| 22787-64665 |
2C..CT17# 長さ=2.7 |
1 | ||
| 22787-64661 |
2C..CT17# 長さ=2.3 |
1 | ||
| 22787-64663 |
2C..CT17# 長さ=2.5 |
1 | ||
| 22787-64662 |
2C..CT17# 長さ=2.4 |
1 | ||
| 22787-64664 |
2C..CT17# 長さ=2.6 |
1 | ||
| 22787-64642 |
2C..CT17# 長さ=3.1 |
1 | ||
| 22787-64660 |
2C..CT17# 長さ=2.2 |
1 | ||
| 22787-64666 |
2C..CT17# 長さ=2.8 |
1 | ||
| 22787-64667 |
2C..CT17# 長さ=2.9 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-6A510 |
2C..CT170;2C..CT176..5F |
1 | ||
| 22790-6A770 |
2C..CT17# |
1 | ||
| 22790-6D090 |
2C..CT170..5F..SE ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2C..CT17# |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-64150 | ||||
| 22172-6A230 | ||||
| 22172-6A320 | ||||
| 22172-6A360 | ||||
| 22172-6A370 | ||||
| 22193-64750 | ||||
| 22365-54040 | ||||
| 22395-54010 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90092-05252 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 90099-35501 | ||||
| 90179-06009 | ||||
| 91611-60820 | ||||
| 93315-14012 | ||||
| 93381-16012 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
