CT150-AEPFS (1984)
Toyota Carina Ff
Production
May 1984
-
Apr 1988
Engine
2CL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

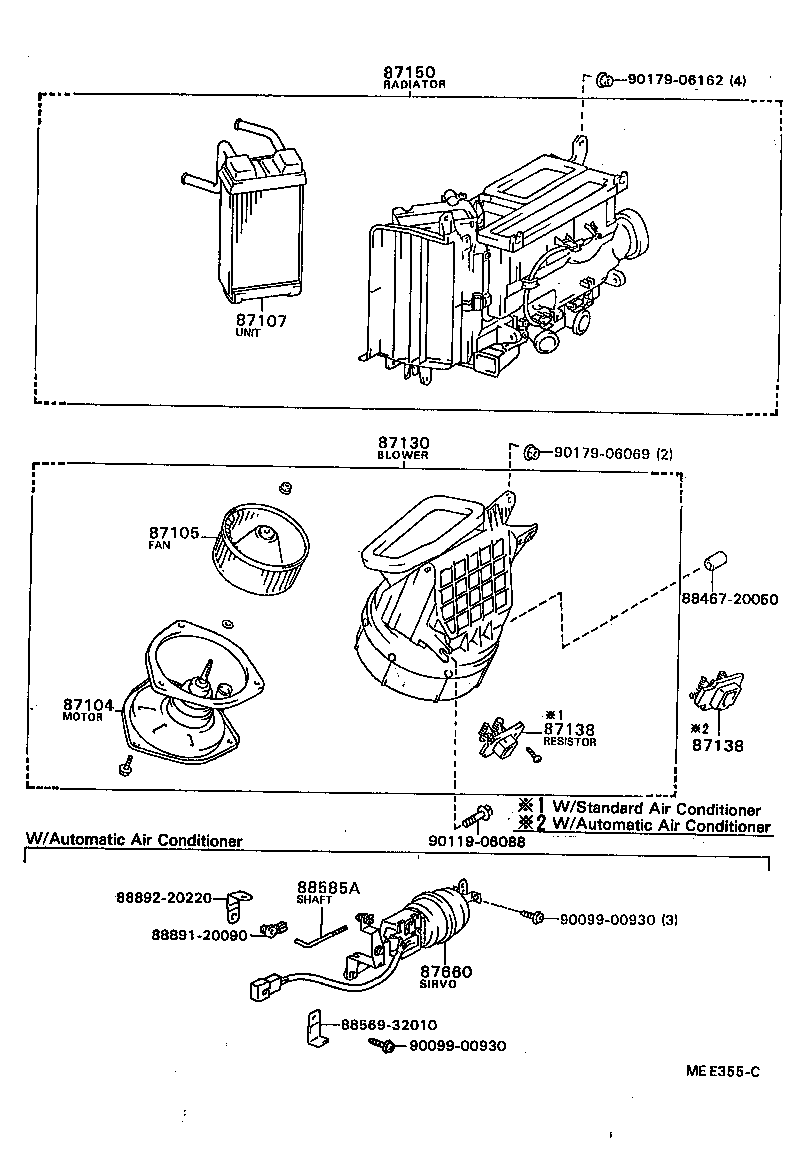

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-20140 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87104-20200 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87104-20160 |
CT150 COLD SPEC |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20290 |
CT150 |
1 | ||
| 87107-20420 |
CT150 COLD SPEC |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-20140 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87130-20150 |
CT150 COLD SPEC |
1 | ||
| 87130-20240 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87130-20240 |
AT15#,160,CT150,ST150 W/*LHC |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87138-20110 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87138-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87138-20110 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87138-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-20330 |
CT150 |
1 | ||
| 87150-20670 |
CT150 COLD SPEC |
1 | ||
| Common parts | ||||
| 88467-20050 | ||||
| 88569-32010 | ||||
| 88891-20090 | ||||
| 88892-20220 | ||||
| 90099-00930 | ||||
| 90119-06088 | ||||
| 90179-06069 | ||||
| 90179-06162 | ||||
