CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

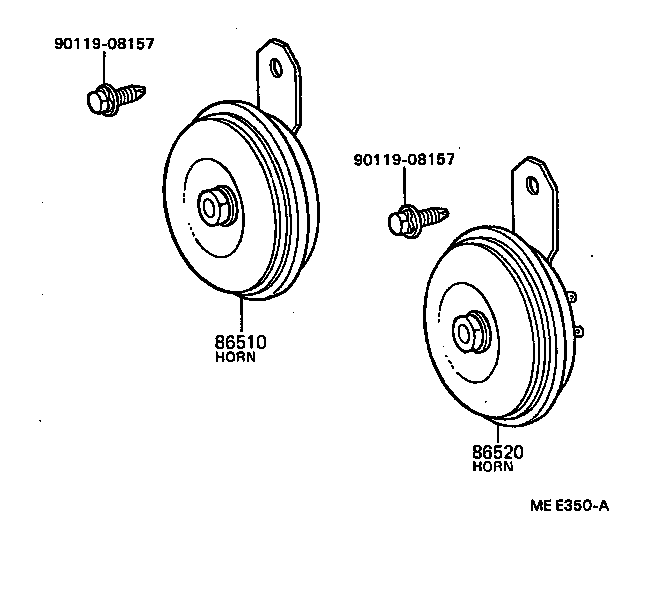

Click highlighted areas on diagram

diagram 86510 86520 9011908157 9011908157
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-22110

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

MARUKO

 1
86510-22100

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

DENSO

 1
86520 - HORN ASSY, LOW PITCHED
86520-22100

AT15#,160,CT150,ST150,162

DENSO

 1
86520-22110

AT15#,160,CT150,ST150,162

MARUKO

 1
Common parts
90119-08157
