CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

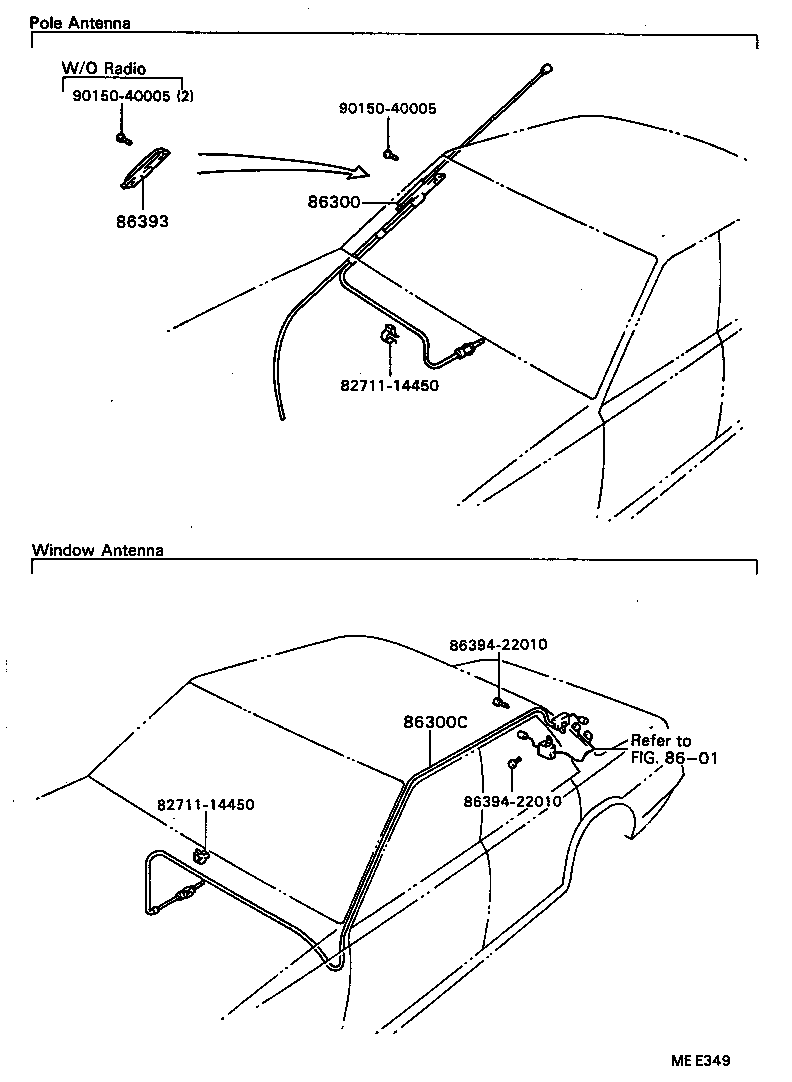

Click highlighted areas on diagram

diagram 8271114450 8271114450 8601 86300 86300C 86393 8639422010 8639422010 9015040005 9015040005
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-20430

CT150..SG;AT15#,160,ST150

 1
86300-20620

AT15#,160,CT150,ST150..DX,GT,SG,ST

 1
86300-20430

AT15#,160,CT150,ST150..DX,GT,SG,ST

 1
Common parts
82711-14450
86394-22010
90150-40005
Linked diagrams
8601
