CT150-AEPFS (1984)
Toyota Carina Ff
ILLUST NO. 1 OF 5(8405- )CT150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-64020 |
2CL..CT150..4FC |
1 | ||
| 28560A - BLOCK, HEATER | ||||
| 28560-29015 |
2CL..CT150 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64010 |
2CL..CT150 SUB |
1 | ||
| 28610-54080 |
2CL..CT150 MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64010 |
2CL..CT150 SUB |
1 | ||
| 28610-54080 |
2CL..CT150 MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-54011 |
2CL..CT150 |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2CL..CT150 |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64020 |
2CL..CT150 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-64030 |
2CL..CT150 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT15#,160,CT150,ST150,162 10A,10A |
1 | ||
| 90982-09003 |
AT15#,160,CT150,ST150,162 15A,15A |
6 | ||
| 90982-09004 |
AT15#,160,CT150,ST150,162 20A,黄,20A |
4 | ||
| 90982-09005 |
AT15#,160,CT150,ST150,162 7.5A,7.5A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT15#,160,CT150,ST150,162 10A,10A |
1 | ||
| 90982-09003 |
AT15#,160,CT150,ST150,162 15A,15A |
6 | ||
| 90982-09004 |
AT15#,160,CT150,ST150,162 20A,黄,20A |
4 | ||
| 90982-09005 |
AT15#,160,CT150,ST150,162 7.5A,7.5A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 82616-12010 |
AT15#,CT150,ST150 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-32040 |
AT15#,CT150,ST150 |
1 | ||
| 82660-32030 |
AT15#,CT150,ST150 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
AT15#,CT150,ST150 ENGINE ROOM |
1 | ||
| 82661-32030 |
AT15#,160,CT150,ST150,162 COWL SIDE |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CT150 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14023 |
AT150,160,CT150..GT,SE,SG |
1 | ||
| 83520-14022 |
CT150..SG |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
CT150..SG |
1 | ||
| 83530-30060 |
CT150..SG |
1 | ||
| 83530-30042 |
CT150..SG |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-26020 |
CT150 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12160 |
AT15#,CT150,ST150..ATM |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT15#,CT150,ST150 TAIL & HEAD |
2 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 85913-30020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 90987-04002 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88620-20040 |
CT150..4FC |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12051 |
CT150 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
CT150 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CT150 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-64010 | ||||
| 82711-22200 | ||||
| 82711-22220 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06026 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90464-00095 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 92132-40632 | ||||
| 94613-10601 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 5(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20040 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81944-30010 |
AT15#,CT150,ST150 |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10010 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29365 |
AT15#,160,CT150,ST150,162 TOKAIRIKA |
1 | ||
| 84112-29375 |
AT15#,160,CT150,ST150,162 MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29215 |
AT15#,160,CT150,ST150,162 MATSUSHITA |
1 | ||
| 84140-29205 |
AT15#,160,CT150,ST150,162 TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2B170 |
AT15#,160,CT150,ST150..DX,GT,SG,ST *IW |
1 | ||
| 84310-2B170 |
AT15#,160,CT150..DX,GT,SG,ST *IW |
1 | ||
| 84311 - SENSOR, TURN SIGNAL CANCEL | ||||
| 84311-22010 |
AT15#,160,CT150,ST150..DX,GT,SG,ST TOKAIRIKA |
1 | ||
| 84311-20010 |
AT15#,160,CT150,ST150..DX,GT,SG,ST MATSUSHITA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AT15#,160,CT150,ST150,162 MATSUSHITA |
1 | ||
| 84312-32010 |
AT15#,160,CT150,ST150,162 TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29205 |
AT15#,160,CT150,ST150,162 MATSUSHITA |
1 | ||
| 84332-29195 |
AT15#,160,CT150,ST150,162 TOKAIRIKA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-20120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20150 |
AT15#,160,CT150,ST150 |
1 | ||
| 84450-20150 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 84450-20160 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20150 |
AT15#,160,CT150,ST150 |
1 | ||
| 84450-20150 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 84450-20160 |
AT150,CT150,ST150..SG MY ROAD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-80034 |
AT15#,160,CT150..DX,GT,SG,ST *IW,TOKAIRIKA |
1 | ||
| 84652-80037 |
AT15#,160,CT150..DX,GT,SG,ST *IW,MATSUSHITA |
1 | ||
| 84652-80034 |
AT15#,160,CT150,ST150..DX,GT,SG,ST *IW,TOKAIRIKA |
1 | ||
| 84652-80037 |
AT15#,160,CT150,ST150..DX,GT,SG,ST *IW,MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20080 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 84660-20080 |
AT15#,160,CT150,ST150 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 88607-12010 |
AT15#,160,CT150,ST150 |
2 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 88607-12010 |
AT15#,160,CT150,ST150 |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20140 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 84732-20180 |
AT15#,160,CT150,ST150 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20130 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10130 |
AT15#,160,CT150,ST150,162 12V 0.56W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20060 |
AT151..ST;AT150,160,CT150,ST150,162..GT,GTR,SE,SG |
1 | ||
| 84870-22040 |
CT150;AT15#,160,ST150,162..GT,GTR,SE,ST |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20180 |
AT15#,CT150,ST150 |
1 | ||
| 85500-20190 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AT15#,160,CT150,ST150,162 14V 1.4W |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-20300 | ||||
| 82711-20450 | ||||
| 90201-09365 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-55012 | ||||
| 93566-54512 | ||||

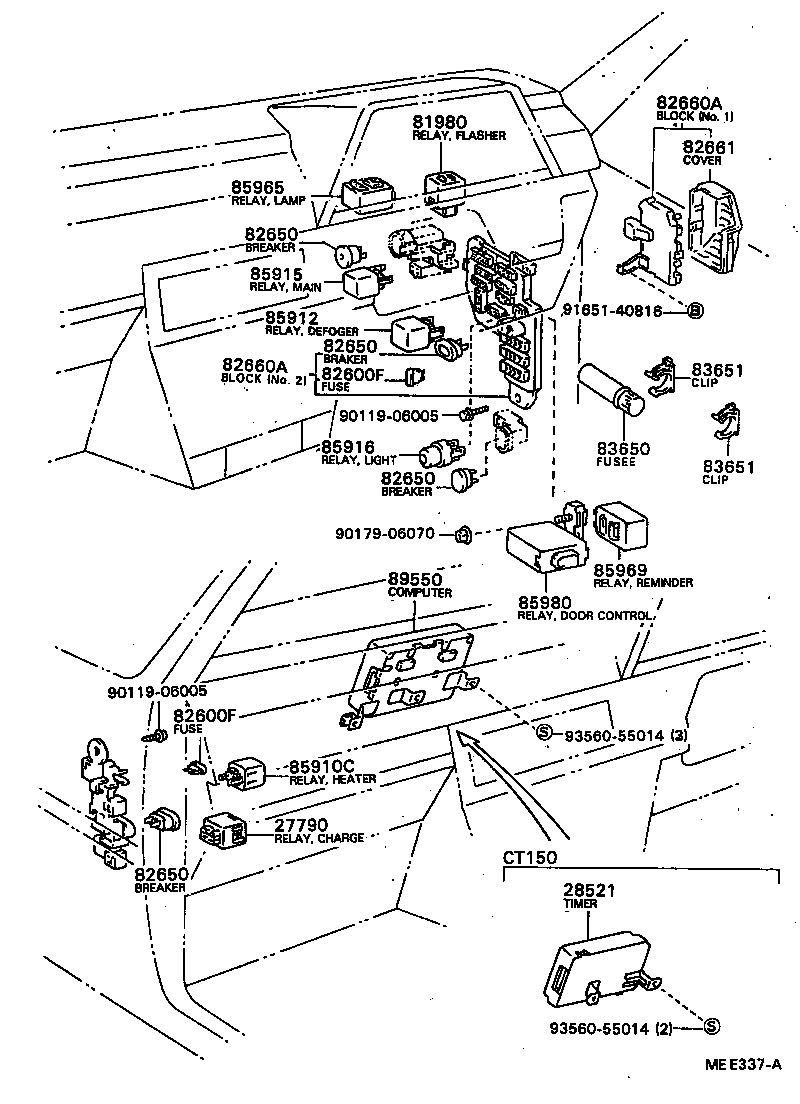

ILLUST NO. 3 OF 5(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35020 |
2CL..CT150 |
1 | ||
| 27790-13010 |
2CL..CT150 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-64182 |
2CL..CT150 |
1 | ||
| 28521-64181 |
2CL..CT150 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 81980-16010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT15#,160,CT150,ST150,162 10A,10A |
1 | ||
| 90982-09003 |
AT15#,160,CT150,ST150,162 15A,15A |
6 | ||
| 90982-09004 |
AT15#,160,CT150,ST150,162 20A,黄,20A |
4 | ||
| 90982-09005 |
AT15#,160,CT150,ST150,162 7.5A,7.5A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AT15#,160,CT150,ST150,162 10A,10A |
1 | ||
| 90982-09003 |
AT15#,160,CT150,ST150,162 15A,15A |
6 | ||
| 90982-09004 |
AT15#,160,CT150,ST150,162 20A,黄,20A |
4 | ||
| 90982-09005 |
AT15#,160,CT150,ST150,162 7.5A,7.5A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AT15#,CT150,ST150 30A,30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
AT15#,160,CT150,ST150,162 30A,30A |
3 | ||
| 82650-20011 |
AT15#,CT150,ST150 30A,30A,MATSUSHITA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AT15#,CT150,ST150 30A,30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
AT15#,160,CT150,ST150,162 30A,30A |
3 | ||
| 82650-20011 |
AT15#,CT150,ST150 30A,30A,MATSUSHITA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AT15#,CT150,ST150 30A,30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
AT15#,160,CT150,ST150,162 30A,30A |
3 | ||
| 82650-20011 |
AT15#,CT150,ST150 30A,30A,MATSUSHITA |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AT15#,CT150,ST150 30A,30A,TOKAIRIKA |
3 | ||
| 82650-20011 |
AT15#,160,CT150,ST150,162 30A,30A |
3 | ||
| 82650-20011 |
AT15#,CT150,ST150 30A,30A,MATSUSHITA |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-20020 |
AT15#,CT150,ST150 NO.1 |
1 | ||
| 82660-20170 |
AT15#,160,CT150,ST150,162 NO.1 |
1 | ||
| 82660-32010 |
AT15#,160,CT150,ST150,162 NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-20020 |
AT15#,CT150,ST150 NO.1 |
1 | ||
| 82660-20170 |
AT15#,160,CT150,ST150,162 NO.1 |
1 | ||
| 82660-32010 |
AT15#,160,CT150,ST150,162 NO.2 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-32010 |
AT15#,CT150,ST150 ENGINE ROOM |
1 | ||
| 82661-32030 |
AT15#,160,CT150,ST150,162 COWL SIDE |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25001 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25001 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 90987-04002 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AT15#,160,CT150,ST150,162 MARUKO |
1 | ||
| 90987-02004 |
AT15#,160,CT150,ST150,162 DENSO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
AT150,CT150,ST150..SG DENSO |
1 | ||
| 90987-02002 |
AT150,CT150,ST150..SG MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AT15#,CT150,ST150 TAIL & HEAD |
2 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20100 |
AT150,CT150,ST150..SG |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06070 | ||||
| 91651-40816 | ||||
| 93560-55014 | ||||

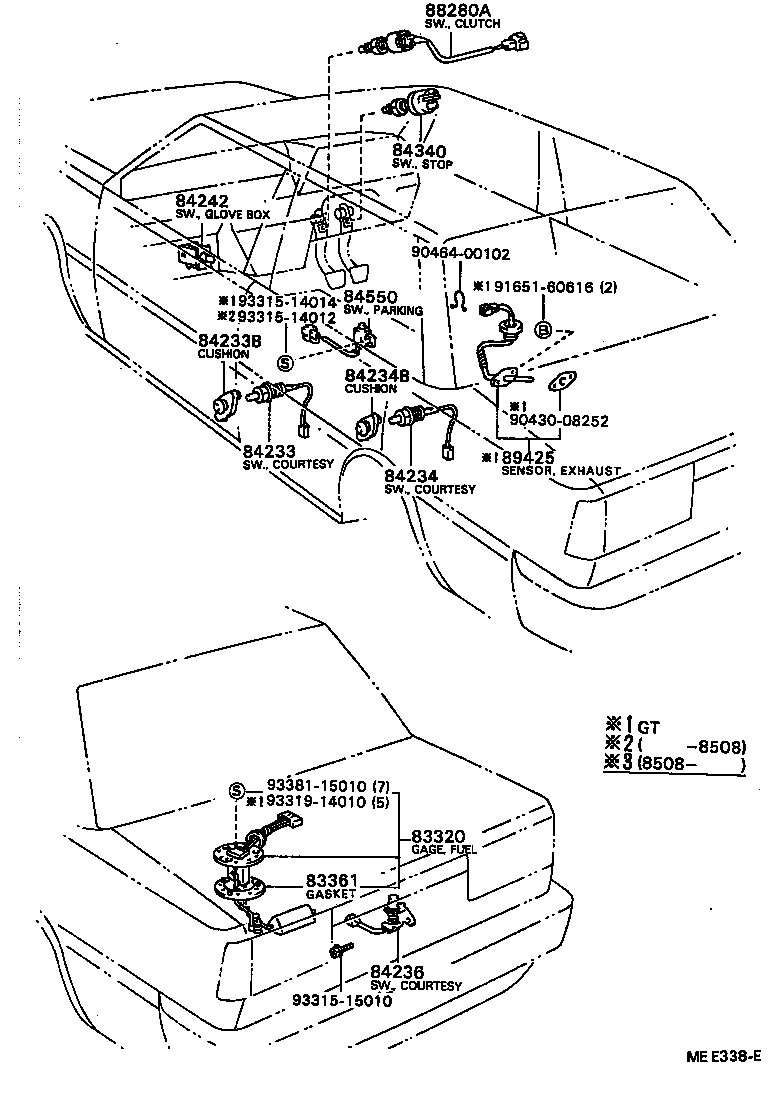

ILLUST NO. 4 OF 5(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29896 |
ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
1 | ||
| 83320-29895 |
ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
1 | ||
| 83320-29897 |
ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
1 | ||
| 83320-29897 |
AT15#,CT150,ST150..DX,SG W/O FUEL WARNING |
1 | ||
| 83320-80018 |
CT150..SG W/FUEL WARNING |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32010 |
AT15#,CT150,ST150 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AT15#,160,CT150,ST150,162 TOKAIRIKA |
1 | ||
| 84340-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 84340-30030 |
AT15#,160,CT150,ST150,162 MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AT15#,CT150,ST150 |
1 | ||
| 84550-16010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90430-08252 | ||||
| 90464-00102 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93315-14014 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||

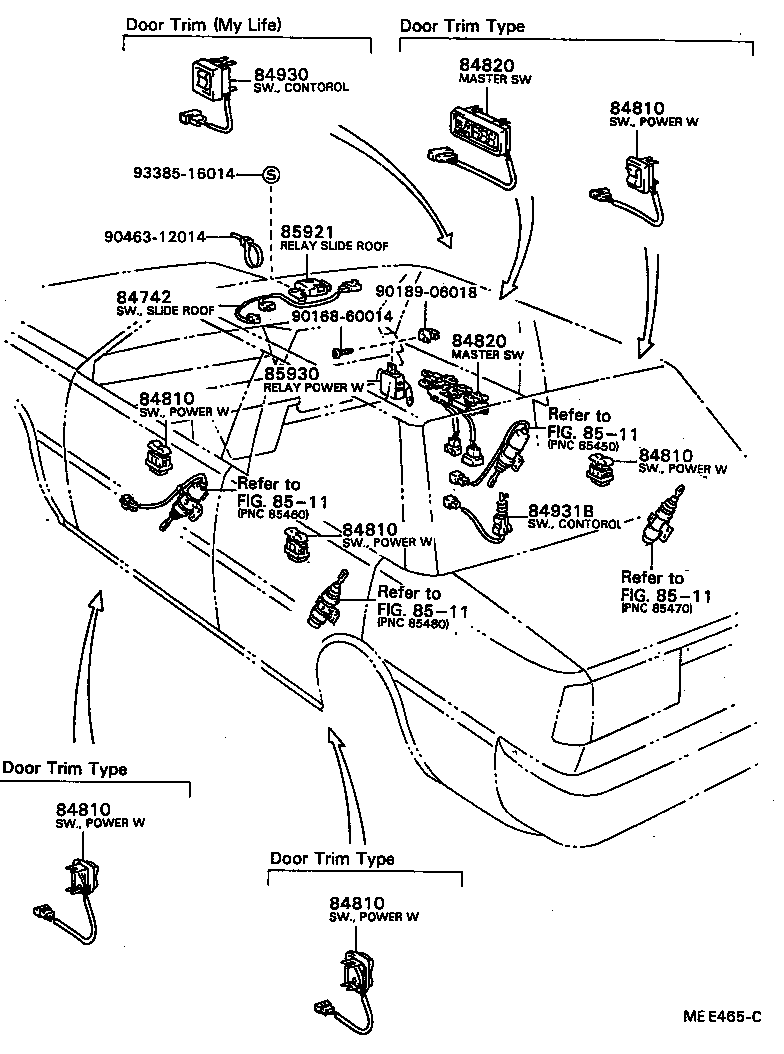

ILLUST NO. 5 OF 5(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20040 |
AT150,CT150,ST150..SG MY ROAD,ARMREST TYPE |
3 | ||
| 84810-1410005 |
CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20040 |
AT150,CT150,ST150..SG MY ROAD,ARMREST TYPE |
3 | ||
| 84810-1410005 |
CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20040 |
AT150,CT150,ST150..SG MY ROAD,ARMREST TYPE |
3 | ||
| 84810-1410005 |
CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20040 |
AT150,CT150,ST150..SG MY ROAD,ARMREST TYPE |
3 | ||
| 84810-1410005 |
CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20040 |
AT150,CT150,ST150..SG MY ROAD,ARMREST TYPE |
3 | ||
| 84810-1410005 |
CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20040 |
AT150,CT150,ST150..SG MY ROAD,ARMREST TYPE |
3 | ||
| 84810-1410005 |
CT150,ST150..SG MY ROAD,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-2010005 |
CT150,ST150..SG MY ROAD,DOOR TRIM TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84820-20280 |
CT150..SG MY ROAD,ARMREST TYPE |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-2010005 |
CT150,ST150..SG MY ROAD,DOOR TRIM TYPE,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84820-20280 |
CT150..SG MY ROAD,ARMREST TYPE |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-2006005 |
AT150,CT150,ST150..SG DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20100 |
AT150,CT150,ST150..SG |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-20050 |
AT150,CT150,ST150..SG |
1 | ||
| Common parts | ||||
| 90168-60014 | ||||
| 90189-06018 | ||||
| 90463-12014 | ||||
| 93385-16014 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
