Toyota Carina ff CT150 WIRING & CLAMP

CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988

Engine 2CL

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

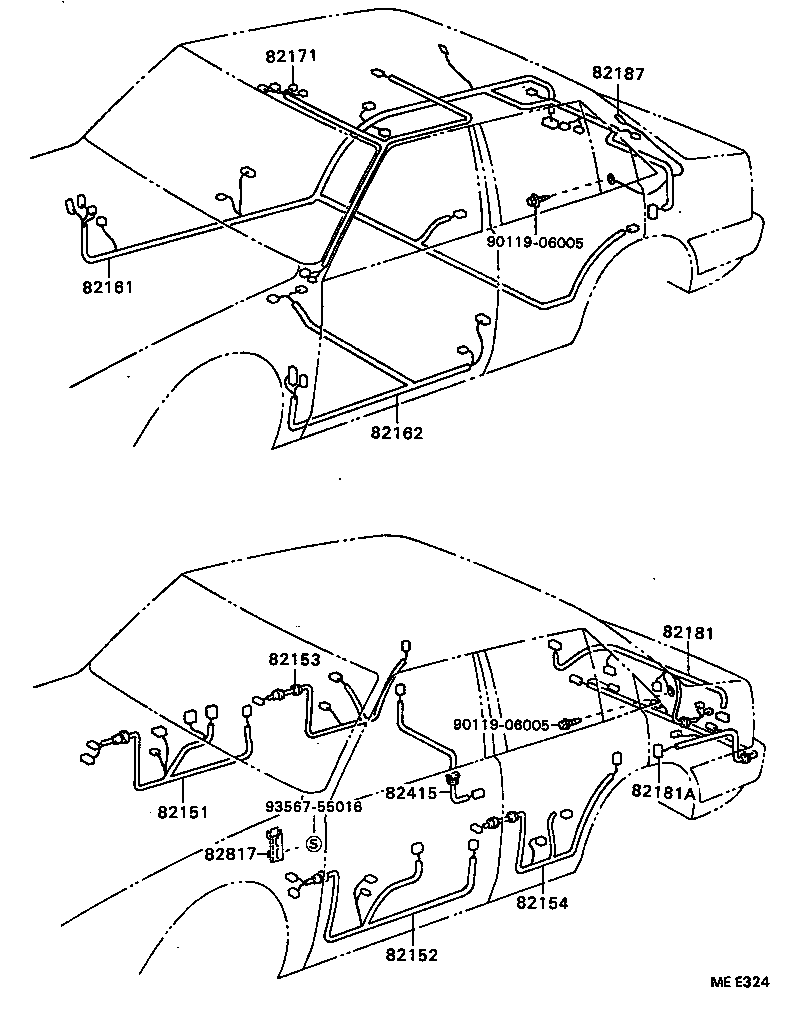

ILLUST NO. 2 OF 5(8405- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-20790	AT150,CT150,ST150..SG MY ROAD	09/1987 - 12/1987	1
82151-20190	CT150,ST150;AT15#,160..GT,SE,ST W/RC,DM	05/1984 - 04/1988	1
82151-20510	AT150,CT150,ST150..SG MY ROAD,W/O RC,DM	09/1987 - 12/1987	1
82151-20490	AT150,CT150,ST150..SG W/PW,W/O RC,*DM	01/1987 - 09/1987	1
82151-20500	AT150,CT150,ST150..SG W/PW & RC,DM,W/O EL	01/1987 - 09/1987	1
82151-2B030	CT150..SG MY ROAD	12/1987 - 04/1988	1
82152 - WIRE, FRONT DOOR, LH
82151-20190	CT150,ST150;AT15#,160..GT,SE,ST W/RC,DM	05/1984 - 04/1988	1
82152-20690	AT150,CT150,ST150..SG MY ROAD	09/1987 - 12/1987	1
82152-20680	AT150,CT150,ST150..SG MY ROAD,W/O RC,DM	09/1987 - 12/1987	1
82152-20200	AT150,CT150,ST150..SG W/PW,W/O RC,DM & EL	01/1987 - 09/1987	1
82152-20210	AT150,CT150,ST150..SG W/PW & RC,DM,W/O EL	01/1987 - 09/1987	1
82152-20800	CT150..SG MY ROAD	12/1987 - 04/1988	1
82153 - WIRE, REAR DOOR, NO.1
82153-20070	AT150,CT150,ST150..SG W/PW,W/O EL	01/1987 - 09/1987	1
82153-20190	AT150,CT150,ST150..SG MY ROAD	09/1987 - 12/1987	1
82153-20210	CT150..SG MY ROAD	12/1987 - 04/1988	1
82153-20070	CT150,ST150..SG W/PW,W/O EL	12/1986 - 04/1988	1
82154 - WIRE, REAR DOOR, NO.2
82154-20070	AT150,CT150,ST150..SG W/PW,W/O EL	01/1987 - 09/1987	1
82154-20190	AT150,CT150,ST150..SG MY ROAD	09/1987 - 12/1987	1
82154-20070	CT150,ST150..SG W/PW,W/O EL	12/1986 - 04/1988	1
82154-20210	CT150..SG MY ROAD	12/1987 - 04/1988	1
82161 - WIRE, FLOOR
82161-20501	AT150,CT150,ST150..SG W/*PW	12/1986 - 09/1987	1
82161-20440	AT150,CT150..DX,SG	05/1984 - 04/1988	1
82161-2D330	AT150,CT150,ST150..SG MY ROAD	09/1987 - 04/1988	1
82162 - WIRE, FLOOR, NO.2
82162-20270	CT150,ST150..4FC..SG W/*PW	12/1986 - 04/1988	1
82162-20120	AT15#,CT150,ST150..ATM	05/1984 - 08/1985	1
82162-20260	AT15#,CT150,ST150..ATM	08/1985 - 04/1988	1
82171 - WIRE, ROOF, NO.1
82171-20090	CT150,ST150..SG	05/1986 - 04/1988	1
82171-20090	AT15#,160,CT150,ST150,162	05/1984 - 05/1986	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-20140	CT150,ST150 W/LUGGAGE ROOM LAMP	05/1984 - 05/1986	1
82181-20220	AT15#,CT150,ST150..DX,SG	05/1986 - 04/1988	1
82181-20130	CT150..SG;AT15#,160,ST150,162	05/1984 - 05/1986	1
82181-20230	AT150,CT150,ST150..SG MY ROAD	12/1986 - 04/1988	1
82187 - WIRE, REAR WINDOW, NO.2
82187-20060	CT150..SG;AT15#,160,ST150	05/1984 - 05/1986	1
82187-20150	AT150,160,CT150,ST150..DX,GT,SG	08/1987 - 04/1988	1
82187-20060	AT150,160,CT150,ST150..DX,GT,SG	05/1986 - 08/1987	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-20300	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
Common parts
90119-06005
93567-55016

ILLUST NO. 3 OF 5(8405- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

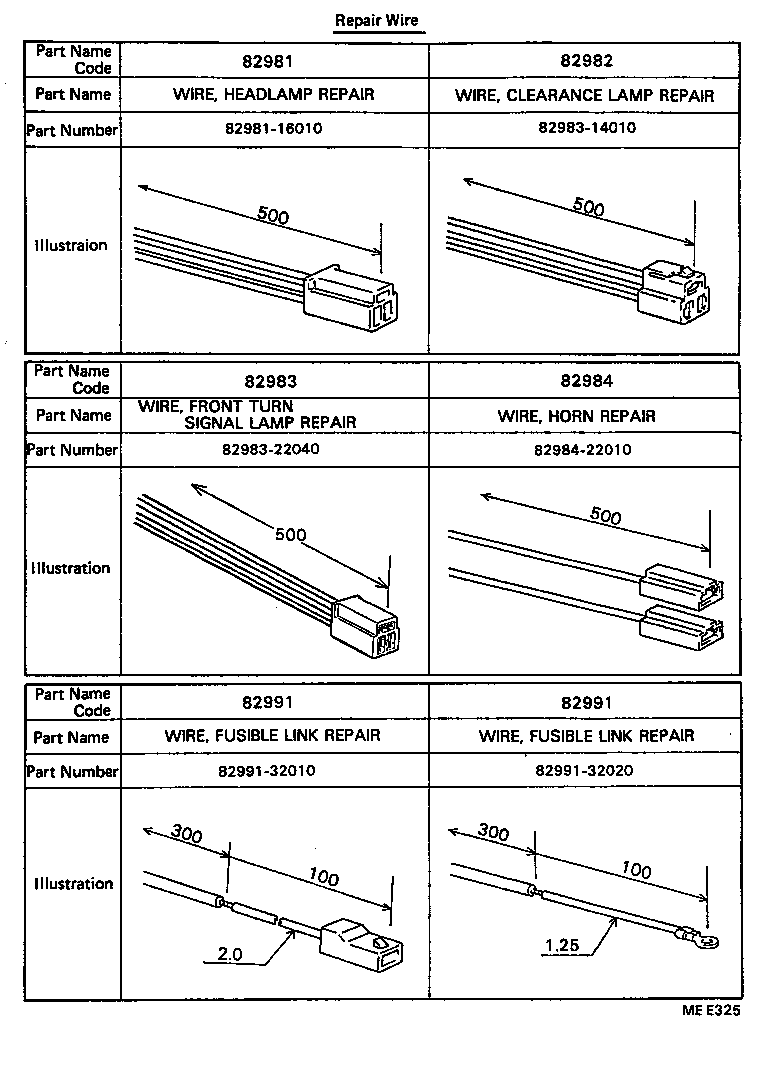

82981 - WIRE, HEADLAMP REPAIR
82981-16010	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82983-14010	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-22040	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
82984 - WIRE, HORN REPAIR
82984-22010	AT15#,160,CT150,ST150,162	05/1984 - 04/1988	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-32030	CT150	05/1984 - 04/1988	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-32030	CT150	05/1984 - 04/1988	1
Common parts
82981-16010
82983-14010
82983-22040
82984-22010
82991-32010
82991-32020

ILLUST NO. 4 OF 5(8405- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14350
82711-1A040
82711-1A150
82711-1A160
82711-1A170
82711-1A180
82711-1A210
82711-1A220
82711-1A300
82711-20330
82711-20410
82711-20460
82711-20480
82711-22220
82711-22270
82711-24010
82711-24070
82711-32060
82711-32090
82711-32100
82711-32490
82711-32500
90461-08066
90461-08312
90464-00248

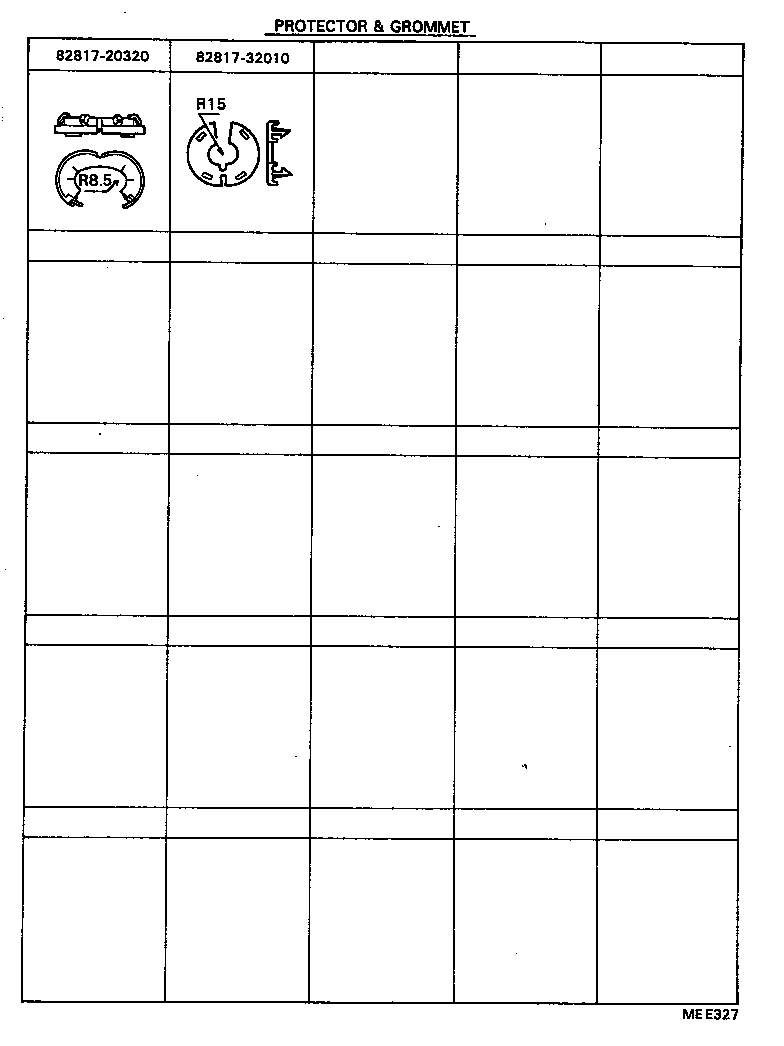

ILLUST NO. 5 OF 5(8405- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82817-20320
82817-32010

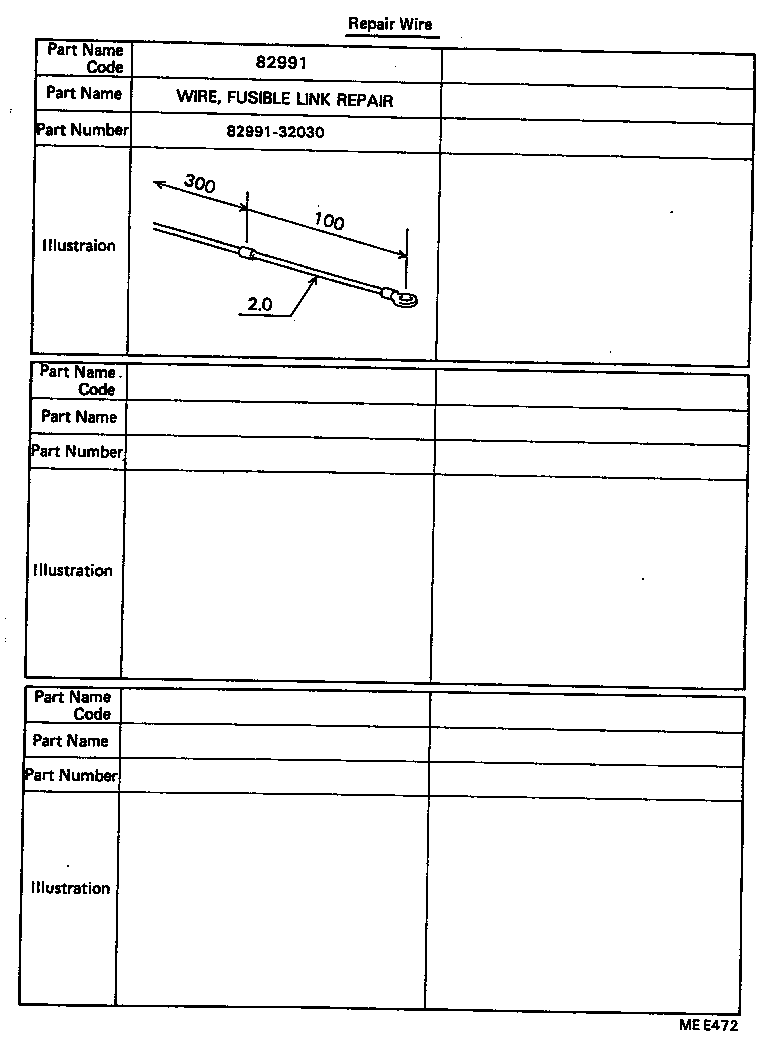

ILLUST NO. 3 OF 5(8405- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-32030	CT150	05/1984 - 04/1988	1
Common parts
82991-32030

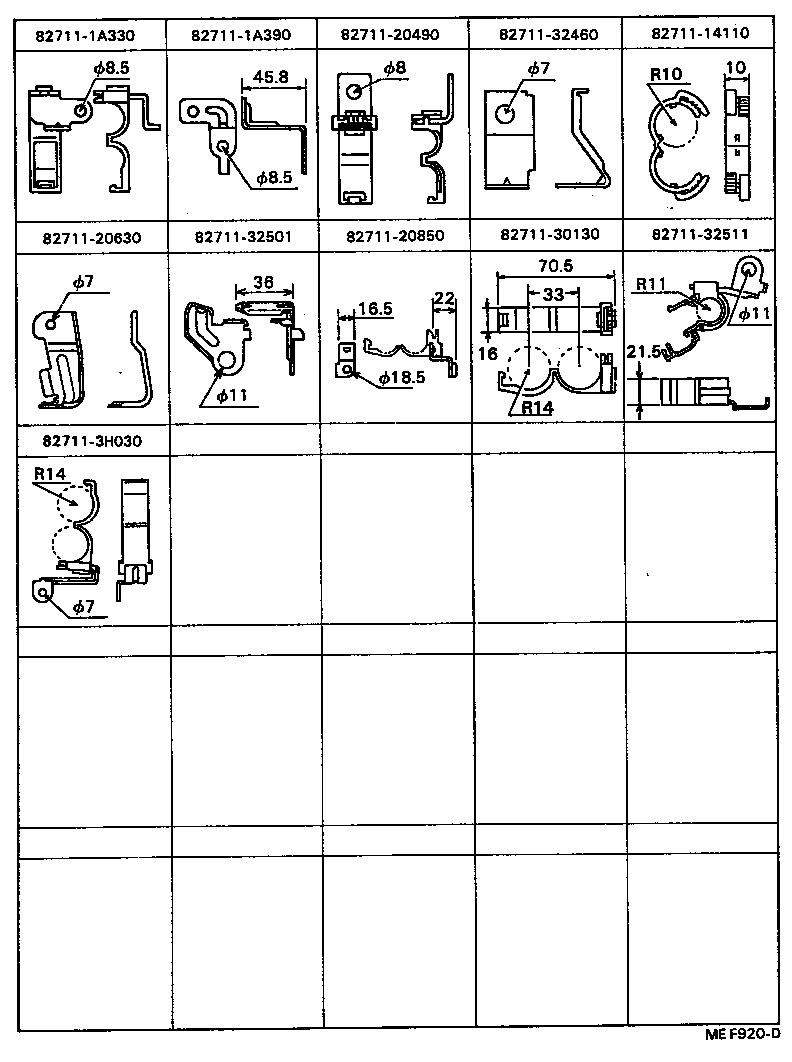

ILLUST NO. 4 OF 5(8405- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-14110
82711-1A330
82711-1A390
82711-20490
82711-20630
82711-20850
82711-30130
82711-32460
82711-32501
82711-32511
82711-3H030

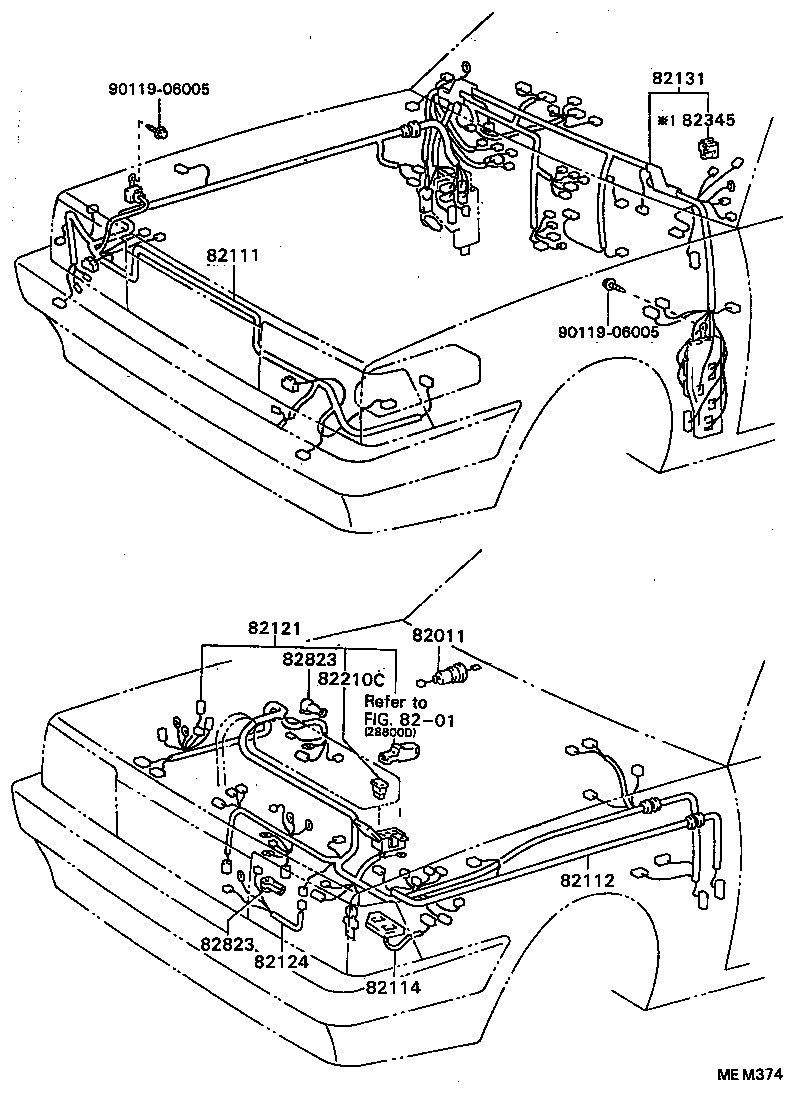

ILLUST NO. 1 OF 5(8405- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF 5(8508-8610)CT150

Click highlighted areas on diagram

Part #	Description	Period	Qty
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-20040	CT150	05/1984 - 04/1988	1
82111 - WIRE, ENGINE ROOM MAIN
82111-20380	CT150	05/1984 - 08/1985	1
82111-20680	CT150	05/1986 - 04/1988	1
82111-20381	CT150	08/1985 - 05/1986	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-20070	CT150;AT15#,ST150..SE,ST	05/1984 - 05/1986	1
82112-20070	CT150..SG	05/1986 - 04/1988	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-32010	AT15#,CT150,ST150	05/1984 - 04/1988	1
82121 - WIRE, ENGINE
82121-2B160	CT150..4FC	05/1986 - 10/1986	1
82121-2B161	CT150..4FC	10/1986 - 04/1988	1
82121-20350	CT150 COLD SPEC	05/1984 - 08/1985	1
82121-20341	CT150	08/1985 - 10/1985	1
82121-20340	CT150	05/1984 - 08/1985	1
82121-2B091	CT150..4FC	10/1985 - 05/1986	1
82121-20351	CT150 COLD SPEC	08/1985 - 10/1985	1
82121-20352	CT150 COLD SPEC	10/1985 - 05/1986	1
82121-2B171	CT150 COLD SPEC	10/1986 - 04/1988	1
82121-2B170	CT150 COLD SPEC	05/1986 - 10/1986	1
82124 - WIRE, ENGINE, NO.4
82124-12020	CT150	05/1984 - 04/1988	1
82131 - WIRE, COWL
82131-2B150	CT150..SG	05/1984 - 10/1984	1
82131-2B151	CT150..SG	10/1984 - 09/1985	1
82131-2D161	CT150,ST150..SG MY ROAD	12/1986 - 04/1987	1
82131-2D161	CT150,ST150..SG W/*PW & MY ROAD	04/1987 - 09/1987	1
82131-2D150	CT150,ST150..SG MY ROAD	04/1987 - 09/1987	1
82131-2B152	CT150..SG	09/1985 - 04/1988	1
82131-2D150	AT151,CT150,ST150..SG,ST	05/1986 - 04/1988	1
82131-2D162	CT150,ST150..SG MY ROAD	09/1987 - 04/1988	1
82210C - FUSIBLE LINK
90982-08203	AT160,CT150,ST162 80A,ｵｽ端子,黒,80A	05/1984 - 04/1988	1
90982-08188	AT15#,160,CT150,ST150,162 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,TYPE A	05/1984 - 04/1988	2
90982-08202	CT150 60A,ｵｽ端子,黄,60A	05/1984 - 04/1988	1
82345 - DIODE
82345-12020	CT150..SG;AT150,ST150 NO.3	05/1984 - 05/1986	3
82823 - CAP, TERMINAL, NO.1
82823-20040	AT15#,160,CT150,ST150 ALTERNATOR	05/1984 - 08/1986	1
82823-20040	CT150 ALTERNATOR	08/1986 - 04/1988	1
82823-20030	AT15#,CT150,ST150 STARTER	05/1984 - 04/1988	1
82823 - CAP, TERMINAL, NO.1
82823-20040	AT15#,160,CT150,ST150 ALTERNATOR	05/1984 - 08/1986	1
82823-20040	CT150 ALTERNATOR	08/1986 - 04/1988	1
82823-20030	AT15#,CT150,ST150 STARTER	05/1984 - 04/1988	1
Common parts
90119-06005
Linked diagrams
8201

ILLUST NO. 1 OF 5(8610- )CT150

Click highlighted areas on diagram

Part #	Description	Period	Qty
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-20040	CT150	05/1984 - 04/1988	1
82111 - WIRE, ENGINE ROOM MAIN
82111-20380	CT150	05/1984 - 08/1985	1
82111-20680	CT150	05/1986 - 04/1988	1
82111-20381	CT150	08/1985 - 05/1986	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-20070	CT150;AT15#,ST150..SE,ST	05/1984 - 05/1986	1
82112-20070	CT150..SG	05/1986 - 04/1988	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-32010	AT15#,CT150,ST150	05/1984 - 04/1988	1
82121 - WIRE, ENGINE
82121-2B160	CT150..4FC	05/1986 - 10/1986	1
82121-2B161	CT150..4FC	10/1986 - 04/1988	1
82121-20350	CT150 COLD SPEC	05/1984 - 08/1985	1
82121-20341	CT150	08/1985 - 10/1985	1
82121-20340	CT150	05/1984 - 08/1985	1
82121-2B091	CT150..4FC	10/1985 - 05/1986	1
82121-20351	CT150 COLD SPEC	08/1985 - 10/1985	1
82121-20352	CT150 COLD SPEC	10/1985 - 05/1986	1
82121-2B171	CT150 COLD SPEC	10/1986 - 04/1988	1
82121-2B170	CT150 COLD SPEC	05/1986 - 10/1986	1
82124 - WIRE, ENGINE, NO.4
82124-12020	CT150	05/1984 - 04/1988	1
82131 - WIRE, COWL
82131-2B150	CT150..SG	05/1984 - 10/1984	1
82131-2B151	CT150..SG	10/1984 - 09/1985	1
82131-2D161	CT150,ST150..SG MY ROAD	12/1986 - 04/1987	1
82131-2D161	CT150,ST150..SG W/*PW & MY ROAD	04/1987 - 09/1987	1
82131-2D150	CT150,ST150..SG MY ROAD	04/1987 - 09/1987	1
82131-2B152	CT150..SG	09/1985 - 04/1988	1
82131-2D150	AT151,CT150,ST150..SG,ST	05/1986 - 04/1988	1
82131-2D162	CT150,ST150..SG MY ROAD	09/1987 - 04/1988	1
82210C - FUSIBLE LINK
90982-08203	AT160,CT150,ST162 80A,ｵｽ端子,黒,80A	05/1984 - 04/1988	1
90982-08188	AT15#,160,CT150,ST150,162 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,TYPE A	05/1984 - 04/1988	2
90982-08202	CT150 60A,ｵｽ端子,黄,60A	05/1984 - 04/1988	1
82345 - DIODE
82345-12020	CT150..SG;AT150,ST150 NO.3	05/1984 - 05/1986	3
82823 - CAP, TERMINAL, NO.1
82823-20040	AT15#,160,CT150,ST150 ALTERNATOR	05/1984 - 08/1986	1
82823-20040	CT150 ALTERNATOR	08/1986 - 04/1988	1
82823-20030	AT15#,CT150,ST150 STARTER	05/1984 - 04/1988	1
82823 - CAP, TERMINAL, NO.1
82823-20040	AT15#,160,CT150,ST150 ALTERNATOR	05/1984 - 08/1986	1
82823-20040	CT150 ALTERNATOR	08/1986 - 04/1988	1
82823-20030	AT15#,CT150,ST150 STARTER	05/1984 - 04/1988	1
Common parts
90119-06005
Linked diagrams
8201
