CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

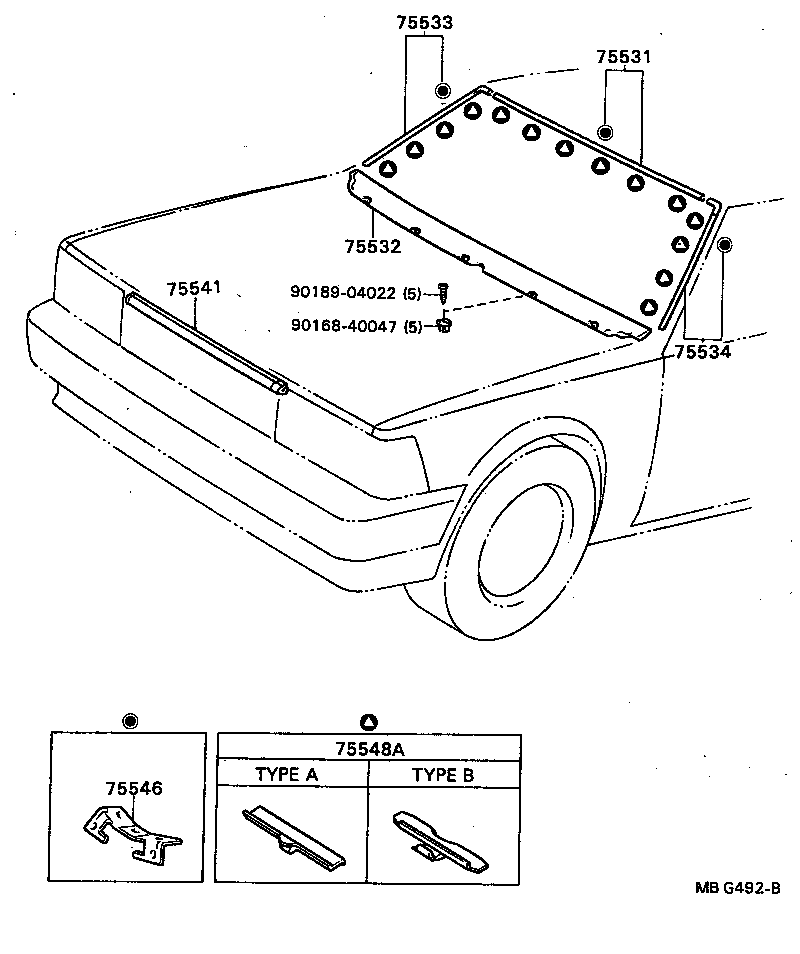

Click highlighted areas on diagram

diagram 75531 75532 75533 75534 75541 75546 75548A 9016840047 9018904022
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-20190

AT15#,CT150,ST150..DX,SE,SG

 1
75531-20210

AT15#,CT150,ST150..DX,SE,SG

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-20140

AT15#,160,CT150,ST150,162

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-20190

AT15#,CT150,ST150..DX,SE,SG

 1
75533-20230

AT15#,CT150,ST150..DX,SE,SG

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-20240

AT15#,CT150,ST150..DX,SE,SG

 1
75534-20200

AT15#,CT150,ST150..DX,SE,SG

 1
75541 - MOULDING, HOOD, FRONT
75771-20040

AT15#,160,CT150,ST150,162

 1
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-20030

AT15#,160,CT150,ST150,162

SIDE

 4
75546-20030

AT15#,CT150,ST150

SIDE

 6
75545-20020

AT15#,160,CT150,ST150,162

UPR

 4
75545-20020

AT15#,CT150,ST150

UPR

 5
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-32010

AT15#,160,CT150,ST150,162

TYPE A

 11
75548-32010

AT15#,CT150,ST150

 14
75548-22060

AT15#,160,CT150,ST150,162

TYPE B

 11
Common parts
90168-40047
90189-04022
