CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

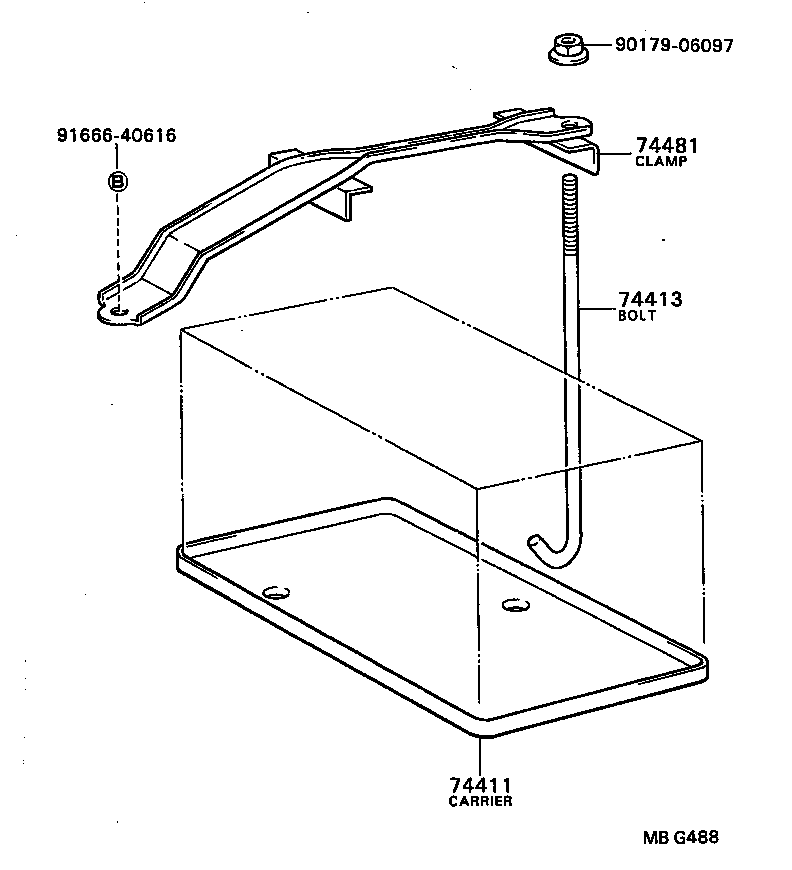

Click highlighted areas on diagram

diagram 74411 74413 74481 9017906097 9166640616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14040

CT150

NX120-7L

 1
74431-14030

CT150

55D23L

 1
74413 - BOLT, BATTERY CLAMP
74451-16010

AT15#,160,CT150,ST150,162

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-20120

CT150

 1
Common parts
90179-06097
91666-40616
