CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

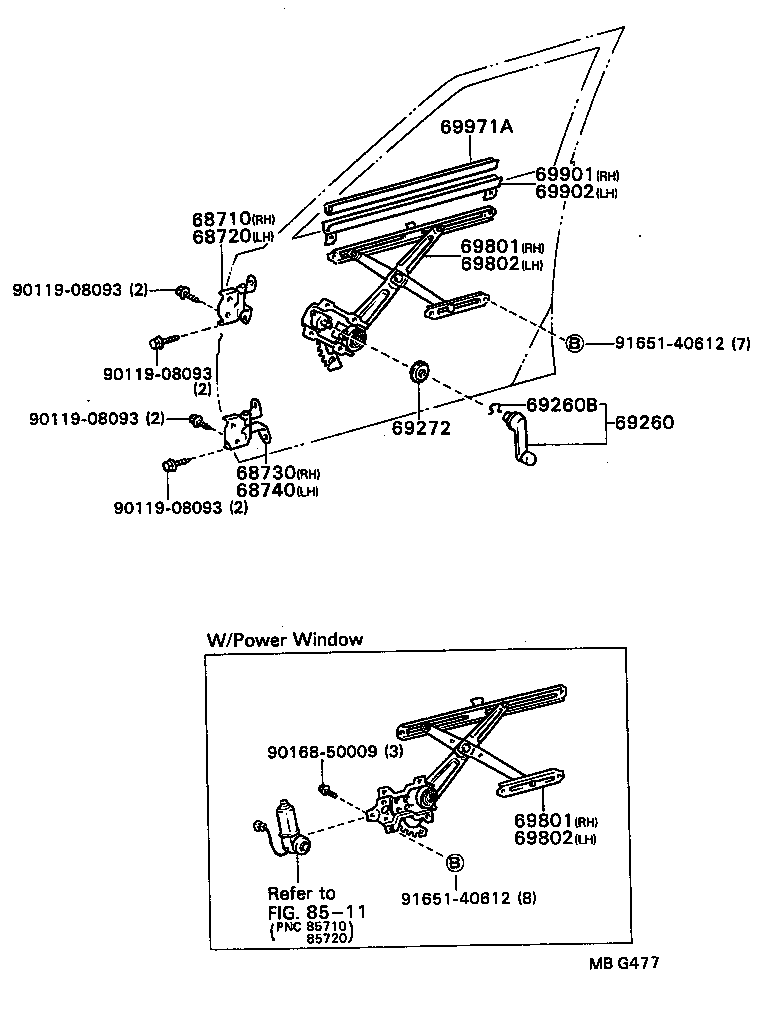

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9011908093 9011908093 9011908093 9011908093 9016850009 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14030

AT15#,160,CT150,ST150,162

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14030

AT15#,160,CT150,ST150,162

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14030

AT15#,160,CT150,ST150,162

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14030

AT15#,160,CT150,ST150,162

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402004

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 2
69260-1402010

AT15#,CT150,ST150..SE,SG,ST

BEIGE,DARK BEIGE,TRIM4#

 2
69260-1402036

AT15#,CT150..SG

SEPIA BROWN,BROWN,TRIM4#

 2
69260-1402043

AT15#,160,CT150,ST150,162

GRAY,MEDIUM GRAY,TRIM1#

 2
69260-1402033

AT15#,160,CT150,ST150

SHADOW GRAY,GRAY,TRIM1#

 2
69260-1402036

AT15#,CT150..DX,SG

SEPIA BROWN,BROWN,TRIM4#

 2
69260-1402054

AT15#,CT150,ST150..SE,SG,ST

BLUE,DARK BLUE,TRIM8#

 2
69260-1402020

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AT15#,160,CT150,ST150

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-22010

AT15#,160,CT150,ST150

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-20100

AT15#,160,CT150,ST150

 1
69801-20120

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

W/*PW

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-20100

AT15#,160,CT150,ST150

 1
69801-20120

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

W/*PW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20100

AT15#,160,CT150,ST150

 1
69802-20120

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

W/*PW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20100

AT15#,160,CT150,ST150

 1
69802-20120

AT15#,160,CT150,ST150,162..GT,GTR,SE,SG,ST

W/*PW

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-20100

AT15#,160,CT150,ST150,162

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-20100

AT15#,160,CT150,ST150,162

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-22010

AT15#,160,CT150,ST150,162

 2
Common parts
90119-08093
90168-50009
91651-40612
Linked diagrams
8511
