CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

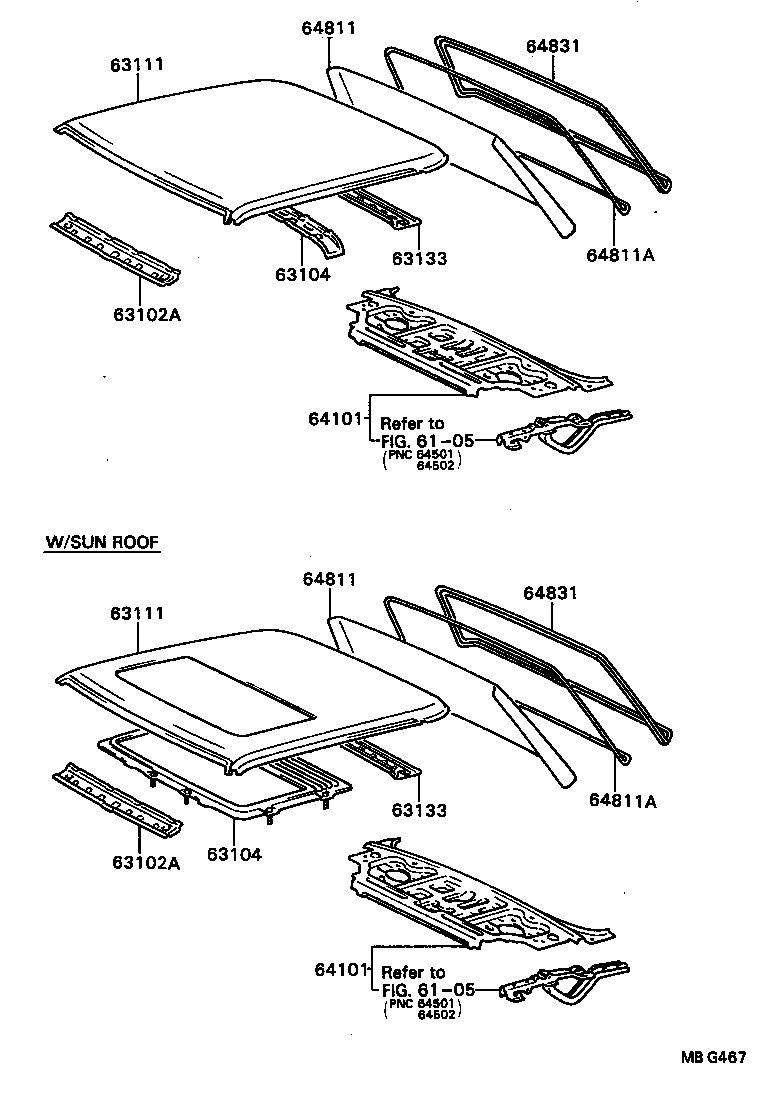

ILLUST NO. 1 OF 2(8405- )

Click highlighted areas on diagram

diagram 6105 6105 63102A 63102A 63104 63104 63111 63111 63133 63133 64101 64101 64811 64811 64811A 64811A 64831 64831
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20060

AT15#,160,CT150,ST150,162

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20060

AT15#,160,CT150,ST150,162

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-20070

AT15#,160,CT150,ST150,162

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-20070

AT15#,160,CT150,ST150,162

 1
63111 - PANEL, ROOF
63111-20190

AT15#,CT150,ST150

 1
63111 - PANEL, ROOF
63111-20190

AT15#,CT150,ST150

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-20100

AT15#,160,CT150,ST150,162

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-20100

AT15#,160,CT150,ST150,162

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20200

AT15#,160,CT150,ST150,162

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20200

AT15#,160,CT150,ST150,162

 1
64811 - GLASS, BACK WINDOW
64811-20570

AT160,CT150..GT,SG

*EHTT,T=3.5

 1
64811-20570

AT15#,160,CT150,ST150..DX,GT,SG,ST

*EHTT,T=3.5

 1
64811-20680

AT150,CT150,ST150..SG

*EHTT,T=3.5,BRONZE

 1
64811 - GLASS, BACK WINDOW
64811-20570

AT160,CT150..GT,SG

*EHTT,T=3.5

 1
64811-20570

AT15#,160,CT150,ST150..DX,GT,SG,ST

*EHTT,T=3.5

 1
64811-20680

AT150,CT150,ST150..SG

*EHTT,T=3.5,BRONZE

 1
64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP
64814-20020

AT15#,160,CT150,ST150,162

 1
64811A - SEAL, BACK WINDOW GLASS WEATHERSTRIP
64814-20020

AT15#,160,CT150,ST150,162

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-20050

AT15#,160,CT150,ST150,162

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-20050

AT15#,160,CT150,ST150,162

 1
Linked diagrams
6105
