CT150-AEPFS (1984)
Toyota Carina Ff
(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61045 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH | ||||
| 61045-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61046 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH | ||||
| 61046-20010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-20370 |
AT160,CT150..GT,SG |
1 | ||
| 61021-20370 |
AT15#,160,CT150,ST150..DX,GT,SG,ST |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-20340 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61118B - SEAL, FRONT BODY PILLAR TO FRONT FENDER, RH | ||||
| 61118-20020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61119B - SEAL, FRONT BODY PILLAR TO FRONT FENDER, LH | ||||
| 61119-20020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20130 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20130 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20180 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20170 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61265-20050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61266-20050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-20200 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-20210 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-20070 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-20900 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-20070 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-20900 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-20160 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-20160 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-2B050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-20870 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-20150 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-20070 |
AT15#,CT150,ST150 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-20090 |
AT15#,CT150,ST150 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-20050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-20050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-20180 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-20190 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61707B - SUPPORT, JACK CARRIER | ||||
| 58792-20020 |
AT15#,CT150,ST150 |
1 | ||
| 58792-20021 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61733B - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61734B - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20060 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-20040 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-20030 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61747B - REINFORCEMENT, ROOF SIDE, INNER REAR, RH | ||||
| 61747-20050 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61748-20040 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20090 |
AT15#,160,CT150,ST150,162 |
6 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20090 |
AT15#,160,CT150,ST150,162 |
6 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61824-12010 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 64121E - BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64121-20020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 64122E - BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64122-20020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-20100 |
AT15#,CT150,ST150 |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-20110 |
AT15#,CT150,ST150 |
1 | ||
| 64226 - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-22020 |
AT15#,160,CT150,ST150,162 |
2 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-20100 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-20100 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 64314A - REINFORCEMENT, PACKAGE TRAY BRACKET, RH | ||||
| 64314-20060 |
AT15#,CT150,ST150 |
1 | ||
| 64315A - REINFORCEMENT, PACKAGE TRAY BRACKET, LH | ||||
| 64315-20050 |
AT15#,CT150,ST150 |
1 | ||
| Common parts | ||||
| 90159-60245 | ||||
| 90167-50018 | ||||
| 90189-05041 | ||||
| 90189-06048 | ||||
| 90189-06055 | ||||
| 90467-07048 | ||||
| 90467-08054 | ||||
| 90467-09048 | ||||
| 90467-11026 | ||||
| 90950-01025 | ||||
| 90950-01065 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
| 91631-40612 | ||||

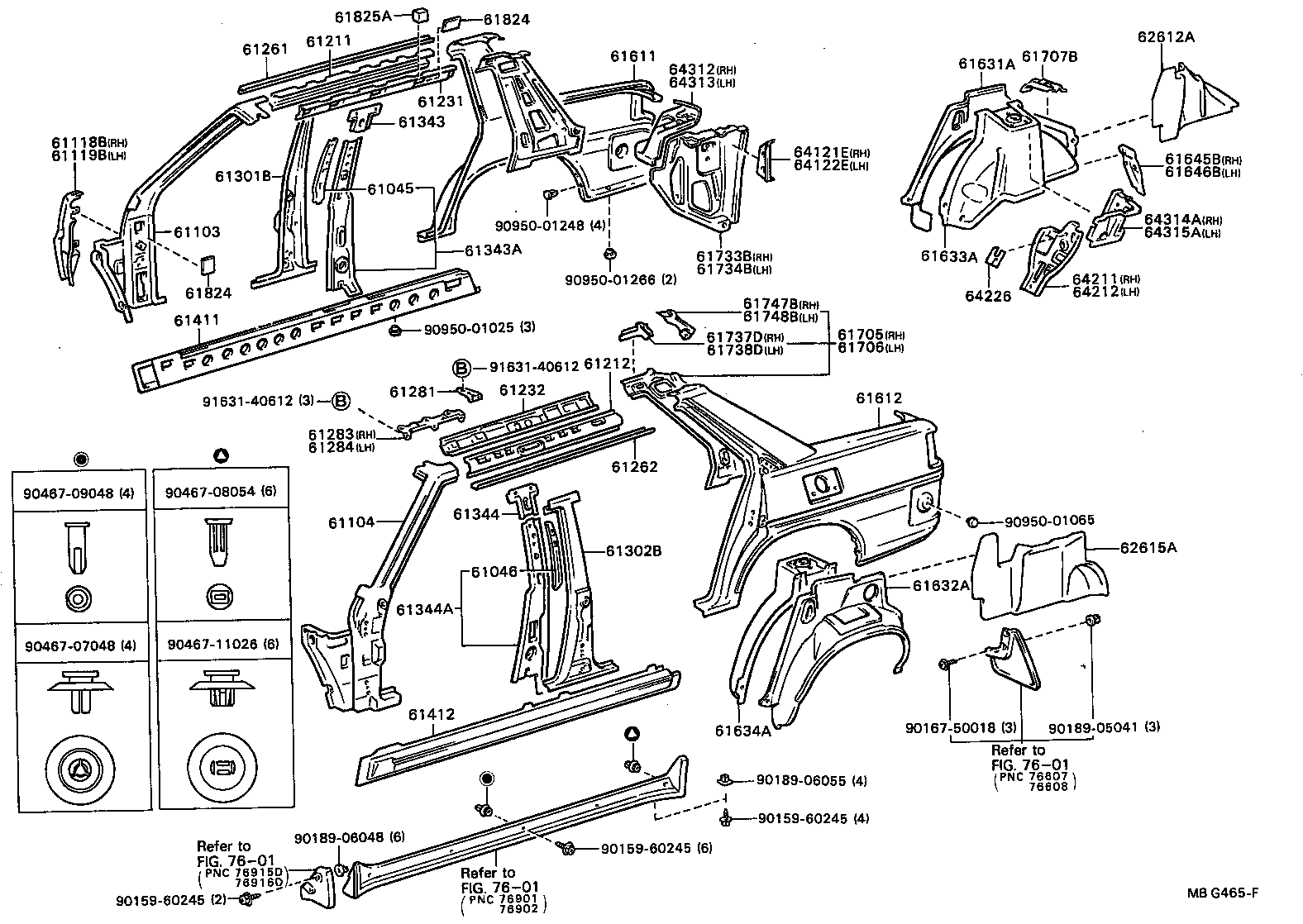

| Linked diagrams | ||||
| 7601 | ||||
