CT150-AEPFS (1984)
Toyota Carina Ff
Production
May 1984
-
Apr 1988
Engine
2CL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8405-8605)

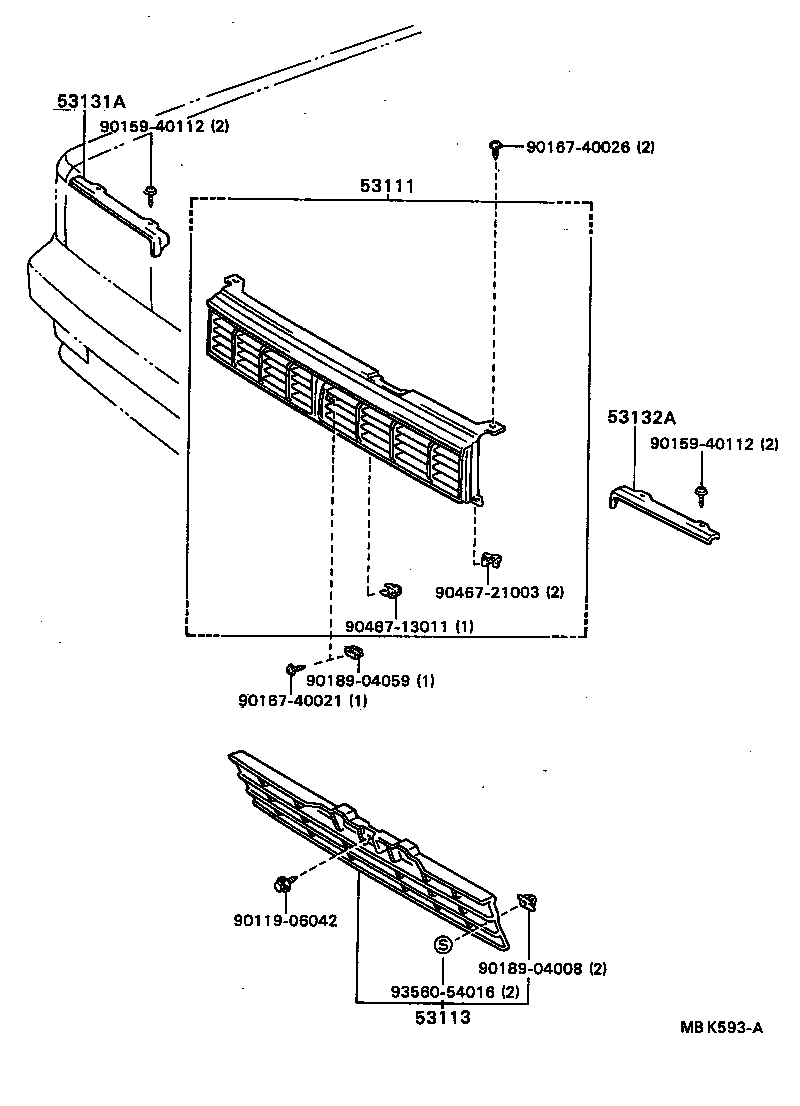

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-29155 |
AT15#,CT150..DX,SG |
1 | ||
| 53101-20220 |
AT15#,CT150,ST150..SG |
1 | ||
| 53121B - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 53121-20140 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-29395 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53131-20220 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-29375 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53132-20190 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90159-40112 | ||||
| 90167-40021 | ||||
| 90167-40026 | ||||
| 90189-04059 | ||||
| 90467-13011 | ||||
| 90467-21003 | ||||
(8605- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-29155 |
AT15#,CT150..DX,SG |
1 | ||
| 53101-20220 |
AT15#,CT150,ST150..SG |
1 | ||
| 53113 - GRILLE, RADIATOR, LH OR LOWER | ||||
| 53112-20100 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-29395 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53131-20220 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-29375 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 53132-20190 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90119-06042 | ||||
| 90159-40112 | ||||
| 90167-40021 | ||||
| 90167-40026 | ||||
| 90189-04008 | ||||
| 90189-04059 | ||||
| 90467-13011 | ||||
| 90467-21003 | ||||
| 93560-54016 | ||||
