CT150-AEPFS (1984)
Toyota Carina Ff

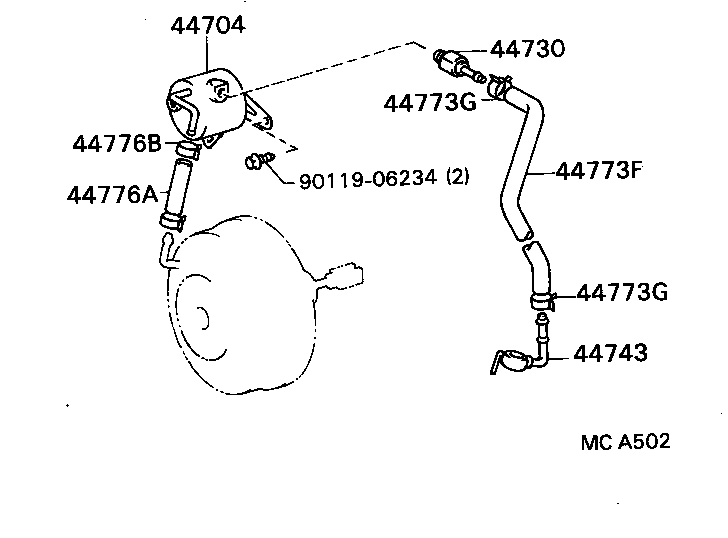

ILLUST NO. 2 OF 2(8405- )CT150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-20010 |
CT150 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
CT150 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09080 |
CT150 |
1 | ||
| 90405-09075 |
CT150 W/COOLER,COLD SPEC |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-20380 |
CT150 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AT151,160,CT150,ST150,162 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AT151,160,CT150,ST150,162 |
2 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 90445-17057 |
CT150 |
1 | ||
| 44776B - CLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) | ||||
| 90467-16002 |
CT150 |
2 | ||
| Common parts | ||||
| 90119-06234 | ||||
ILLUST NO. 1 OF 2(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20350 |
CT150 JKC |
1 | ||
| 04443-20490 |
CT150 JKC |
1 | ||
| 04443-20430 |
CT150 AISIN |
1 | ||
| 04443-20470 |
CT150 AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT15#,160,CT150,ST150,162 JKC |
1 | ||
| 44606-12520 |
AT15#,160,CT150,ST150,162 AISIN |
1 | ||
| 44606-12520 |
AT151,160,CT150,ST150,162 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44621-28120 |
AT151,160,CT150,ST150,162 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44628-28120 |
AT151,160,CT150,ST150,162 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44642-32030 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44642-32030 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44635-28120 |
AT151,160,CT150,ST150,162 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-20350 |
CT150 JKC |
1 | ||
| 04443-20490 |
CT150 JKC |
1 | ||
| 04443-20430 |
CT150 AISIN |
1 | ||
| 04443-20470 |
CT150 AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
AT15#,160,CT150,ST150,162 JKC |
1 | ||
| 44606-12520 |
AT15#,160,CT150,ST150,162 AISIN |
1 | ||
| 44606-12520 |
AT151,160,CT150,ST150,162 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20820 |
AT151,CT150,ST150 AISIN |
1 | ||
| 44610-20680 |
AT15#,CT150,ST150 |
1 | ||
| 44610-20820 |
AT15#,CT150,ST150 AISIN |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
AT15#,CT150,ST150 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44673-32040 |
AT15#,CT150,ST150 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
AT15#,160,CT150,ST150,162 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
