Toyota Carina ff CT150 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-12020	AT15#,160,CT150,ST150..4FC	05/1984 - 01/1988	1
35505-12030	AT15#,160,CT150,ST150..4FC	01/1988 - 04/1988	1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-12020	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006	AT15#,160,CT150,ST150,162..ATM	05/1984 - 04/1988	1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-11001	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)
90201-12028	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35554 - ROD, MANUAL VALVE CONNECTING
35554-12011	AT15#,160,CT150,ST150..4FC	06/1985 - 04/1988	1
35554-12010	AT15#,CT150,ST150..4FC	05/1984 - 06/1985	1
35554A - RING, E (FOR MANUAL VALVE CONNECTING ROD)
96160-00400	AT15#,160,CT150,ST150..4FC	06/1985 - 04/1988	1
35556 - SHAFT, PARKING LOCK PAWL
35556-12020	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35557 - PAWL, PARKING LOCK
35557-12020	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21003	AT15#,160,CT150,ST150..4FC	12/1984 - 04/1988	1
90508-26058	AT15#,CT150,ST150..4FC	05/1984 - 12/1984	1
35558 - CLAMP, PAWL SHAFT
35558-12010	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-20130	AT15#,160,CT150,ST150..4FC	08/1985 - 04/1988	1
35572-12060	AT15#,CT150,ST150..4FC	05/1984 - 08/1985	1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-20130	AT15#,160,CT150,ST150..4FC	08/1985 - 04/1988	1
35572-12060	AT15#,CT150,ST150..4FC	05/1984 - 08/1985	1
35585 - ROD, PARKING LOCK
35501-12010	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35593 - SLEEVE, CAM GUIDE
35593-12010	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35596 - PLATE, PAWL STOPPER
35596-12010	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068	AT15#,160,CT150,ST150..4FC 8−1.25PX35−30,8-1.25PX35-30	05/1984 - 04/1988	1
90105-08070	AT15#,160,CT150,ST150..4FC 8−1.25PX17−13.5,8-1.25PX17-13.5	05/1984 - 04/1988	1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068	AT15#,160,CT150,ST150..4FC 8−1.25PX35−30,8-1.25PX35-30	05/1984 - 04/1988	1
90105-08070	AT15#,160,CT150,ST150..4FC 8−1.25PX17−13.5,8-1.25PX17-13.5	05/1984 - 04/1988	1
35597 - SLEEVE, SPRING GUIDE
35597-12010	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
35598 - SLEEVE, PARKING LOCK
35598-12010	AT15#,160,CT150,ST150..4FC	05/1984 - 04/1988	1
Common parts
91611-40610
94110-50800
94512-00800

Part #	Description	Period	Qty
35520 - CABLE ASSY, THROTTLE
35520-20130	CT150..4FC	05/1984 - 04/1988	1
35520 - CABLE ASSY, THROTTLE
35520-20130	CT150..4FC	05/1984 - 04/1988	1
35520 - CABLE ASSY, THROTTLE
35520-20130	CT150..4FC	05/1984 - 04/1988	1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-32010	AT15#,160,CT150,ST150,162..4FC	05/1984 - 04/1988	1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-32010	AT15#,160,CT150,ST150,162..4FC	05/1984 - 04/1988	1
35523A - CLAMP, THROTTLE CABLE, NO.1
35523-32010	AT15#,160,CT150,ST150,162..4FC	05/1984 - 04/1988	1
Common parts
90462-10082
90468-18002
91611-60614
91611-60816
91616-60614
94541-00500

CT150-AEPFS (1984)

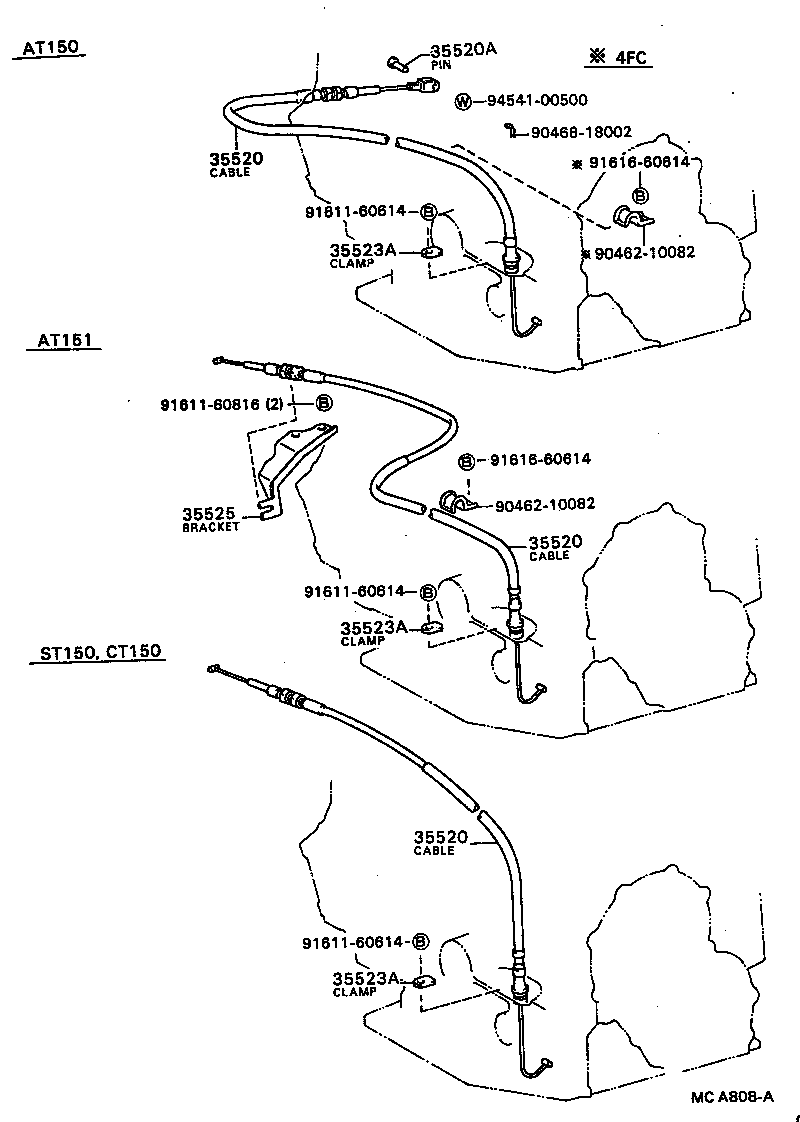

ILLUST NO. 1 OF 2(8405- )AT15#,160,CT150,ST150..4FC

ILLUST NO. 2 OF 2(8405- )AT15#,CT150,ST150..ATM
