CT150-AEPFS (1984)
Toyota Carina Ff
(8405- )2CL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

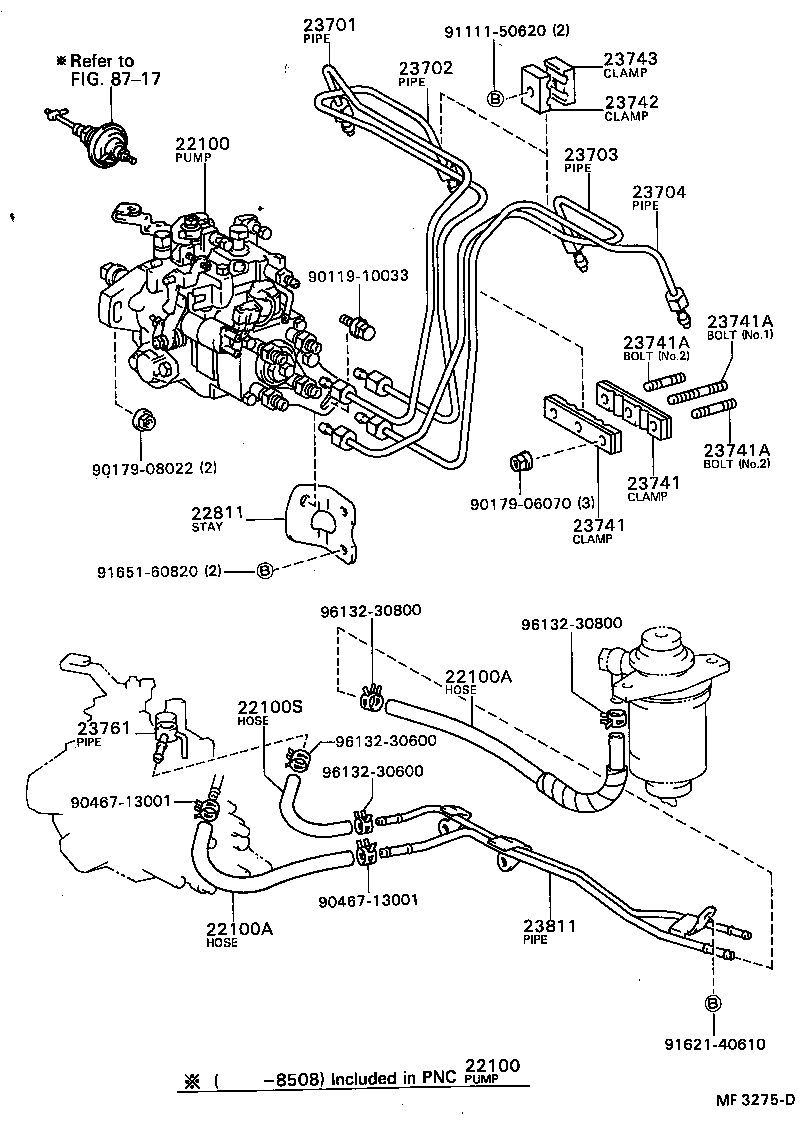

| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-64620 |
2CL..CT150..4FC COLD SPEC |
1 | ||
| 22100-64590 |
2CL..CT150..4FC |
1 | ||
| 22100-6A130 |
2CL..CT150..4FC |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-64620 |
2CL..CT150..4FC COLD SPEC |
1 | ||
| 22100-64590 |
2CL..CT150..4FC |
1 | ||
| 22100-6A130 |
2CL..CT150..4FC |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-08040 |
2CL..CT150 *H,L=340,内径=7.6 |
1 | ||
| 90447-14021 |
2CL..CT150 FILTER TO PIPE |
1 | ||
| 23271-64081 |
2CL..CT150 FILTER TO PIPE |
1 | ||
| 23271-64080 |
2CL..CT150 FILTER TO PIPE |
1 | ||
| 23273-64030 |
2CL..CT150 PIPE TO PUMP |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-08040 |
2CL..CT150 *H,L=340,内径=7.6 |
1 | ||
| 90447-14021 |
2CL..CT150 FILTER TO PIPE |
1 | ||
| 23271-64081 |
2CL..CT150 FILTER TO PIPE |
1 | ||
| 23271-64080 |
2CL..CT150 FILTER TO PIPE |
1 | ||
| 23273-64030 |
2CL..CT150 PIPE TO PUMP |
1 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23274-64010 |
2CL..CT150 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-64010 |
2CL..CT150 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-64060 |
2CL..CT150 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-64060 |
2CL..CT150 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-64060 |
2CL..CT150 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-64060 |
2CL..CT150 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-64010 |
2CL..CT150 |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-64010 |
2CL..CT150 |
2 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 90116-06275 |
2CL..CT150 NO.1 (L=37,S=16&9) |
1 | ||
| 92122-60622 |
2CL..CT150 NO.2 (L=31,S=9&9) |
2 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 90116-06275 |
2CL..CT150 NO.1 (L=37,S=16&9) |
1 | ||
| 92122-60622 |
2CL..CT150 NO.2 (L=31,S=9&9) |
2 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 90116-06275 |
2CL..CT150 NO.1 (L=37,S=16&9) |
1 | ||
| 92122-60622 |
2CL..CT150 NO.2 (L=31,S=9&9) |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23741-54010 |
2CL..CT150 |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23742-54010 |
2CL..CT150 |
2 | ||
| 23761 - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23764-64030 |
2CL..CT150 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-64020 |
2CL..CT150 |
1 | ||
| Common parts | ||||
| 90119-10033 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90467-13001 | ||||
| 91111-50620 | ||||
| 91621-40610 | ||||
| 91651-60820 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 8717 | ||||
