CT150-AEPFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )2CL

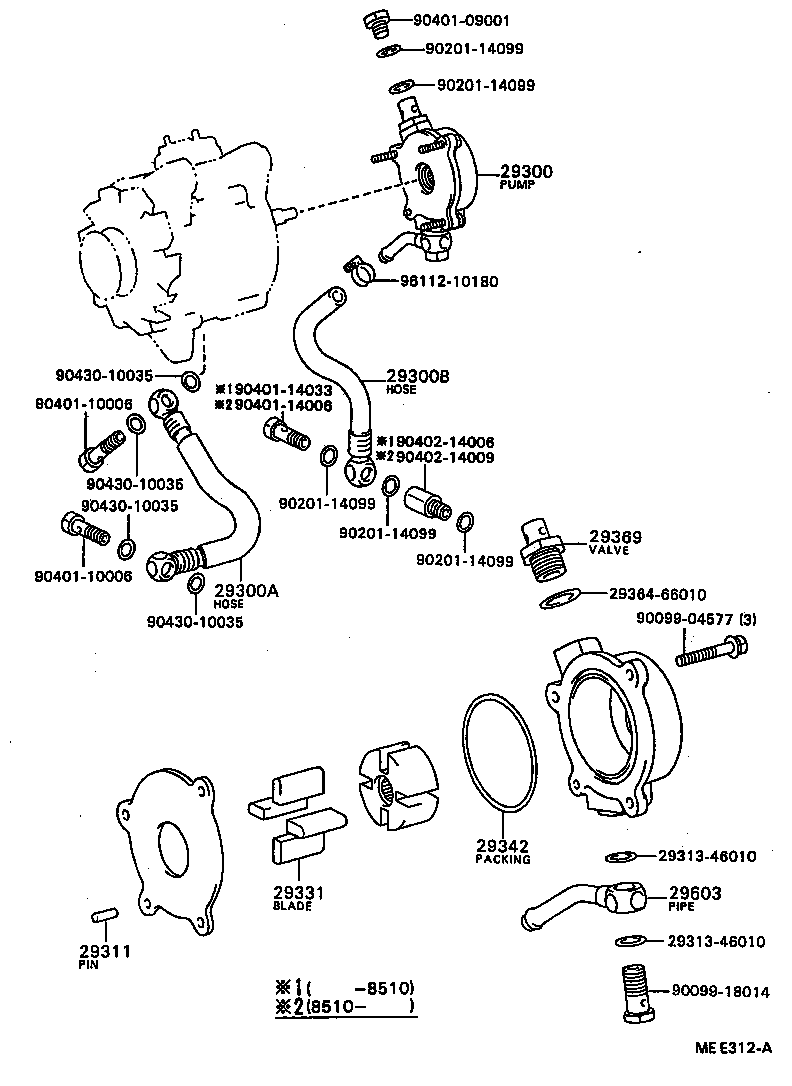

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 2931346010 2931346010 29331 29342 2936466010 29369 29603 9009904577 9009918014 9020114099 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114006 9040114033 9040214006 9040214009 9043010035 9043010035 9043010035 9043010035 9611210180
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-64020

2CL..CT150

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02095

2CL..CT150

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02069

2CL..CT150

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

2CL..CT150

 1
29311-76010

2CL..CT150

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

2CL..CT150

 4
29342 - PACKING, VACUUM PUMP
96740-02063

2CL..CT150

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

2CL..CT150

 1
29603 - PIPE, VACUUM PUMP OIL OUTLET
29365-64020

2CL..CT150

 1
Common parts
29313-46010
29364-66010
90099-04577
90099-18014
90201-14099
90401-09001
90401-10006
90401-14006
90401-14033
90402-14006
90402-14009
90430-10035
96112-10180
