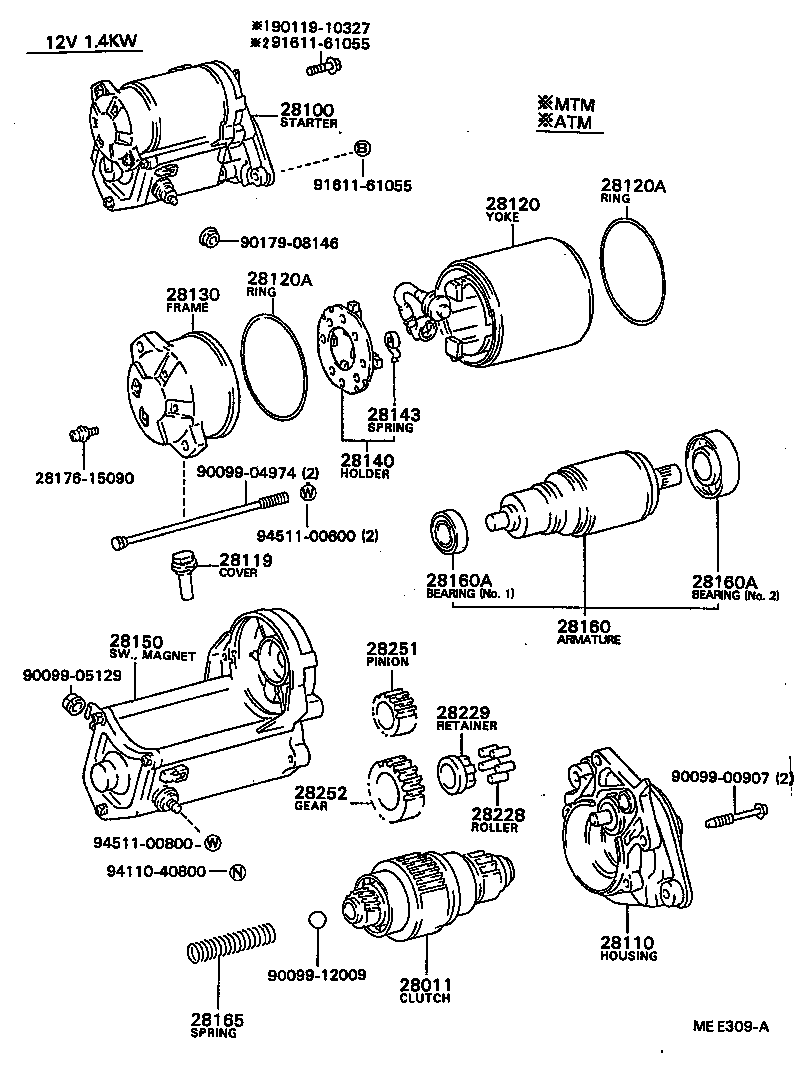

CT150-AEPFS (1984)
Toyota Carina Ff
(8405- )2CL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64010 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28011-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64070 |
2CL..CT150 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-64080 |
2CL..CT150..4FC 12V 2.5KW,12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28110-64070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-15090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28199-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28120-47040 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28120-56081 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2CL..CT150 12V 1.4KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2CL..CT150 12V 1.4KW |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28130-64080 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28140-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28150-64070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28160-47040 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2CL..CT150..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10143 |
2CL..CT150 12V 1.4KW,NO.2 |
1 | ||
| 90099-10144 |
2CL..CT150 12V 1.4KW,NO.1 |
1 | ||
| 90099-10119 |
2CL..CT150..4FC 12V 2.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2CL..CT150..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10143 |
2CL..CT150 12V 1.4KW,NO.2 |
1 | ||
| 90099-10144 |
2CL..CT150 12V 1.4KW,NO.1 |
1 | ||
| 90099-10119 |
2CL..CT150..4FC 12V 2.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28165-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2CL..CT150..4FC 12V 2.5KW |
5 | ||
| 28228-26040 |
2CL..CT150 12V 2.0KW |
1 | ||
| 28228-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28229-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28254-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10327 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

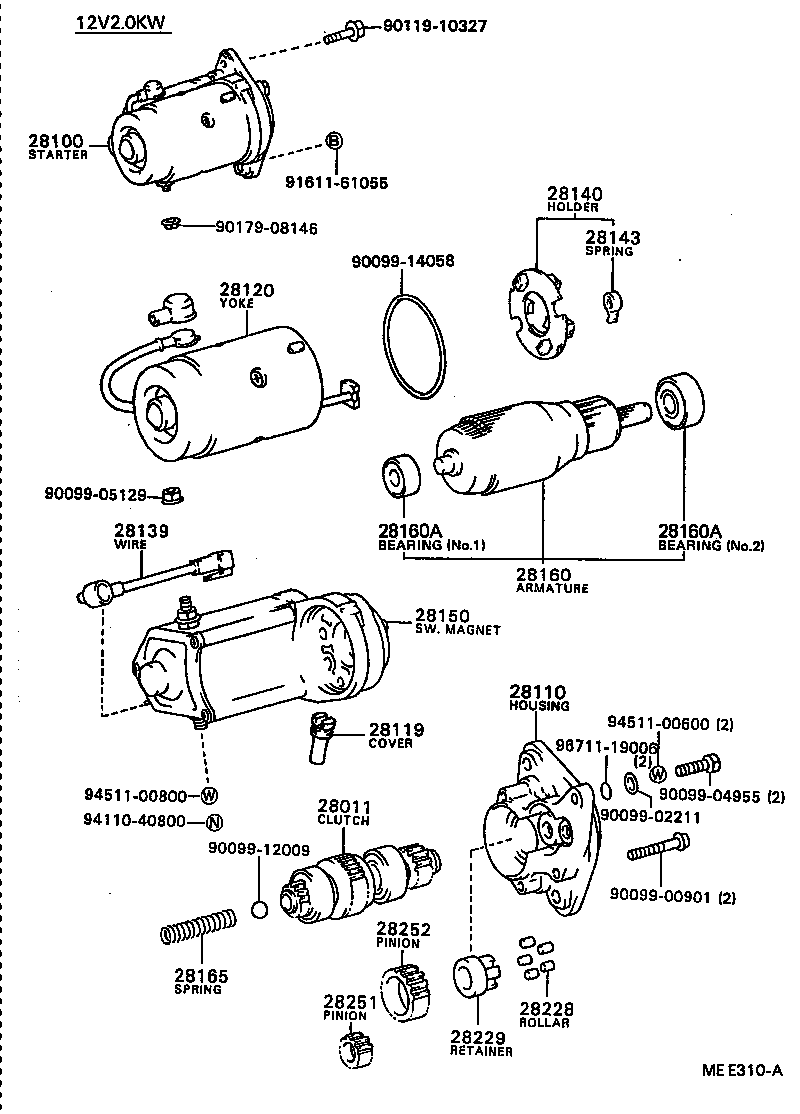

(8405- )2CL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64010 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28011-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64070 |
2CL..CT150 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-64080 |
2CL..CT150..4FC 12V 2.5KW,12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28110-64070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-15090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28199-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28120-47040 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28120-56081 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28140-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28150-64070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28160-47040 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2CL..CT150..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10143 |
2CL..CT150 12V 1.4KW,NO.2 |
1 | ||
| 90099-10144 |
2CL..CT150 12V 1.4KW,NO.1 |
1 | ||
| 90099-10119 |
2CL..CT150..4FC 12V 2.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2CL..CT150..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10143 |
2CL..CT150 12V 1.4KW,NO.2 |
1 | ||
| 90099-10144 |
2CL..CT150 12V 1.4KW,NO.1 |
1 | ||
| 90099-10119 |
2CL..CT150..4FC 12V 2.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28165-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2CL..CT150..4FC 12V 2.5KW |
5 | ||
| 28228-26040 |
2CL..CT150 12V 2.0KW |
1 | ||
| 28228-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28229-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28254-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| Common parts | ||||
| 90099-00901 | ||||
| 90099-02211 | ||||
| 90099-04955 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-10327 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
(8405- )2CL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64010 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28011-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64070 |
2CL..CT150 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-64080 |
2CL..CT150..4FC 12V 2.5KW,12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28110-64070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-15090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28199-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28120-47040 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28120-56081 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28130-64080 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28140-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64030 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28150-64070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28160-47040 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2CL..CT150..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10143 |
2CL..CT150 12V 1.4KW,NO.2 |
1 | ||
| 90099-10144 |
2CL..CT150 12V 1.4KW,NO.1 |
1 | ||
| 90099-10119 |
2CL..CT150..4FC 12V 2.5KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2CL..CT150..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10143 |
2CL..CT150 12V 1.4KW,NO.2 |
1 | ||
| 90099-10144 |
2CL..CT150 12V 1.4KW,NO.1 |
1 | ||
| 90099-10119 |
2CL..CT150..4FC 12V 2.5KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28165-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28182-64080 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2CL..CT150..4FC 12V 2.5KW |
5 | ||
| 28228-26040 |
2CL..CT150 12V 2.0KW |
1 | ||
| 28228-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| 28229-26040 |
3ALU,4A#,2CL,1SILU,3SGELU..AT15#,160,CT150,ST150,162 12V 1.0KW,1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
2CL..CT150 12V 1.4KW |
1 | ||
| 28254-77090 |
2CL..CT150..4FC 12V 2.5KW |
1 | ||
| Common parts | ||||
| 28222-77090 | ||||
| 90092-21001 | ||||
| 90099-00951 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04967 | ||||
| 90099-12009 | ||||
| 90099-64080 | ||||
| 91611-61055 | ||||
| 91651-61016 | ||||
| 93319-15008 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
