Toyota Carina ff CT150 HEATING & AIR CONDITIONING - VACUUM PIPING

Manufacturers Home
Toyota
JP
CARINA FF
CT150-AEPES (1984)
8717 - HEATING & AIR CONDITIONING - VACUUM PIPING

CT150-AEPES (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988

Engine 2CL

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

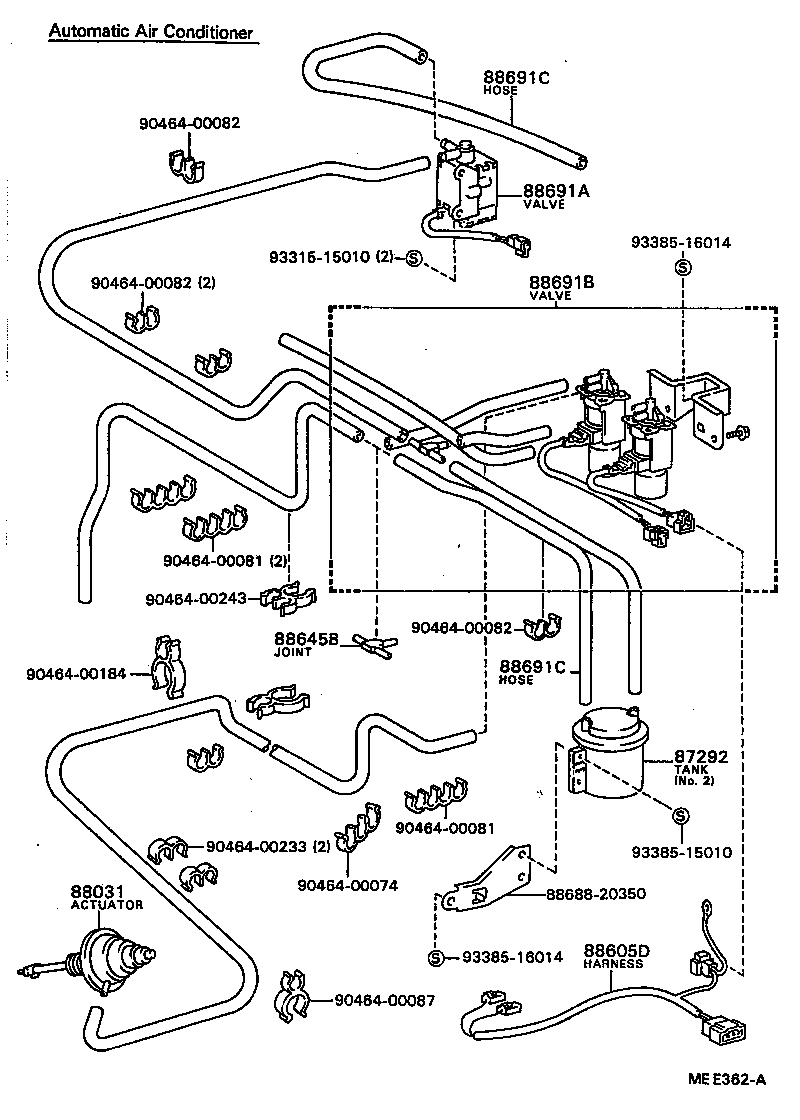

(8405-8605)CT150

Click highlighted areas on diagram

Part #	Description	Period	Qty
87292 - TANK, VACUUM
88683-16010	AT15#,160,CT150,ST150..GT,SE,ST W/*AAC,NO.2	05/1986 - 04/1988	1
88683-16010	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST W/*AAC,NO.2	05/1984 - 05/1986	1
88031 - ACTUATOR SET, IDLE-UP
88031-30070	CT150	05/1984 - 05/1987	1
88031-12150	CT150	05/1987 - 04/1988	1
88605D - WIRE, AIR CONDITIONER
88605-20400	AT15#,CT150,ST150..SE,ST	05/1984 - 04/1988	1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005	AT15#,CT150,ST150,162 3 WAY	05/1984 - 04/1988	2
88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)
88690-20490	AT15#,160,CT150,ST150..GT,SE,ST	05/1986 - 04/1988	1
88690-20490	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST	05/1984 - 05/1986	1
88691B - VALVE, MAGNET (FOR WATER VALVE)
88690-20600	CT150..SE	05/1984 - 05/1986	1
88690-20760	AT151,CT150,ST150..SE,ST	05/1986 - 04/1988	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130	CT150,ST150..SE *H,L=260,ﾏｰｸ=#1	05/1984 - 05/1986	1
95411-10430	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST MARK=#4,*H,L=120	05/1984 - 05/1986	1
95411-10130	CT150 *H,L=300,ﾏｰｸ=#1	05/1986 - 04/1988	1
95411-10430	AT15#,160,CT150,ST150..GT,SE,ST MARK=#4,H,L=120	05/1986 - 04/1988	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130	CT150,ST150..SE *H,L=260,ﾏｰｸ=#1	05/1984 - 05/1986	1
95411-10430	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST MARK=#4,*H,L=120	05/1984 - 05/1986	1
95411-10130	CT150 *H,L=300,ﾏｰｸ=#1	05/1986 - 04/1988	1
95411-10430	AT15#,160,CT150,ST150..GT,SE,ST MARK=#4,H,L=120	05/1986 - 04/1988	1
Common parts
88688-20350
90464-00074
90464-00081
90464-00082
90464-00087
90464-00184
90464-00233
90464-00243
93315-15010
93385-15010
93385-16014

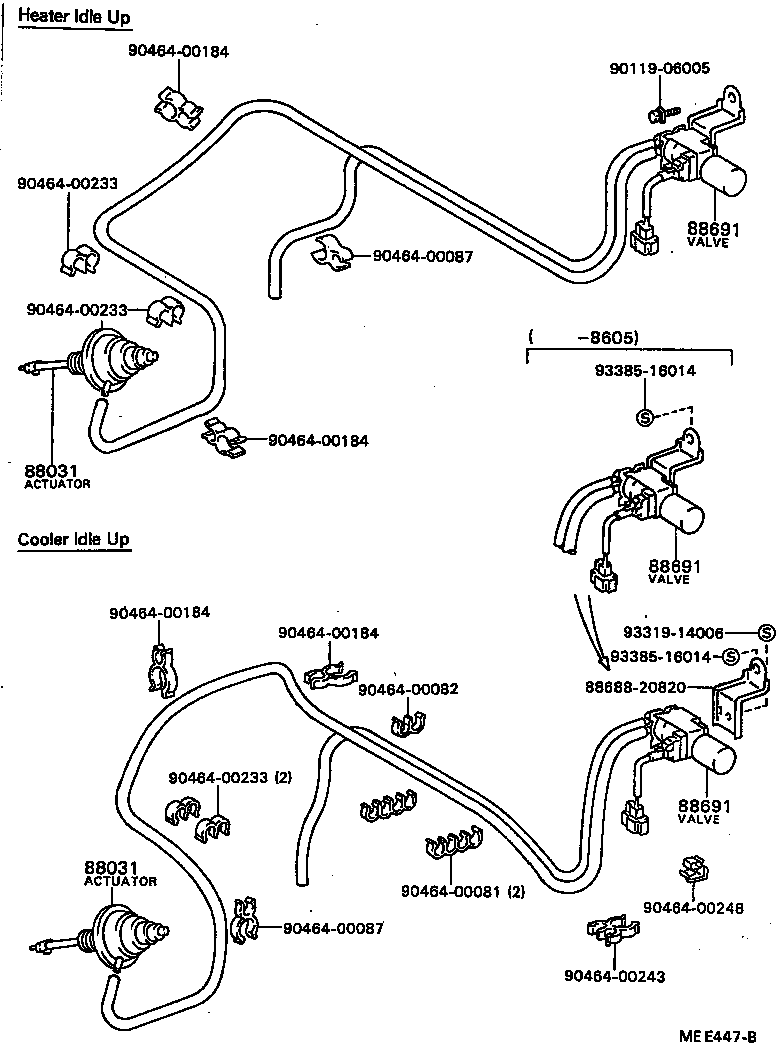

(8405- )CT150

Click highlighted areas on diagram

Part #	Description	Period	Qty
88031 - ACTUATOR SET, IDLE-UP
88031-30070	CT150	05/1984 - 05/1987	1
88031-12150	CT150	05/1987 - 04/1988	1
88031 - ACTUATOR SET, IDLE-UP
88031-30070	CT150	05/1984 - 05/1987	1
88031-12150	CT150	05/1987 - 04/1988	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20500	CT150	05/1984 - 05/1986	1
88690-20780	CT150	05/1986 - 04/1988	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20500	CT150	05/1984 - 05/1986	1
88690-20780	CT150	05/1986 - 04/1988	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20500	CT150	05/1984 - 05/1986	1
88690-20780	CT150	05/1986 - 04/1988	1
Common parts
88688-20820
90119-06005
90464-00081
90464-00082
90464-00087
90464-00184
90464-00233
90464-00243
90464-00248
93319-14006
93385-16014

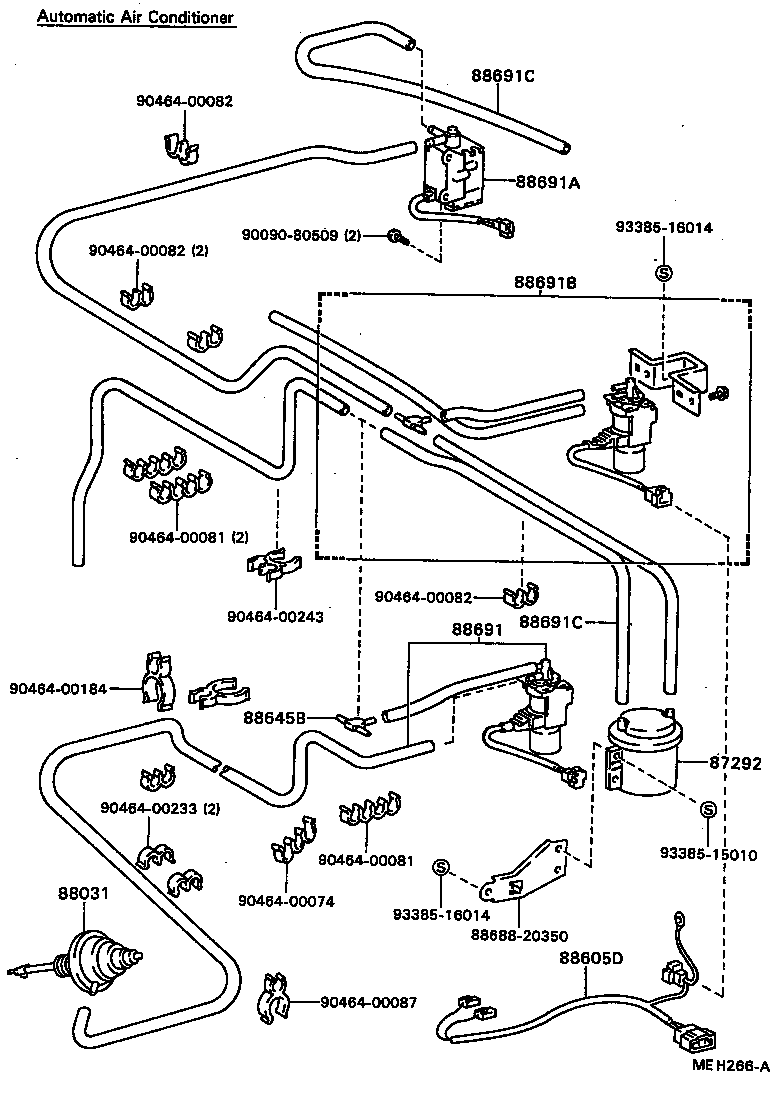

(8605- )CT150

Click highlighted areas on diagram

Part #	Description	Period	Qty
87292 - TANK, VACUUM
88683-16010	AT15#,160,CT150,ST150..GT,SE,ST W/*AAC,NO.2	05/1986 - 04/1988	1
88683-16010	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST W/*AAC,NO.2	05/1984 - 05/1986	1
88031 - ACTUATOR SET, IDLE-UP
88031-30070	CT150	05/1984 - 05/1987	1
88031-12150	CT150	05/1987 - 04/1988	1
88605D - WIRE, AIR CONDITIONER
88605-20400	AT15#,CT150,ST150..SE,ST	05/1984 - 04/1988	1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005	AT15#,CT150,ST150,162 3 WAY	05/1984 - 04/1988	2
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-20500	CT150	05/1984 - 05/1986	1
88690-20780	CT150	05/1986 - 04/1988	1
88691A - VALVE, MAGNET (FOR BLOWER CHANGING-OVER DEVICE)
88690-20490	AT15#,160,CT150,ST150..GT,SE,ST	05/1986 - 04/1988	1
88690-20490	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST	05/1984 - 05/1986	1
88691B - VALVE, MAGNET (FOR WATER VALVE)
88690-20600	CT150..SE	05/1984 - 05/1986	1
88690-20760	AT151,CT150,ST150..SE,ST	05/1986 - 04/1988	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130	CT150,ST150..SE *H,L=260,ﾏｰｸ=#1	05/1984 - 05/1986	1
95411-10430	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST MARK=#4,*H,L=120	05/1984 - 05/1986	1
95411-10130	CT150 *H,L=300,ﾏｰｸ=#1	05/1986 - 04/1988	1
95411-10430	AT15#,160,CT150,ST150..GT,SE,ST MARK=#4,H,L=120	05/1986 - 04/1988	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10130	CT150,ST150..SE *H,L=260,ﾏｰｸ=#1	05/1984 - 05/1986	1
95411-10430	AT15#,160,CT150,ST150,162..GT,GTR,SE,ST MARK=#4,*H,L=120	05/1984 - 05/1986	1
95411-10130	CT150 *H,L=300,ﾏｰｸ=#1	05/1986 - 04/1988	1
95411-10430	AT15#,160,CT150,ST150..GT,SE,ST MARK=#4,H,L=120	05/1986 - 04/1988	1
Common parts
88688-20350
90090-80509
90464-00074
90464-00081
90464-00082
90464-00087
90464-00184
90464-00233
90464-00243
93385-15010
93385-16014

CT150-AEPES (1984)

(8405-8605)CT150

(8405- )CT150

(8605- )CT150
