CT150-AEPES (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

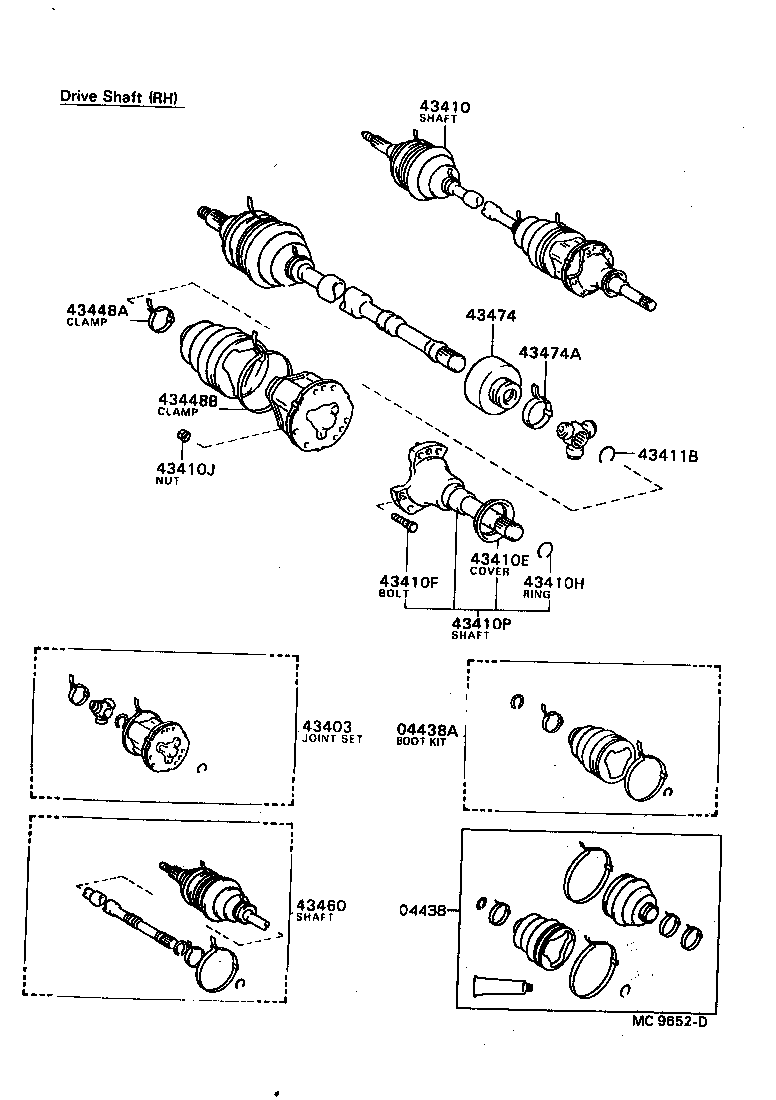

ILLUST NO. 1 OF 2(8405-8510)AT15#,CT150 ; (8510- )AT15#

Click highlighted areas on diagram

diagram 04438 04438A 43403 43410 43410E 43410F 43410H 43410J 43410P 43411B 43448A 43448B 43460 43474 43474A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12030

CT150

LH

 1
04438-20100

CT150

RH

 1
04438-12230

CT150

RH

 1
04438-32021

CT150

LH

 1
04438-12031

CT150,ST150

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-32011

CT150,ST150

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-39016

CT150,ST150

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-20020

CT150

 1
43410-12150

CT150

 1
43410-12070

CT150

 1
43410-12100

CT150

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-32020

CT150,ST150,162

LH

 1
41336-32010

CT150

RH

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

AT15#,CT150,ST150

 12
90114-08006

AT15#,160,CT150,ST150

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

CT150,ST150,162

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

AT15#,CT150,ST150

 12
90179-08053

AT15#,160,CT150,ST150

 12
43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH
41304-20010

CT150

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

CT150,ST150

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CT150,ST150

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CT150,ST150

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29016

CT150

 1
43460-19105

CT150

 1
43460-19135

CT150

 1
43474 - DAMPER, DRIVE SHAFT
43474-12010

AT160,CT150

 1
43474-12020

AT160,CT150

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

AT160,CT150

 1

ILLUST NO. 2 OF 2(8405- )AT15#,160,CT150,ST150

Click highlighted areas on diagram

diagram 04438 04438A 43404 43410E 43410F 43410H 43410J 43411B 43420 43420A 43447A 43447B 43448A 43448B 43470
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12030

CT150

LH

 1
04438-20100

CT150

RH

 1
04438-12230

CT150

RH

 1
04438-32021

CT150

LH

 1
04438-12031

CT150,ST150

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-32011

CT150,ST150

 2
43404 - JOINT SET, FRONT AXLE INBOARD, LH
43403-39016

CT150,ST150

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-32020

CT150,ST150,162

LH

 1
41336-32010

CT150

RH

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

AT15#,CT150,ST150

 12
90114-08006

AT15#,160,CT150,ST150

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

CT150,ST150,162

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

AT15#,CT150,ST150

 12
90179-08053

AT15#,160,CT150,ST150

 12
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

CT150,ST150

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-12070

CT150,ST150

 1
43420-20010

CT150,ST150

 1
43420A - SHAFT ASSY, FRONT DRIVE, LH
41309-32010

CT150,ST150

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CT150,ST150

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CT150,ST150

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CT150,ST150

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CT150,ST150

 2
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29016

CT150,ST150

 1
43470-19105

CT150,ST150

 1

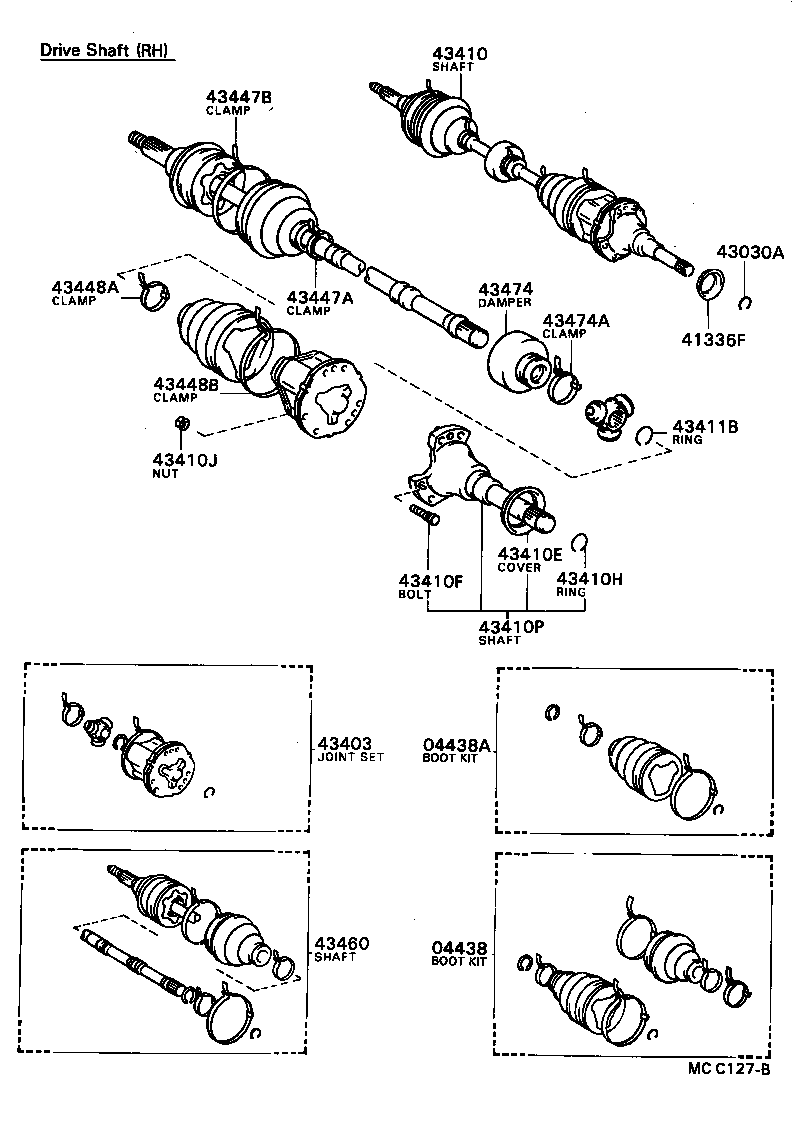

ILLUST NO. 1 OF 2(8508- )AT160 ; (8510- )CT150

Click highlighted areas on diagram

diagram 04438 04438A 41336F 43030A 43403 43410 43410E 43410F 43410H 43410J 43410P 43411B 43447A 43447B 43448A 43448B 43460 43474 43474A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-12030

CT150

LH

 1
04438-20100

CT150

RH

 1
04438-12230

CT150

RH

 1
04438-32021

CT150

LH

 1
04438-12031

CT150,ST150

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-32011

CT150,ST150

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-39016

CT150,ST150

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-20020

CT150

 1
43410-12150

CT150

 1
43410-12070

CT150

 1
43410-12100

CT150

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-32020

CT150,ST150,162

LH

 1
41336-32010

CT150

RH

 1
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

AT15#,CT150,ST150

 12
90114-08006

AT15#,160,CT150,ST150

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-27005

CT150,ST150,162

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

AT15#,CT150,ST150

 12
90179-08053

AT15#,160,CT150,ST150

 12
43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH
41304-20010

CT150

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-22005

CT150,ST150

 2
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

CT150,ST150

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01076

CT150,ST150

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

CT150,ST150

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14020

CT150,ST150

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29016

CT150

 1
43460-19105

CT150

 1
43460-19135

CT150

 1
43474 - DAMPER, DRIVE SHAFT
43474-12010

AT160,CT150

 1
43474-12020

AT160,CT150

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

AT160,CT150

 1
