CT150-AEPES (1984)
Toyota Carina Ff
Production
May 1984
-
Apr 1988
Engine
2CL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )2CL

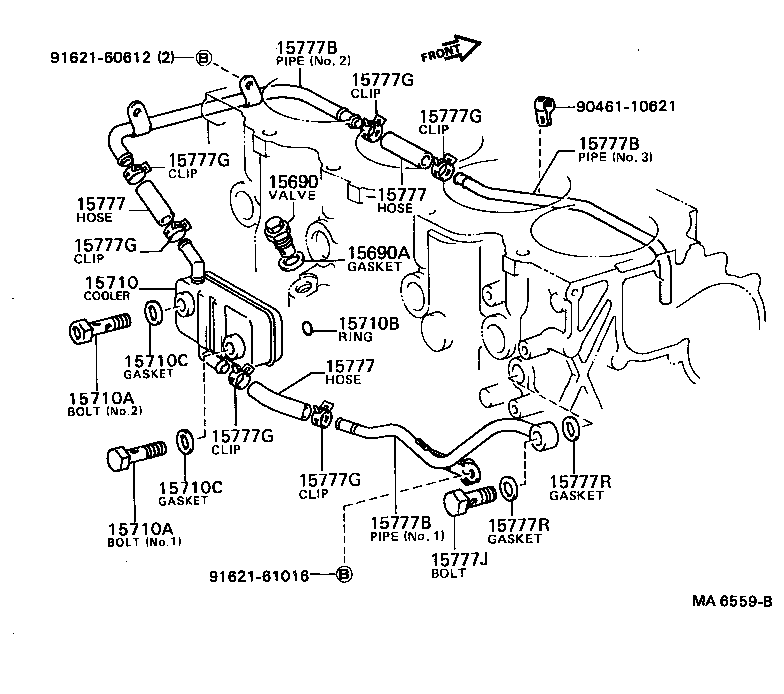

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-64010 |
2CL..CT150 |
1 | ||
| 15690A - GASKET(FOR OIL COOLER RELIEF VALVE) | ||||
| 90430-22003 |
2CL..CT150 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-64010 |
2CL..CT150 |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18009 |
2CL..CT150 NO.1 |
1 | ||
| 90401-18011 |
2CL..CT150 NO.2 |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18009 |
2CL..CT150 NO.1 |
1 | ||
| 90401-18011 |
2CL..CT150 NO.2 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-22002 |
2CL..CT150 |
2 | ||
| 90301-22004 |
2CL..CT150 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
2CL..CT150 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
2CL..CT150 |
2 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90445-21006 |
2CL..CT150 |
3 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90445-21006 |
2CL..CT150 |
3 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90445-21006 |
2CL..CT150 |
3 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15769-64010 |
2CL..CT150 NO.3 |
1 | ||
| 15768-64030 |
2CL..CT150 NO.1 |
1 | ||
| 15768-64031 |
2CL..CT150 NO.1 |
1 | ||
| 15767-64010 |
2CL..CT150 NO.2 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15769-64010 |
2CL..CT150 NO.3 |
1 | ||
| 15768-64030 |
2CL..CT150 NO.1 |
1 | ||
| 15768-64031 |
2CL..CT150 NO.1 |
1 | ||
| 15767-64010 |
2CL..CT150 NO.2 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15769-64010 |
2CL..CT150 NO.3 |
1 | ||
| 15768-64030 |
2CL..CT150 NO.1 |
1 | ||
| 15768-64031 |
2CL..CT150 NO.1 |
1 | ||
| 15767-64010 |
2CL..CT150 NO.2 |
1 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CL..CT150 |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CL..CT150 |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CL..CT150 |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CL..CT150 |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CL..CT150 |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2CL..CT150 |
6 | ||
| 15777J - BOLT, UNION(FOR OIL COOLER PIPE) | ||||
| 90401-20004 |
2CL..CT150 |
1 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20004 |
2CL..CT150 |
2 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20004 |
2CL..CT150 |
2 | ||
| Common parts | ||||
| 90461-10621 | ||||
| 91621-60612 | ||||
| 91621-61016 | ||||
