CT150-AEPES (1984)
Toyota Carina Ff
Production
May 1984
-
Apr 1988
Engine
2CL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )2CL

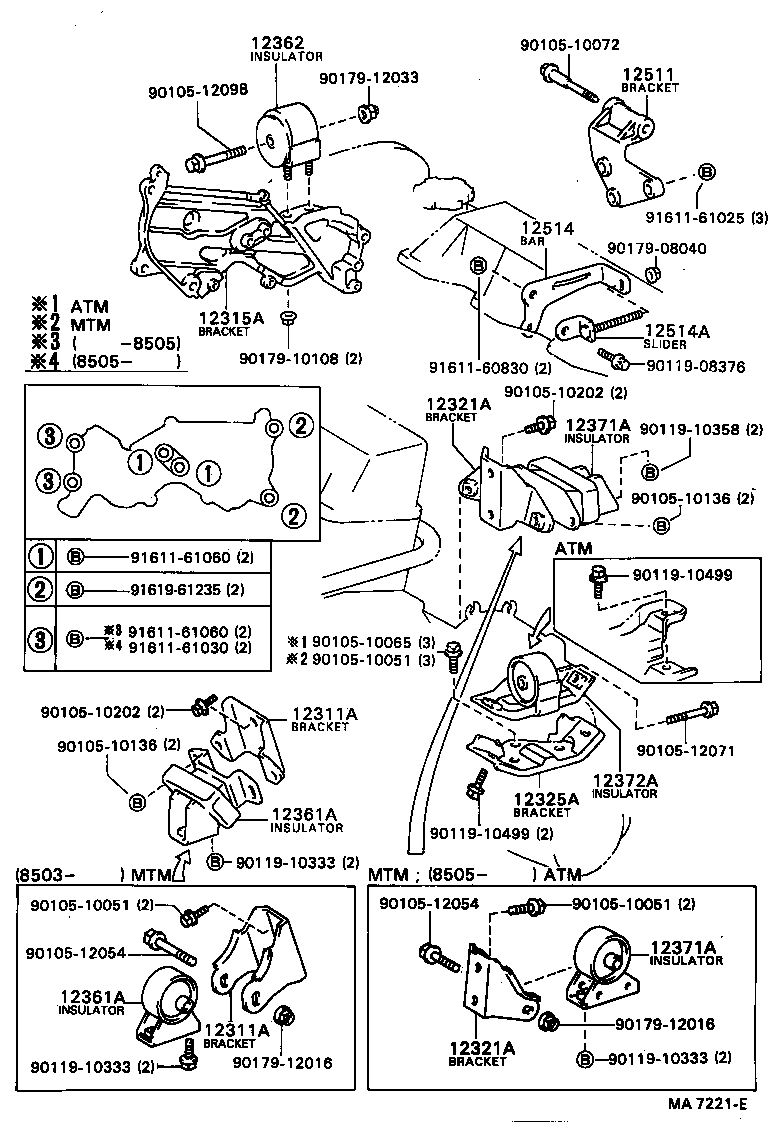

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-63031 |
2CL..CT150 |
1 | ||
| 12311-63031 |
2CL..CT150..4FC |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-63031 |
2CL..CT150 |
1 | ||
| 12311-63031 |
2CL..CT150..4FC |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-64030 |
2CL..CT150 |
1 | ||
| 12315-64031 |
2CL..CT150 |
1 | ||
| 12315-64040 |
2CL..CT150 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-64030 |
2CL..CT150..4FC |
1 | ||
| 12321-64100 |
2CL..CT150..4FC |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-64030 |
2CL..CT150..4FC |
1 | ||
| 12321-64100 |
2CL..CT150..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-63030 |
2CL..CT150..4FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-64040 |
2CL..CT150..4FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-64040 |
2CL..CT150..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-64020 |
2CL..CT150..4FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64080 |
2CL..CT150..4FC |
1 | ||
| 12371-64081 |
2CL..CT150..4FC |
1 | ||
| 12371-64020 |
2CL..CT150..4FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64080 |
2CL..CT150..4FC |
1 | ||
| 12371-64081 |
2CL..CT150..4FC |
1 | ||
| 12371-64020 |
2CL..CT150..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-64031 |
2CL..CT150..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-64020 |
2CL..CT150 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 16381-64020 |
2CL..CT150 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64020 |
2CL..CT150 |
1 | ||
| Common parts | ||||
| 90105-10051 | ||||
| 90105-10065 | ||||
| 90105-10072 | ||||
| 90105-10136 | ||||
| 90105-10202 | ||||
| 90105-12054 | ||||
| 90105-12071 | ||||
| 90105-12098 | ||||
| 90119-08376 | ||||
| 90119-10333 | ||||
| 90119-10358 | ||||
| 90119-10499 | ||||
| 90179-08040 | ||||
| 90179-10108 | ||||
| 90179-12016 | ||||
| 90179-12033 | ||||
| 91611-60830 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61060 | ||||
| 91619-61235 | ||||
