CT150-AEMFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

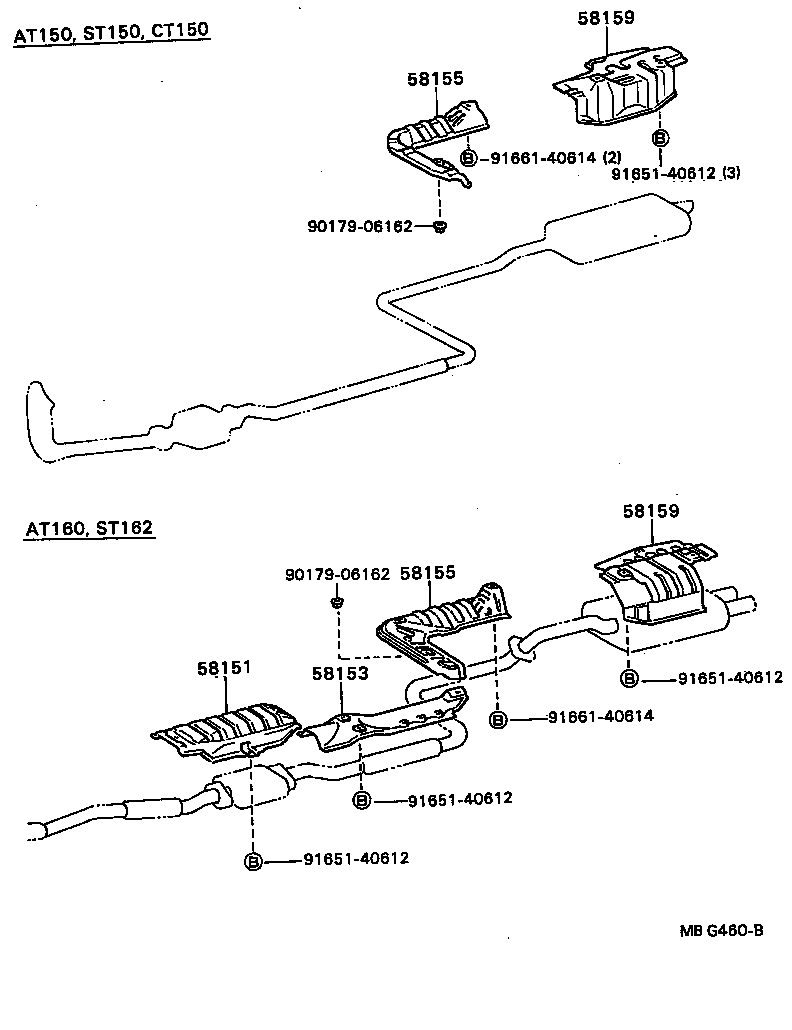

Click highlighted areas on diagram

diagram 58151 58153 58155 58155 58159 58159 9017906162 9017906162 9165140612 9165140612 9165140612 9165140612 9166140614 9166140614
Part # Description Qty Price
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-32010

AT15#,CT150,ST150

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-32010

AT15#,CT150,ST150

 1
Common parts
90179-06162
91651-40612
91661-40614
