CT150-AEMFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )AT15#,CT150,ST150

Click highlighted areas on diagram

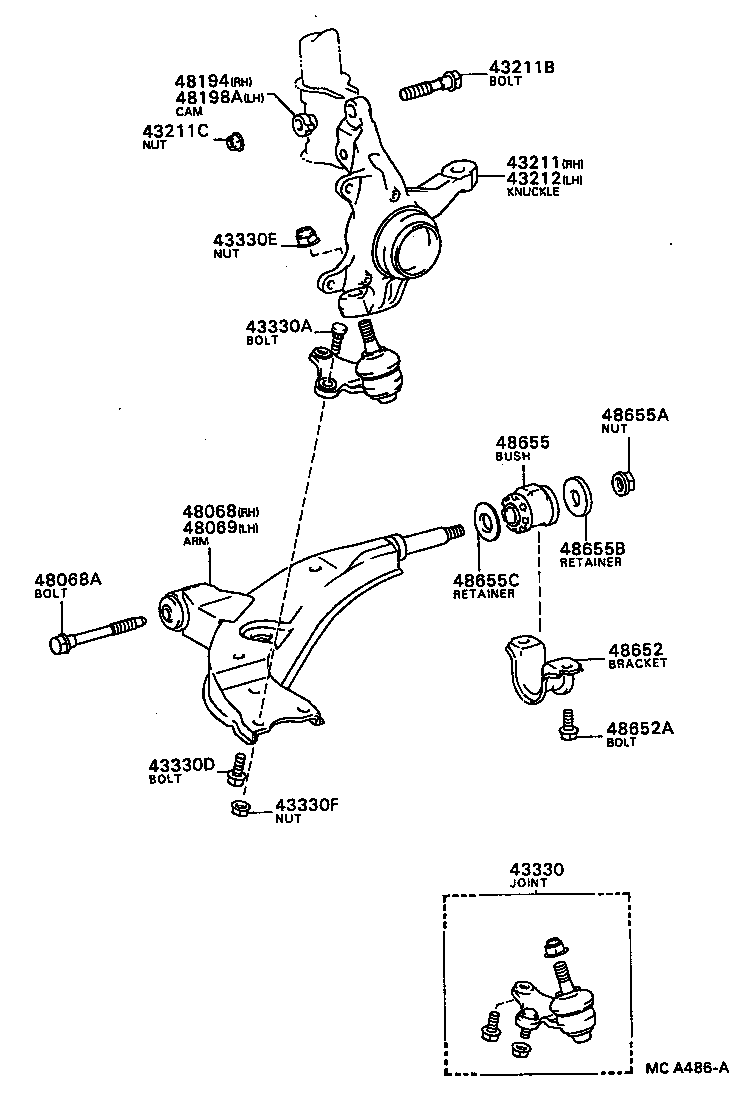

diagram 43211 43211B 43211C 43212 43330 43330A 43330D 43330E 43330F 48068 48068A 48069 48194 48198A 48652 48652A 48655 48655A 48655B 48655C
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20090

CT150,ST150

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-15001

AT160,CT150,ST150,162

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-15001

AT160,CT150,ST150,162

 4
43212 - KNUCKLE, STEERING, LH
43212-20050

CT150,ST150

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29136

AT15#,CT150,ST150

 2
43330-29137

AT15#,CT150,ST150

 2
43330-29139

AT15#,CT150,ST150

 2
43330-29138

AT15#,CT150,ST150

 2
43330-29205

AT15#,CT150,ST150

 2
43330A - SERRATION BOLT(FOR FRONT LOWER BALL JOINT)
90114-10012

AT15#,CT150,ST150

 4
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90119-10407

AT15#,CT150,ST150

 2
90105-10069

AT15#,CT150,ST150

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
90171-14003

AT15#,160,CT150,ST150,162

 2
90179-14015

AT15#,160,CT150,ST150,162

 2
43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING)
90179-10087

AT15#,CT150,ST150

 4
90179-10103

AT15#,CT150,ST150

 4
90179-10054

AT15#,CT150,ST150

 4
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20150

AT15#,CT150,ST150

 1
48068-20151

AT15#,CT150,ST150

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90119-12083

AT15#,CT150,ST150

 2
90105-12081

AT15#,CT150,ST150

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20150

AT15#,CT150,ST150

 1
48069-20151

AT15#,CT150,ST150

 1
48194 - CAM, CAMBER ADJUST, RH
48194-32010

CT150,ST150

 1
48194-32020

AT160,CT150,ST150,162

 1
48194-32020

CT150,ST150

 1
48198A - CAM, CAMBER ADJUST, LH
48198-32020

CT150,ST150

 1
48198-32020

AT160,CT150,ST150,162

 1
48198-32010

CT150,ST150

 1
48652 - BRACKET, FRONT LOWER ARM
48652-20030

AT15#,CT150,ST150

 2
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90105-12061

AT15#,160,CT150,ST150,162

 4
48655 - BUSH, LOWER ARM, NO.2
48655-20030

AT15#,CT150,ST150

 2
48655A - NUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
90179-14006

AT15#,160,CT150,ST150,162

 2
48655B - RETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.
90948-02060

AT15#,CT150,ST150

 2
48655C - RETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.
90948-02061

AT15#,CT150,ST150

 2
