CT150-AEMFS (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

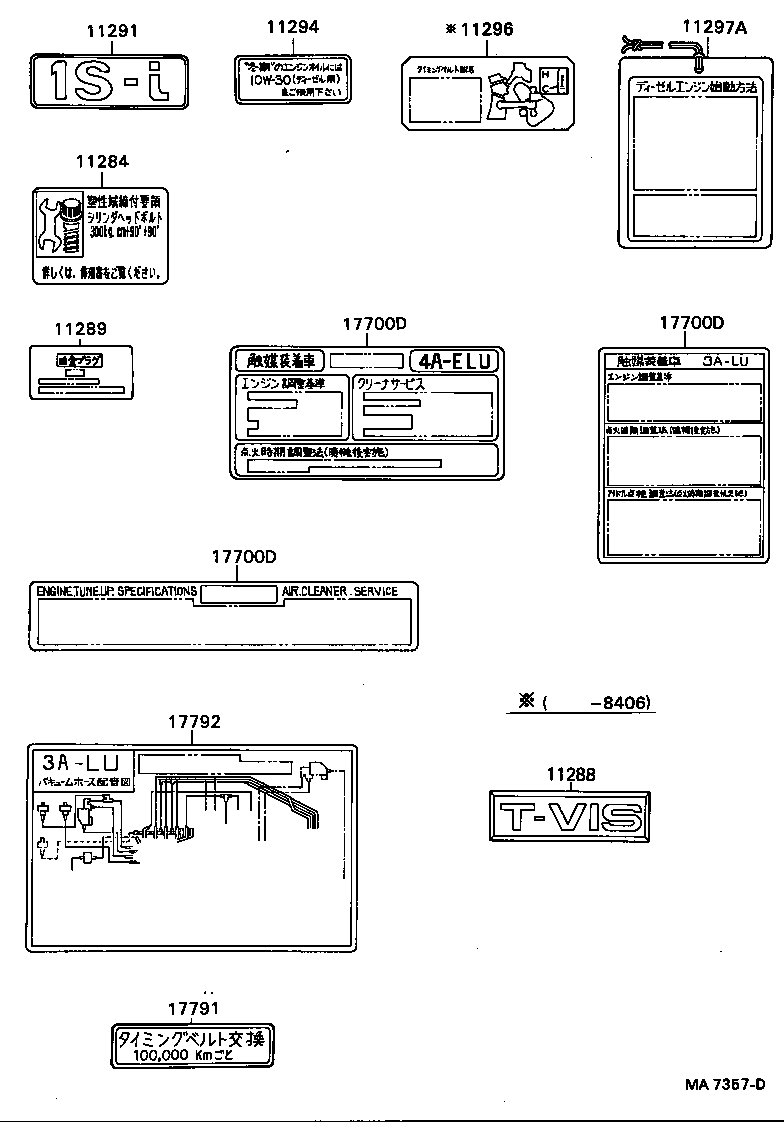

Click highlighted areas on diagram

diagram 11284 11288 11289 11291 11294 11296 11297A 17700D 17700D 17700D 17791 17792
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-64030

2CL..CT150

2C

 1
11291-64060

2CL..CT150

2C

 1
11294 - PLATE, ENGINE CAUTION, NO.2
11294-54040

2CL..CT150

 1
11294-56010

2CL..CT150

 1
11296 - PLATE, TIMING BELT CAUTION
11296-54010

2CL..CT150

 1
11297A - PLATE, ENGINE START CAUTION
11297-64010

2CL..CT150

 1
17700D - PLATE, ENGINE CAUTION
11293-64030

2CL..CT150

 1
17700D - PLATE, ENGINE CAUTION
11293-64030

2CL..CT150

 1
17700D - PLATE, ENGINE CAUTION
11293-64030

2CL..CT150

 1
17791 - LABEL, MAINTENANCE INFORMATION
17791-64030

2CL..CT150

 1
17791-55010

2CL..CT150

 1
