CT150-AEMES (1984)

Toyota Carina Ff

Production May 1984 - Apr 1988
Engine 2CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

Click highlighted areas on diagram

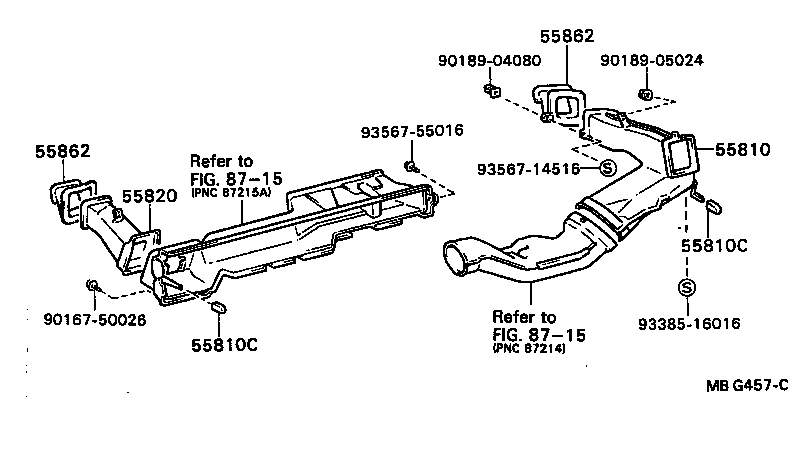

diagram 55810 55810C 55810C 55820 55862 55862 8715 8715 9016750026 9018904080 9018905024 9338516016 9356714516 9356755016
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-20090

AT15#,160,CT150,ST150,162

 1
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55905-1205004

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 2
55905-1205013

AT15#,160,CT150,ST150,162

GRAY,MEDIUM GRAY,TRIM1#

 2
55905-1205044

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 2
55905-1205034

AT15#,CT150,ST150..SE,SG,ST

BLUE,DARK BLUE,TRIM8#

 2
55905-1205003

AT15#,160,CT150,ST150,162

SHADOW GRAY,SHADOW GRAY,TRIM1#

 2
55905-1205005

AT15#,CT150,ST150..SE,SG,ST

BEIGE,DARK BEIGE,TRIM4#

 2
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55905-1205004

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 2
55905-1205013

AT15#,160,CT150,ST150,162

GRAY,MEDIUM GRAY,TRIM1#

 2
55905-1205044

AT15#,CT150,ST150

BLUE,BLUE,TRIM8#

 2
55905-1205034

AT15#,CT150,ST150..SE,SG,ST

BLUE,DARK BLUE,TRIM8#

 2
55905-1205003

AT15#,160,CT150,ST150,162

SHADOW GRAY,SHADOW GRAY,TRIM1#

 2
55905-1205005

AT15#,CT150,ST150..SE,SG,ST

BEIGE,DARK BEIGE,TRIM4#

 2
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55848-20050

AT15#,160,CT150,ST150,162

 1
55862 - BOOT, SIDE VENTILATOR
55864-20010

AT15#,160,CT150,ST150,162

LH

 1
55863-20030

AT15#,160,CT150,ST150,162

RH

 1
55862 - BOOT, SIDE VENTILATOR
55864-20010

AT15#,160,CT150,ST150,162

LH

 1
55863-20030

AT15#,160,CT150,ST150,162

RH

 1
Common parts
90167-50026
90189-04080
90189-05024
93385-16016
93567-14516
93567-55016
