AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

Click highlighted areas on diagram

diagram 6101 827111E300 827112D080 827112D080 86300 86300C 9015040011 9015960545 9017906070
Part # Description Qty Price
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-2B340

AT210,211,ST215

 1
86300-2B310

AT211,ST215

ｱﾘ(CD ﾌﾟﾚ-ﾔ)

 1
86300-2B300

AT211,ST215

 1
86300-2B350

AT211

6 ｽﾋﾟ-ｶ;ｱﾘ(ﾃﾚﾋﾞ)

 1
86300-2B380

AT211,212,CT21#,ST215

4 ｽﾋﾟ-ｶ;ｱﾘ(ﾃﾚﾋﾞ)

 1
86300-2B300

AT21#,CT210,ST215

 1
Common parts
82711-1E300
82711-2D080
90150-40011
90159-60545
90179-06070
Linked diagrams
6101

(9808- )AT211,212,CT21#,ST215

Click highlighted areas on diagram

ｱﾘ(ﾃﾚﾋﾞ)

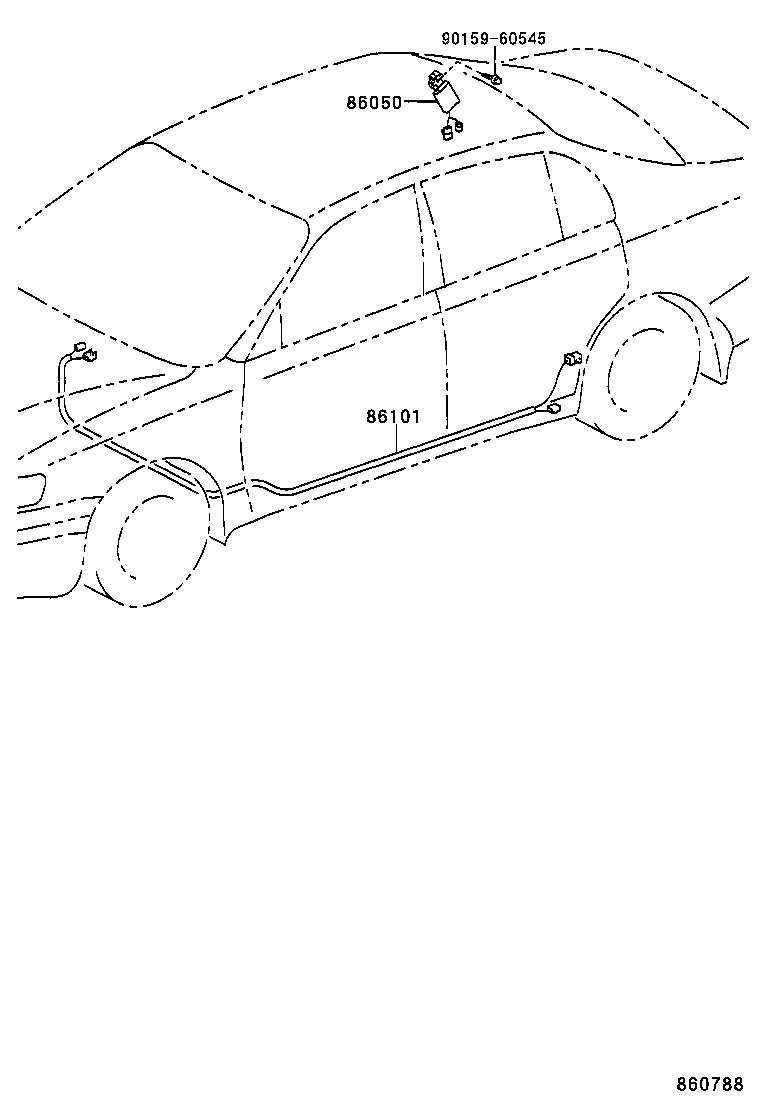

diagram 86050 86101 9015960545
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-20020

AT211,212,CT21#,ST215

 1
86050-20020

AT211

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-20730

AT211

 1
Common parts
90159-60545
