AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

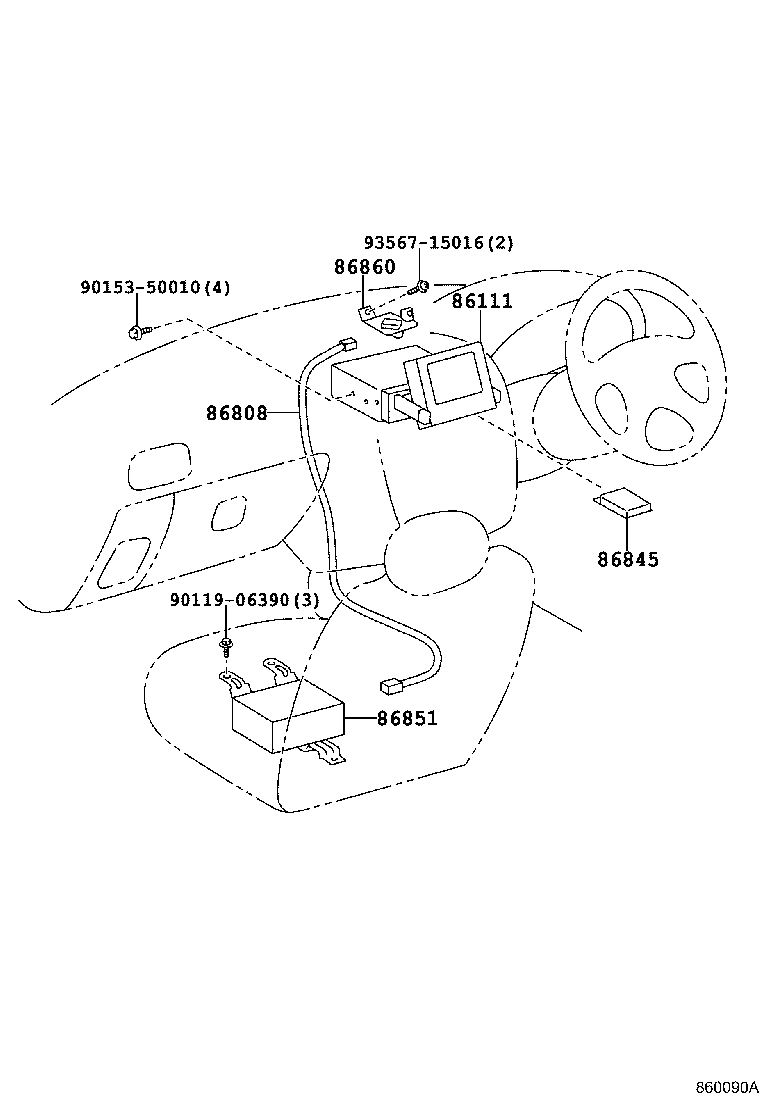

(9608-9808)AT211,ST215

Click highlighted areas on diagram

diagram 86111 86808 86845 86851 86860 9011906390 9015350010 9356715016
Part # Description Qty Price
86111 - MULTI-DISPLAY
86112-21010

AT211,ST215

DENSO

 1
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-20020

AT211,212,CT21#,ST215

4 ｽﾋﾟ-ｶ

 1
86808-20010

AT211

6 ｽﾋﾟ-ｶ

 1
86808-21010

AT211,ST215

 1
86845 - CARD, NAVIGATION
86845-21010

AT211,ST215

 1
86845-21060

AT211,ST215

 1
86845-21061

AT211,ST215

 1
86851 - RECEIVER, NAVIGATION
86851-21010

AT211,ST215

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-21010

AT211,ST215

 1
86860-20050

AT211,212,CT21#,ST215

 1
86860-20020

AT211

 1
Common parts
90119-06390
90153-50010
93567-15016

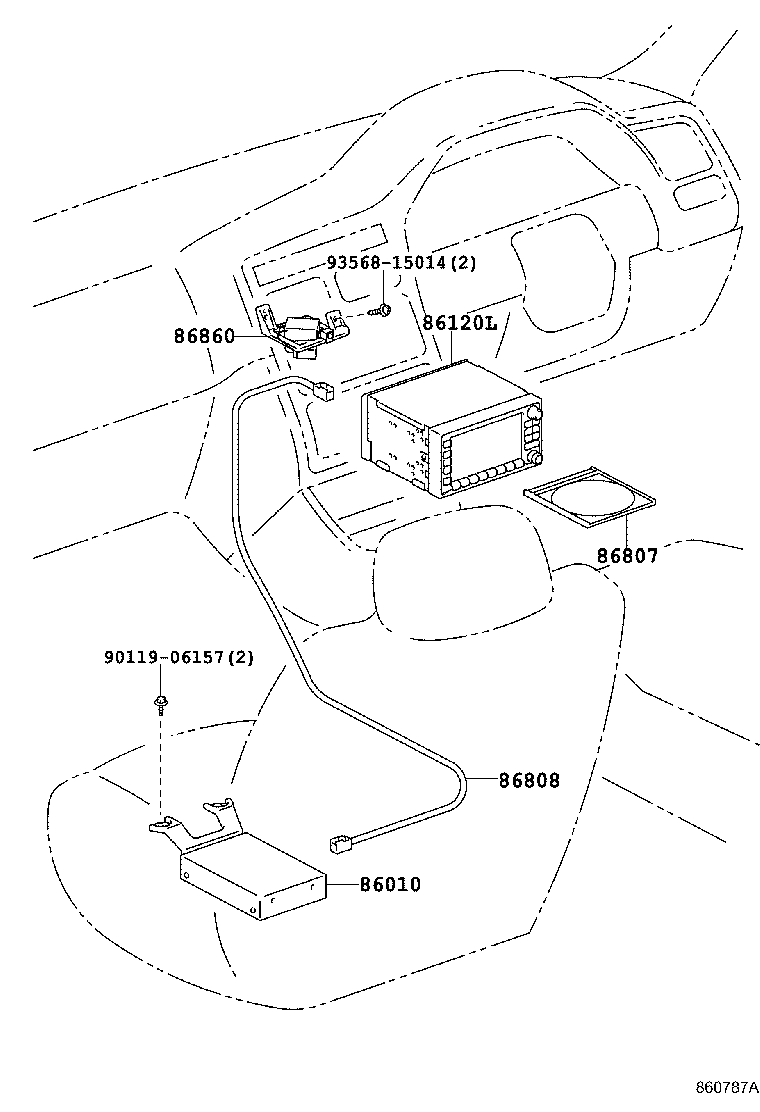

(9808- )AT211 ; (0012- )AT211,212,CT21#,ST215

Click highlighted areas on diagram

diagram 86010 86120L 86807 86808 86860 9011906157 9356815014
Part # Description Qty Price
86010 - TUNER ASSY, TELEVISION
86010-20010

AT211

 1
86120L - RECEIVER ASSY, NAVIGATION
86120-46010

AT211,212,CT21#,ST215

MATSUSHITA,ID=56038,4 ｽﾋﾟ-ｶ

 1
86120-2B630

AT211

MATSUSHITA,ID=56035,6 ｽﾋﾟ-ｶ

 1
86807 - DISC KIT, CD-ROM
86807-44011

AT211

6 ｽﾋﾟ-ｶ

 1
86807-52010

AT211,212,CT21#,ST215

4 ｽﾋﾟ-ｶ

 1
86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
86808-20020

AT211,212,CT21#,ST215

4 ｽﾋﾟ-ｶ

 1
86808-20010

AT211

6 ｽﾋﾟ-ｶ

 1
86808-21010

AT211,ST215

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-21010

AT211,ST215

 1
86860-20050

AT211,212,CT21#,ST215

 1
86860-20020

AT211

 1
Common parts
90119-06157
93568-15014
