AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )AT21#,ST215

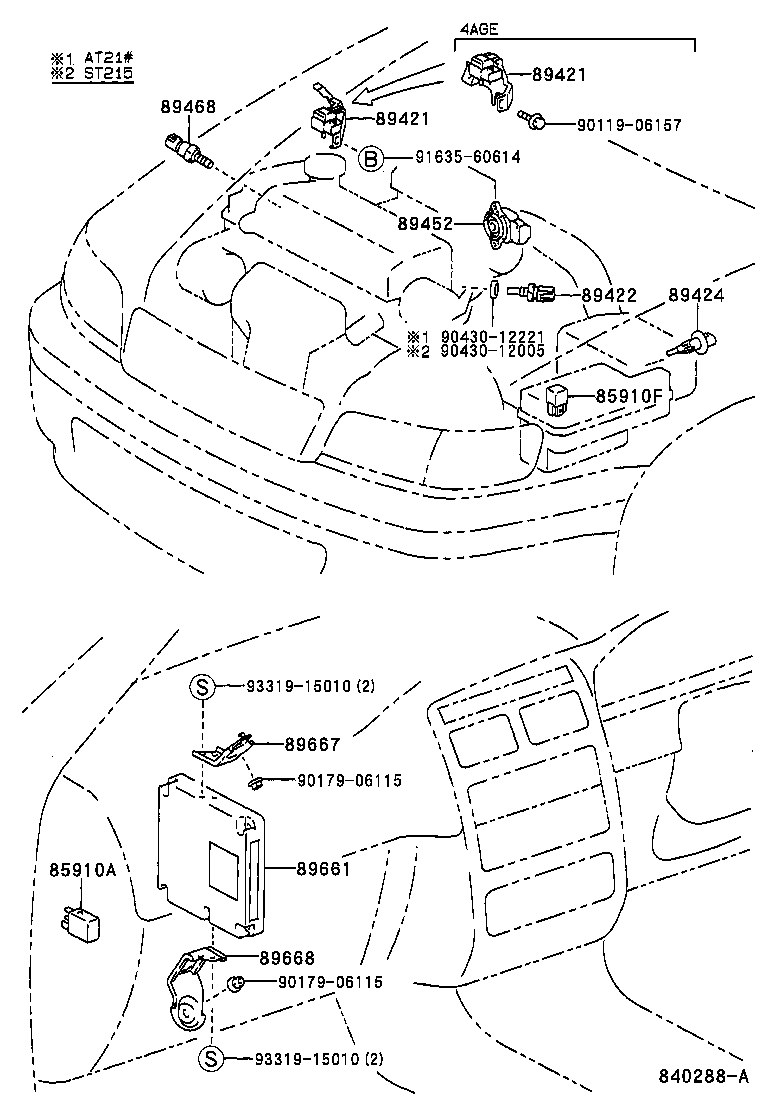

Click highlighted areas on diagram

diagram 85910A 85910F 89421 89421 89422 89424 89452 89468 89661 89667 89668 9011906157 9017906115 9017906115 9043012005 9043012221 9163560614 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

AT21#,ST215

 1
90987-02020

AT21#,ST215

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

AT21#,ST215

 1
90987-02009

AT21#,ST215

 1
90987-02020

AT21#,ST215

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20250

AT211,212,ST215

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20250

AT211,212,ST215

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

AT211

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-33010

AT21#,ST215

 1
89424-12010

AT21#,ST215

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

AT211

 1
89452-20130

AT211,ST215

 1
89468 - SENSOR, COMBUSTION PRESSURE
89468-20020

AT211

 1
89661 - COMPUTER, ENGINE CONTROL
89661-2D800

AT211..4FC

 1
89661-2D830

AT211..4FC

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ)

 1
89661-21230

AT211..4FC

 1
89661-21240

AT211..4FC

ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ)

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-20380

AT21#,ST215

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20340

AT21#,ST215

 1
Common parts
90119-06157
90179-06115
90430-12005
90430-12221
91635-60614
93319-15010
