AT211-CEPEK (1996)
Toyota Carina Ff
ILLUST NO. 1 OF 3(9608-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

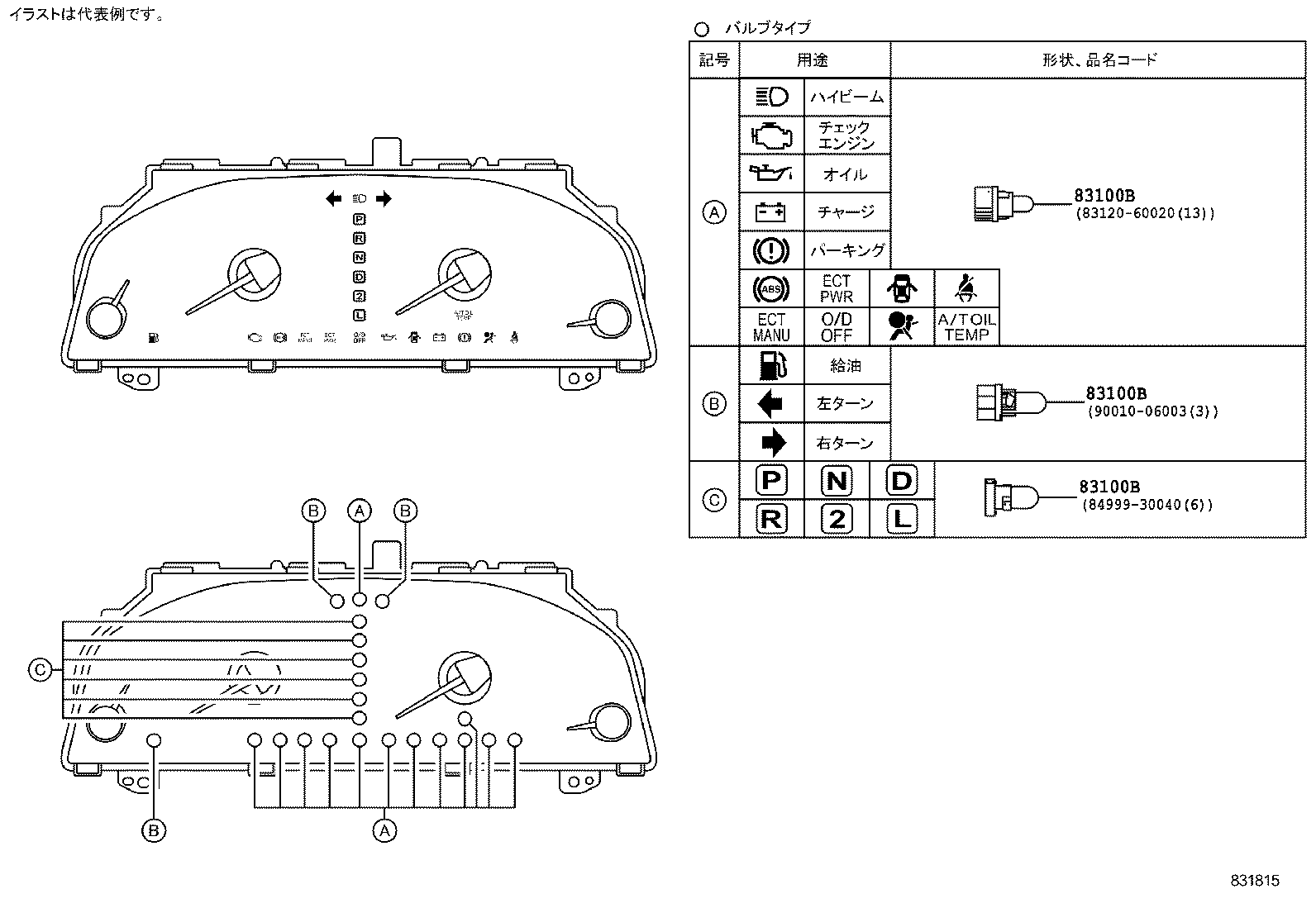

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||

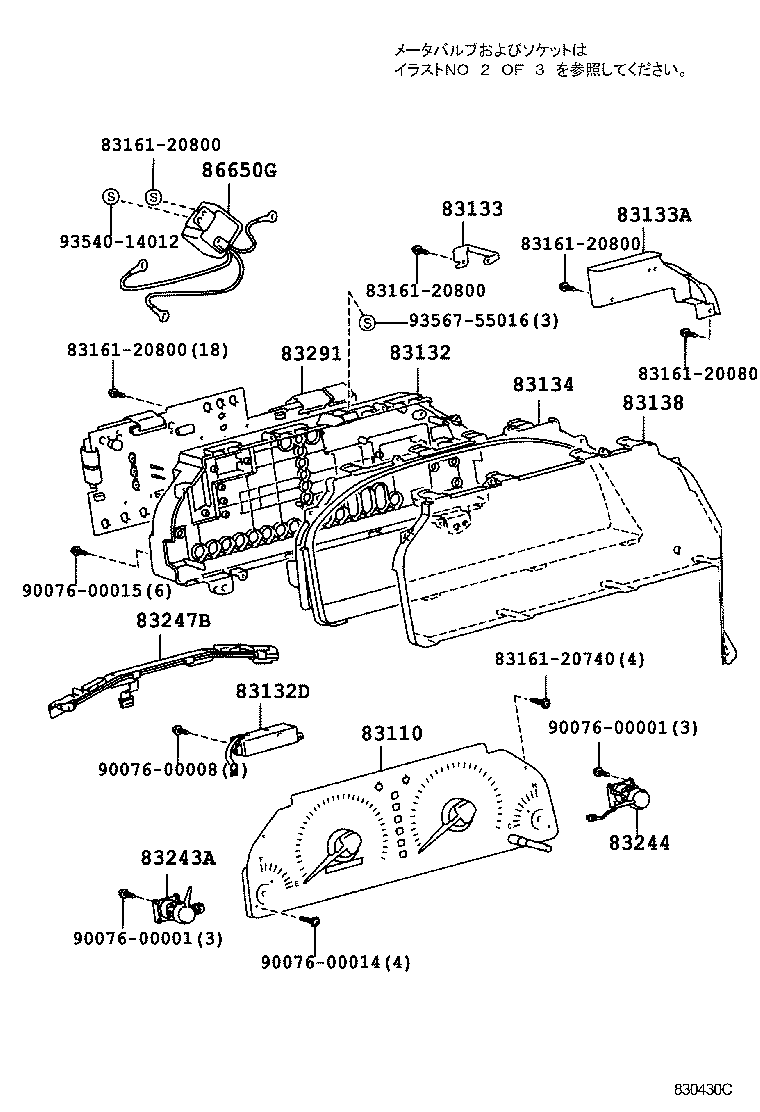

| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20111 |
AT211,212,CT21#,ST215 |
1 | ||
| 83220-20110 |
AT211,212,CT21#,ST215 |
1 | ||
| 83220-20190 |
AT211..4FC ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-44010 |
AT21#,CT21#,ST215 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20390 |
AT21#,CT21#,ST215 |
1 | ||
| 83843-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-20410 |
AT21#,CT21#,ST215 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-20590 |
AT211,ST215 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..4FC |
1 | ||
| 83821-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83851-44010 |
AT211,212,CT210,ST215..4FC |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83852-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
AT21#,ST215 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-20140 |
AT211..4FC |
1 | ||
| 83832-20180 |
CT210,211,215 |
1 | ||
| 83831-20140 |
AT211..4FC E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-20410 |
AT211,212 |
1 | ||
| 83881-20411 |
AT211 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20410 |
AT211,212,CT21#,ST215 |
1 | ||
| 83882-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-20591 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-20390 |
AT211,212,CT211 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20410 |
AT211,212,CT21#,ST215 |
1 | ||
| 83883-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-20390 |
AT211,212,CT21#,ST215 |
1 | ||
| 83883-20591 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-20421 |
AT211,212..4FC |
1 | ||
| 83861-20420 |
AT21#,CT210..4FC |
1 | ||
| 83861-20400 |
AT211,212..4FC |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-44010 |
AT211,ST215 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
ST215..4FC..SI;AT21#,CT210..4FC |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33020 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 83161-20840 | ||||
| 83161-26060 | ||||
| 83161-26080 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(9608-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST215 |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 96711-24030 | ||||
ILLUST NO. 1 OF 3(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20111 |
AT211,212,CT21#,ST215 |
1 | ||
| 83220-20110 |
AT211,212,CT21#,ST215 |
1 | ||
| 83220-20190 |
AT211..4FC ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-44010 |
AT21#,CT21#,ST215 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20390 |
AT21#,CT21#,ST215 |
1 | ||
| 83843-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-20410 |
AT21#,CT21#,ST215 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..4FC |
1 | ||
| 83821-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83851-44010 |
AT211,212,CT210,ST215..4FC |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83852-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-20130 |
AT21#,ST215 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-20140 |
AT211..4FC |
1 | ||
| 83832-20180 |
CT210,211,215 |
1 | ||
| 83831-20140 |
AT211..4FC E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83887-44010 |
AT21#,CT210,211,216,ST215..4FC |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-20410 |
AT211,212 |
1 | ||
| 83881-20411 |
AT211 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20410 |
AT211,212,CT21#,ST215 |
1 | ||
| 83882-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-20591 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-20390 |
AT211,212,CT211 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20410 |
AT211,212,CT21#,ST215 |
1 | ||
| 83883-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-20390 |
AT211,212,CT21#,ST215 |
1 | ||
| 83883-20591 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-20421 |
AT211,212..4FC |
1 | ||
| 83861-20420 |
AT21#,CT210..4FC |
1 | ||
| 83861-20400 |
AT211,212..4FC |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83861-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-44010 |
AT211,ST215 |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33020 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 3(9808- )AT211,ST215
ｵﾌﾟﾃｲﾄﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-20111 |
AT211,212,CT21#,ST215 |
1 | ||
| 83220-20110 |
AT211,212,CT21#,ST215 |
1 | ||
| 83220-20190 |
AT211..4FC ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-20390 |
AT21#,CT21#,ST215 |
1 | ||
| 83843-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83841-20410 |
AT21#,CT21#,ST215 |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-20590 |
AT211,ST215 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-20590 |
AT211,ST215 |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83812-20590 |
AT211,ST215 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-44010 |
AT21#,CT21#,ST215..4FC |
1 | ||
| 83821-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83851-44010 |
AT211,212,CT210,ST215..4FC |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-20130 |
AT21#,CT21#,ST215 |
1 | ||
| 83852-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-20410 |
AT211,212,CT21#,ST215 |
1 | ||
| 83882-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-20591 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83882-20390 |
AT211,212,CT211 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-20410 |
AT211,212,CT21#,ST215 |
1 | ||
| 83883-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83883-20390 |
AT211,212,CT21#,ST215 |
1 | ||
| 83883-20591 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83861-20590 |
AT211,ST215 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-20370 |
AT211..4FC |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-33020 |
AT21#,CT21#,ST215 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20740 | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00008 | ||||
| 90076-00014 | ||||
| 90076-00015 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(9808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST215 |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST215 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20720 |
AT21#,CT21#,ST215 |
1 | ||
| 83910-20740 |
AT21#,CT21#,ST215 |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
AT21#,CT21#,ST215 14V 1.12W |
1 | ||
| Common parts | ||||
| 93567-55014 | ||||
ILLUST NO. 2 OF 3(9808- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
ILLUST NO. 2 OF 3(9808- )AT211,ST215
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ - ｵﾌﾟﾃｨﾄﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06002 |
AT211,212,CT21#,ST215 12V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06001 |
AT211,212,CT21#,ST215 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 83120-60020 |
AT21#,CT21#,ST215 12V 1.4W,ｿｹｯﾄ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
22 | ||
| 90010-06003 |
AT21#,CT21#,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90010-06006 |
AT211,212,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 84999-30040 |
AT211,ST215..4FC 14V 1.4W,ｿｹｯﾄ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
6 | ||
| 90010-06006 |
AT212..4FC;AT211,CT21#,ST215 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211..4FC 12V 1.4W,ｿｹｯﾄ付き,G ｾﾚｸｼﾖﾝ;TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
13 | ||
| 90010-06003 |
AT211,ST215 14V 3.0W,ｿｹｯﾄ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
3 | ||
| 83120-60020 |
AT211,CT216,ST215..4FC 12V 1.4W,ｿｹｯﾄ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
21 | ||
| 90010-06036 |
AT211,212,CT21#,ST215 14V 3.0W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
