Toyota Carina ff AT211 WIRING & CLAMP

AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001

Engine 7AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(9608- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-2L380	AT211,212 ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔﾃﾞﾌｵﾂｶﾞ)	08/1996 - 08/1998	1
82111-2L370	AT211	08/1996 - 08/1998	1
82111-2L381	AT211,212 ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔﾃﾞﾌｵﾂｶﾞ)	08/1998 - 12/2999	1
82111-2L371	AT211,212	08/1998 - 12/2999	1
82210C - FUSIBLE LINK
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1996 - 08/1998	5
90982-08246	AT21#,CT21#,ST215 100A,ｵｽ端子,青	08/1996 - 12/2999	1
90982-08285	AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤	08/1996 - 12/2999	1
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1998 - 12/2999	1
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1996 - 08/1998	3
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1998 - 12/2999	1
90982-08202	AT21#,CT21#,ST215 60A,ｵｽ端子,黄	08/1996 - 12/2999	1
82210C - FUSIBLE LINK
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1996 - 08/1998	5
90982-08246	AT21#,CT21#,ST215 100A,ｵｽ端子,青	08/1996 - 12/2999	1
90982-08285	AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤	08/1996 - 12/2999	1
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1998 - 12/2999	1
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1996 - 08/1998	3
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1998 - 12/2999	1
90982-08202	AT21#,CT21#,ST215 60A,ｵｽ端子,黄	08/1996 - 12/2999	1
82217A - WIRE, FRONT WINDOW DEFOGGER
82217-20080	AT21#,CT21#,ST215	08/1996 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D090	AT21#,CT21#,ST215	08/1996 - 12/2999	1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82818-20090	AT21#,CT21#,ST215	08/1996 - 12/2999	1
82823 - CAP, TERMINAL, NO.1
82823-20070	AT211,212	08/1996 - 12/2999	1
Common parts
82711-1E370
82715-20820
85373-32010
90119-06120
90119-06390
90119-06595
Linked diagrams
8401

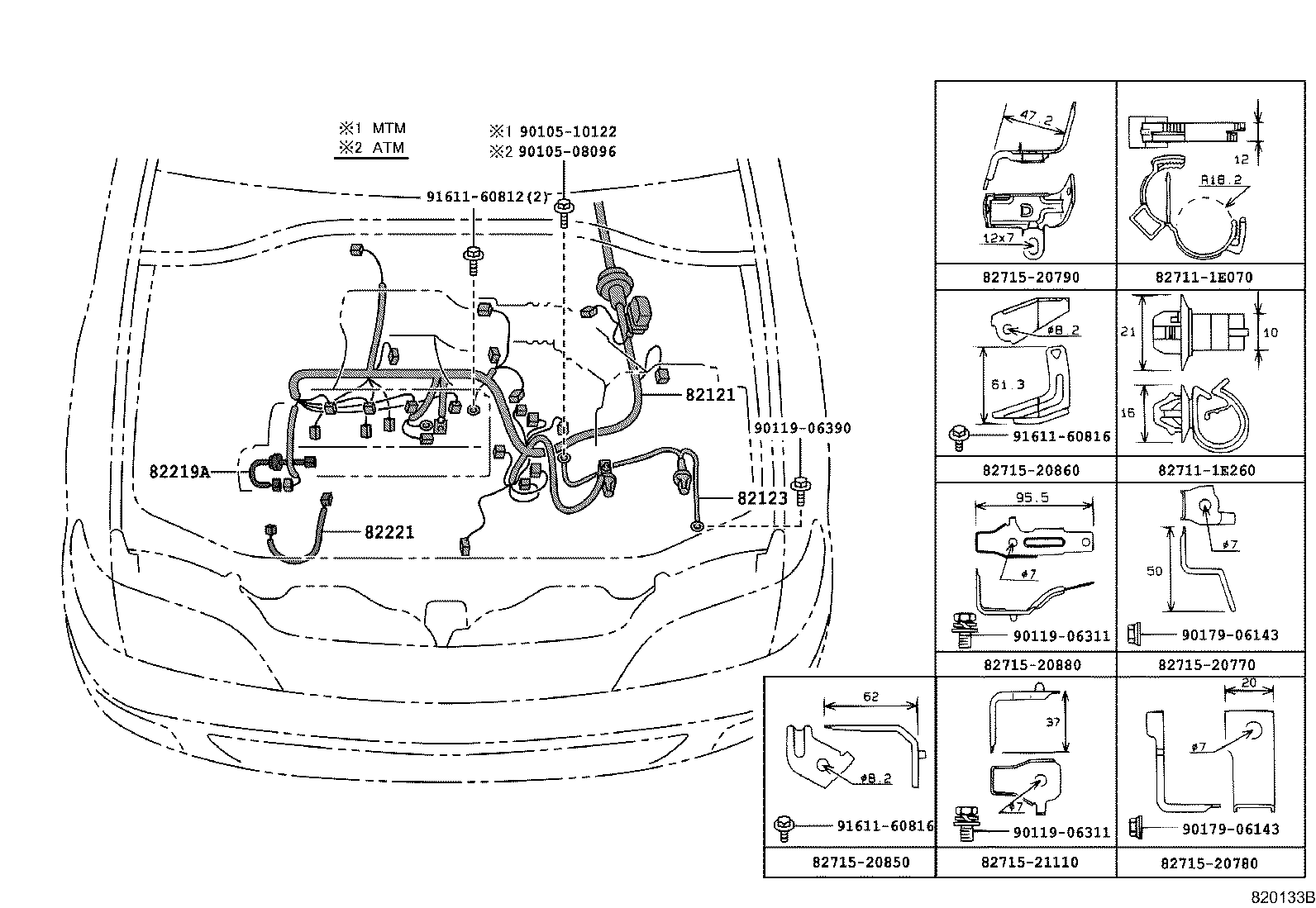

ILLUST NO. 2 OF 9(9608- )AT211,212

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-2M010	AT211..4FC	08/1996 - 08/1998	1
82121-21170	AT211..4FC	08/1998 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-20260	AT211,212	08/1996 - 12/2999	1
82219A - WIRE, SENSOR
82219-20080	AT211	08/1996 - 12/2999	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-20100	AT211,212	08/1996 - 12/2999	1
Common parts
82711-1E070
82711-1E260
82715-20770
82715-20780
82715-20790
82715-20850
82715-20860
82715-20880
82715-21110
90105-08096
90105-10122
90119-06311
90119-06390
90179-06143
91611-60812
91611-60816

ILLUST NO. 3 OF 9(9608- )

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-2P180	AT211..4FC	08/1996 - 11/1997	1
82131-2P182	AT211..4FC	11/1997 - 08/1998	1
82131-2P162	AT211..4FC	08/1998 - 12/2999	1
82131-2P183	AT211..4FC ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ)	08/1998 - 12/2999	1
82210C - FUSIBLE LINK
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1996 - 08/1998	5
90982-08246	AT21#,CT21#,ST215 100A,ｵｽ端子,青	08/1996 - 12/2999	1
90982-08285	AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤	08/1996 - 12/2999	1
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1998 - 12/2999	1
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1996 - 08/1998	3
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1998 - 12/2999	1
90982-08202	AT21#,CT21#,ST215 60A,ｵｽ端子,黄	08/1996 - 12/2999	1
82210C - FUSIBLE LINK
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1996 - 08/1998	5
90982-08246	AT21#,CT21#,ST215 100A,ｵｽ端子,青	08/1996 - 12/2999	1
90982-08285	AT21#,CT210,215,ST215 50A,ﾒｽ端子,赤	08/1996 - 12/2999	1
90982-08284	AT21#,CT21#,ST215 40A,ﾒｽ端子,緑	08/1998 - 12/2999	1
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1996 - 08/1998	3
90982-08283	AT21#,CT21#,ST215 30A,ﾒｽ端子,桃	08/1998 - 12/2999	1
90982-08202	AT21#,CT21#,ST215 60A,ｵｽ端子,黄	08/1996 - 12/2999	1
Common parts
61824-20100
82711-1E260
82711-1E350
82711-2D090
82715-21130
85373-32010
90119-08375
90159-70003
90159-70004
90179-06115
Linked diagrams
8401
8601

ILLUST NO. 4 OF 9(9608- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-2G700	AT211,ST215 ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ)	08/1996 - 08/1998	1
82141-2G620	AT210,211,ST215	08/1996 - 08/1998	1
82141-2G701	AT211 ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & 6ｽﾋﾟ-ｶ)	08/1998 - 12/2001	1
82141-2G650	AT211,ST215 ｱﾘ(CD ﾌﾟﾚ-ﾔ)	08/1996 - 08/1998	1
82145-20150	AT211,212,CT21#,ST215 ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & 4ｽﾋﾟ-ｶ)	12/2000 - 12/2001	1
82145-20030	AT211	08/1998 - 12/2001	1
82145-20040	AT21#,CT21#,ST215 ｶﾝﾚｲﾁｼﾖｳ	08/1998 - 12/2001	1
Common parts
61824-20100
82711-1E370
90159-70003

ILLUST NO. 5 OF 9(9608- )

Click highlighted areas on diagram

ﾄﾞｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-2G393	AT21#,CT21#,ST215	02/2000 - 12/2999	1
82151-2G401	AT211,ST215 ｱﾘ(CD ﾌﾟﾚ-ﾔ)	04/1997 - 08/1998	1
82151-2G392	AT21#,CT21#,ST215	08/1998 - 02/2000	1
82151-2G390	AT21#,CT21#,ST215	08/1996 - 04/1997	1
82151-2G391	AT21#,CT21#,ST215	04/1997 - 08/1998	1
82151-2G400	AT211,ST215 ｱﾘ(CD ﾌﾟﾚ-ﾔ)	08/1996 - 04/1997	1
82151-2G402	AT211 ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	02/2000 - 12/2999	1
82151-2G402	AT211,ST215 ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	08/1998 - 02/2000	1
82152 - WIRE, FRONT DOOR, LH
82152-2G191	AT21#,CT21#,ST215	08/1998 - 02/2000	1
82152-2G201	AT211,ST215 ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	08/1998 - 02/2000	1
82152-2G192	AT21#,CT21#,ST215	02/2000 - 12/2999	1
82152-2G190	AT21#,CT21#,ST215	08/1996 - 08/1998	1
82152-2G200	AT211,ST215 ｱﾘ(CD ﾌﾟﾚ-ﾔ)	08/1996 - 08/1998	1
82152-2G201	AT211 ｱﾘ(ﾂｲ-ﾀｽﾋﾟ-ｶ)	02/2000 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-20450	AT21#,CT21#,ST215	08/1996 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-20450	AT21#,CT21#,ST215	08/1996 - 12/2999	1
Common parts
82711-1E260

ILLUST NO. 6 OF 9(9608- )

Click highlighted areas on diagram

ﾌﾛｱ & ﾙ-ﾌ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-2L800	AT21#,CT21#,ST215 ｱﾘ(ﾘﾔﾜｲﾊﾟ)	08/1996 - 08/1998	1
82161-2L880	AT211 G ｾﾚｸｼﾖﾝ	08/1998 - 12/2999	1
82161-2L801	AT211 ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & 6ｽﾋﾟ-ｶ)	08/1998 - 12/2999	1
82199-20110	AT211 ｱﾘ(ｴﾚｸﾄﾛﾏﾙﾁﾋﾞｼﾞﾖﾝ & 4ｽﾋﾟ-ｶ)	12/2000 - 12/2999	1
82161-2L870	AT211	08/1998 - 12/2999	1
82161-2L790	AT211,ST215	08/1996 - 08/1998	1
82162 - WIRE, FLOOR, NO.2
82162-20521	AT21#,CT211	08/1998 - 12/2999	1
82162-20520	AT21#,CT210	08/1996 - 08/1998	1
82171 - WIRE, ROOF, NO.1
82171-2B090	AT210,211	08/1996 - 12/2999	1
Common parts
82711-1E260
82711-1E300
90119-06390
90159-60545
90159-70003
93319-14008

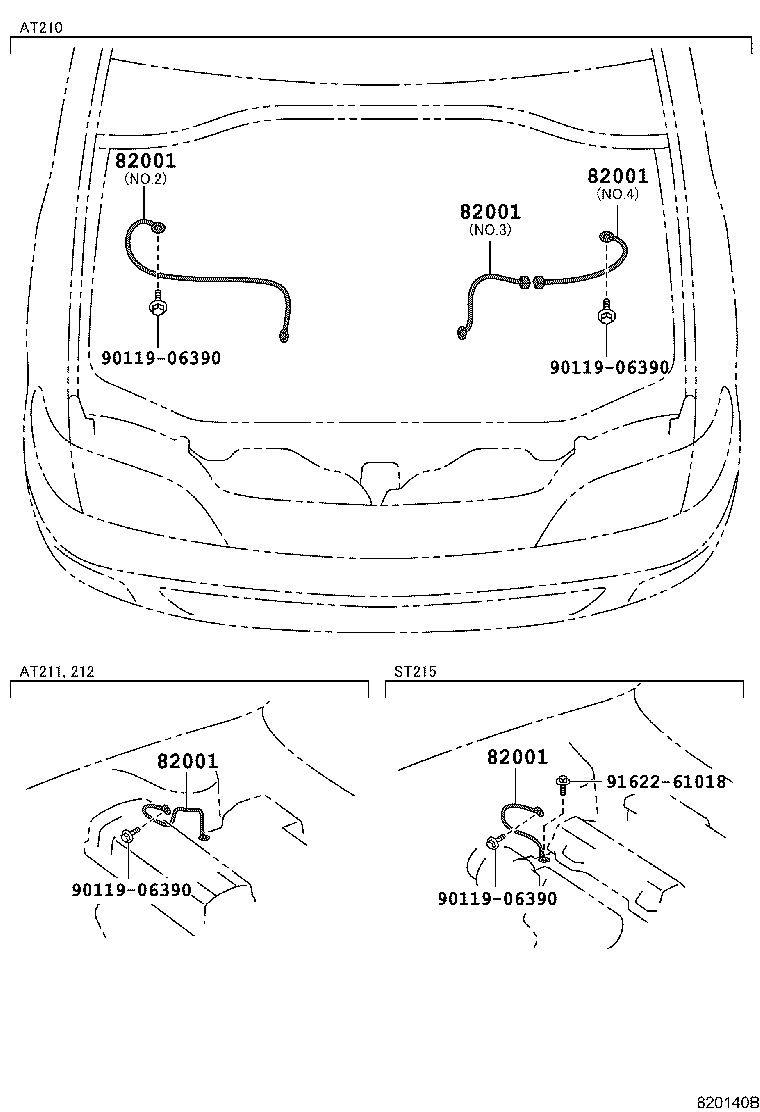

ILLUST NO. 7 OF 9(9608- )AT21#,ST215

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	AT211,212	08/1996 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	AT211,212	08/1996 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	AT211,212	08/1996 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	AT211,212	08/1996 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	AT211,212	08/1996 - 12/2999	1
Common parts
90119-06390
91622-61018

ILLUST NO. 8 OF 9(9608- )

Click highlighted areas on diagram

ﾘﾍﾟｱﾜｲﾔ

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20110	AT21#,CT21#,ST215	08/1996 - 12/2999	1

Part #

Description

Qty

Price

82991 - WIRE, FUSIBLE LINK REPAIR

82991-20110

AT21#,CT21#,ST215

ILLUST NO. 9 OF 9(9608- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-11009
90980-11011
90980-11019
90980-11148
90980-11156
90980-11314
