AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )AT211,212

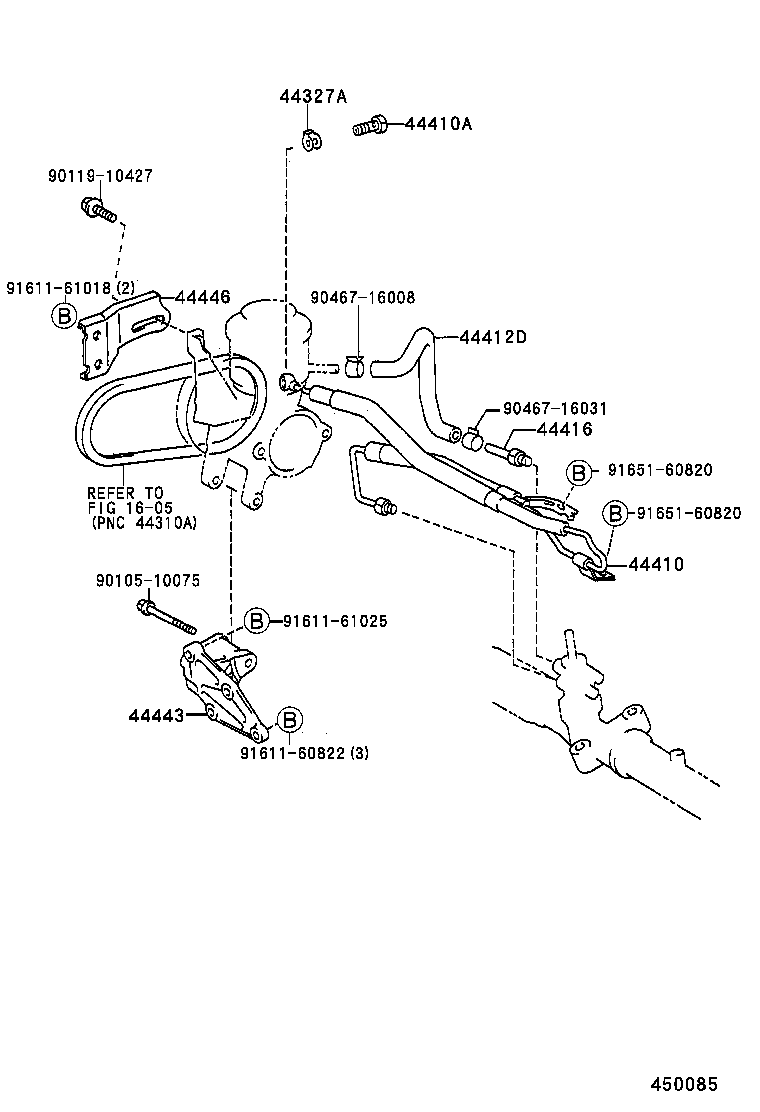

Click highlighted areas on diagram

diagram 1605 44327A 44410 44410A 44412D 44416 44443 44446 9010510075 9011910427 9046716008 9046716031 9161160822 9161161018 9161161025 9165160820 9165160820
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

AT211,212,CT21#,ST215

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-2B270

AT211,212

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

AT211,212,CT21#

 1
44412D - HOSE, RETURN, NO.1
44412-20190

AT211,212

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20220

AT21#,CT21#,ST215

 1
44443 - BRACKET, PUMP
44443-12050

AT211,212

 1
44446 - STRUT, ADJUSTING
44446-12090

AT211

 1
Common parts
90105-10075
90119-10427
90467-16008
90467-16031
91611-60822
91611-61018
91611-61025
91651-60820
Linked diagrams
1605
