AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )4AGE,5AFE,7AFE

Click highlighted areas on diagram

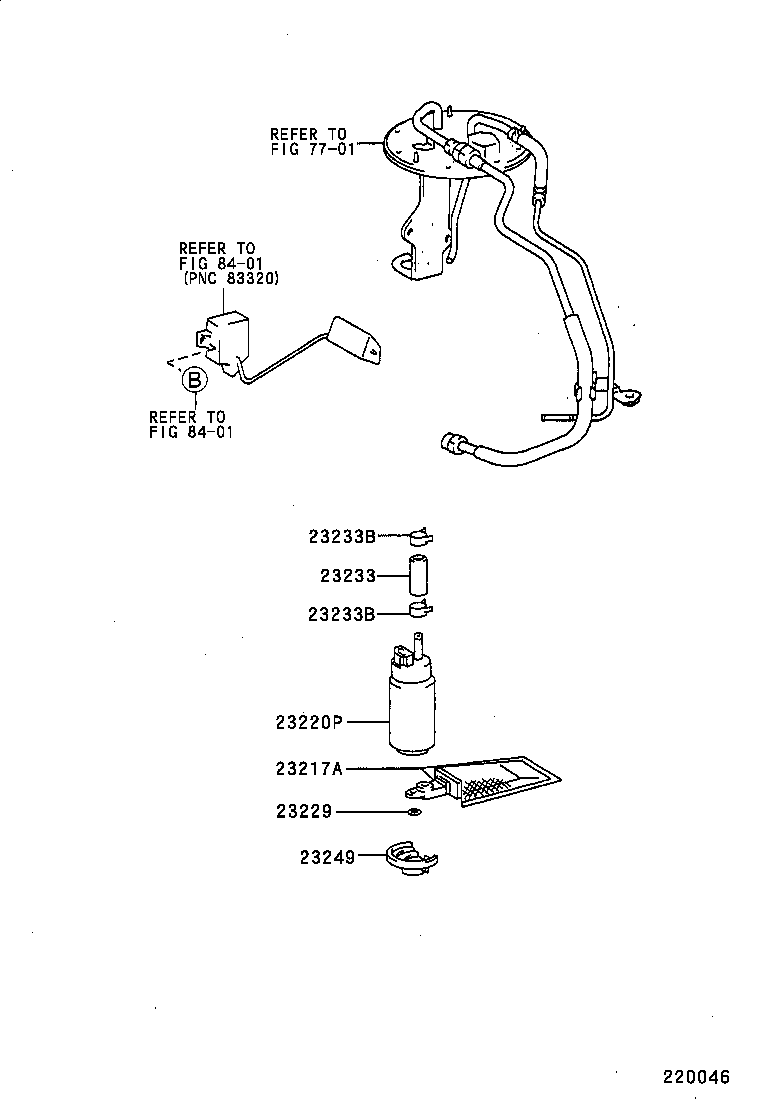

diagram 23217A 23220P 23229 23233 23233B 23233B 23249 7701 8401 8401
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-76040

5AFE,7AFE..AT211,212

 1
23220P - PUMP ASSY, FUEL
23221-11050

5AFE,7AFE..AT211,212

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4AGE,5AFE,7AFE..AT21#

 1
23233 - HOSE, FUEL PUMP
23239-11010

4AGE,5AFE,7AFE..AT21#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

4AGE,5AFE,7AFE..AT21#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

4AGE,5AFE,7AFE..AT21#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

4AGE,5AFE,7AFE..AT21#

 1
Linked diagrams
7701
8401

(9608- )5AFE,7AFE

Click highlighted areas on diagram

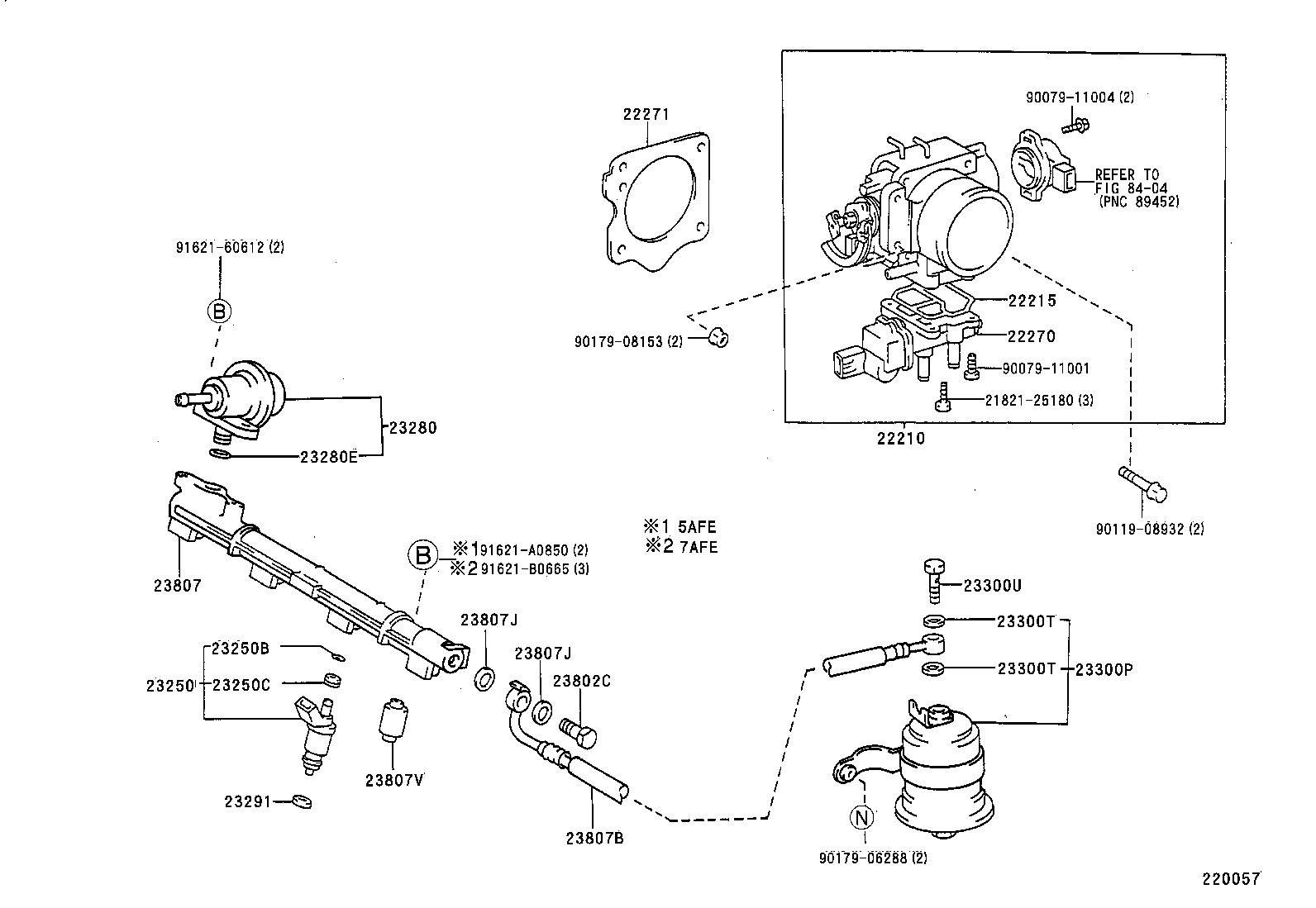

diagram 2182125180 22210 22215 22270 22271 23250 23250B 23250C 23280 23280E 23291 23300P 23300T 23300T 23300U 23802C 23807 23807B 23807J 23807J 23807V 8404 9007911001 9007911004 9011908932 9017906288 9017908153 9162160612 91621A0850 91621B0665
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-16870

7AFE..AT211

 1
22215 - GASKET, THROTTLE BODY COVER
22215-74400

5AFE,7AFE..AT211,212

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-16060

5AFE,7AFE..AT211,212

 1
22271 - GASKET, THROTTLE BODY
22271-15020

5AFE,7AFE..AT211,212

 1
23250 - INJECTOR ASSY, FUEL
23209-16170

7AFE..AT211

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

5AFE,7AFE..AT211,212

 4
90301-07024

5AFE,7AFE..AT211,212

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

5AFE,7AFE..AT211,212

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-16150

7AFE..AT211

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

5AFE,7AFE..AT211,212

 1
90301-07024

5AFE,7AFE..AT211,212

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

5AFE,7AFE..AT211,212

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19465

4AGE,5AFE,7AFE..AT21#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

5AFE,7AFE..AT211,212

 2
90430-12026

4AGE,5AFE,7AFE..AT21#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

5AFE,7AFE..AT211,212

 2
90430-12026

4AGE,5AFE,7AFE..AT21#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
96341-11200

4AGE,5AFE,7AFE..AT21#

NO.1

 1
96341-11200

5AFE,7AFE..AT211,212

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12097

5AFE,7AFE..AT211,212

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-16160

7AFE..AT211

 1
23814-16140

7AFE..AT211

 1
23807B - HOSE, FUEL DELIVERY PIPE
23271-16160

7AFE..AT211

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

5AFE,7AFE..AT211,212

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

5AFE,7AFE..AT211,212

 2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-06017

7AFE..AT211

 3
Common parts
21821-25180
90079-11001
90079-11004
90119-08932
90179-06288
90179-08153
91621-60612
91621-A0850
91621-B0665
Linked diagrams
8404
