AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )4AGE,5AFE,7AFE

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9608- )7AFE

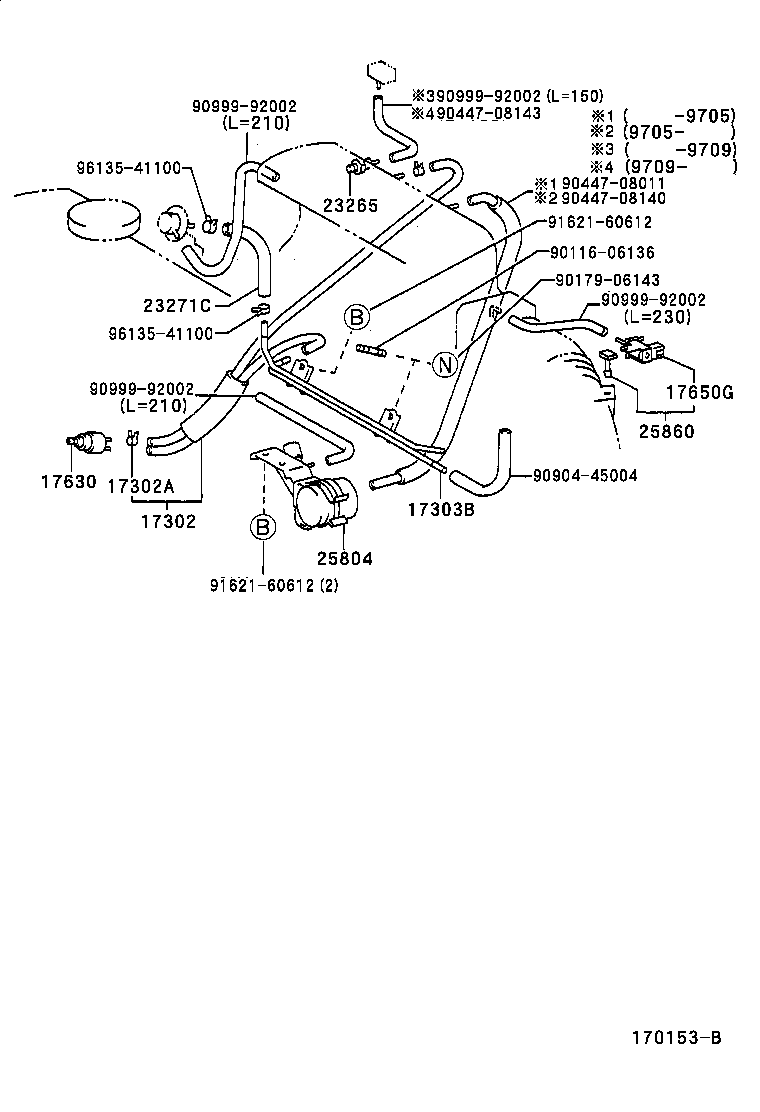

Click highlighted areas on diagram

diagram 17302 17302A 17303B 17630 17650G 23265 23271C 25804 25860 9011606136 9017906143 9044708011 9044708140 9044708143 9090445004 9099992002 9099992002 9099992002 9099992002 9162160612 9162160612 9613541100 9613541100
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-16090

5AFE,7AFE..AT211,212

 1
17302A - CLIP, HOSE
96132-51000

4AGE,5AFE,7AFE..AT21#

 2
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-16220

7AFE..AT211

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15050

5AFE,7AFE..AT211,212

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12170

7AFE..AT211

 1
23265 - FILTER, GAS, NO.1
90917-11037

7AFE..AT211

 1
23271C - HOSE, FUEL
95334-06022

7AFE..AT211

 1
25804 - VALVE SET, VACUUM CONTROL
25804-16070

7AFE..AT211

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200

7AFE..AT211

 1
Common parts
90116-06136
90179-06143
90447-08011
90447-08140
90447-08143
90904-45004
90999-92002
91621-60612
96135-41100
