AT211-CEPEK (1996)

Toyota Carina Ff

Production Aug 1996 - Dec 2001
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )7AFE

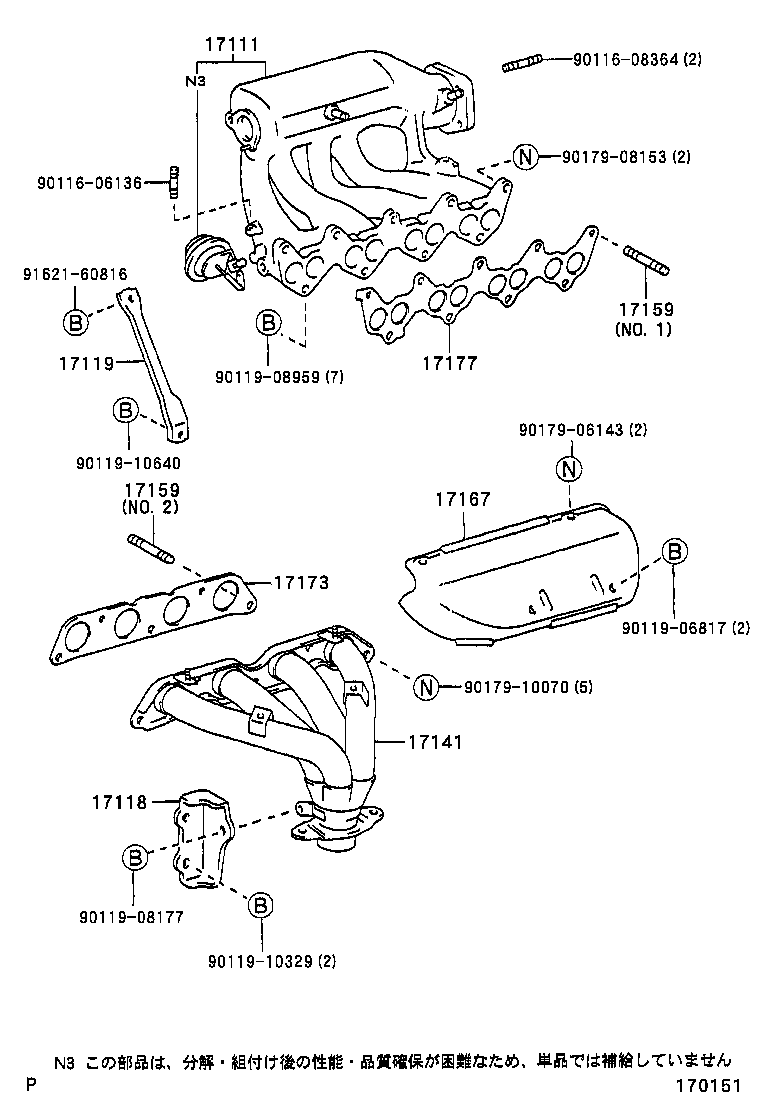

Click highlighted areas on diagram

diagram 17111 17118 17119 17141 17159 17159 17167 17173 17177 9011606136 9011608364 9011906817 9011908177 9011908959 9011910329 9011910640 9017906143 9017908153 9017910070 9162160816
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-16270

7AFE..AT211

 1
17118 - STAY, MANIFOLD
17118-16180

7AFE..AT211

 1
17119 - STAY, MANIFOLD, NO.2
17139-16120

7AFE..AT211

 1
17141 - MANIFOLD, EXHAUST
17141-16380

7AFE..AT211

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825

5AFE,7AFE..AT211,212

NO.1

 2
92112-61028

5AFE,7AFE..AT211,212

NO.2

 5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60825

5AFE,7AFE..AT211,212

NO.1

 2
92112-61028

5AFE,7AFE..AT211,212

NO.2

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16180

7AFE..AT211

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040

5AFE,7AFE..AT211,212

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-16060

7AFE..AT211

 1
Common parts
90116-06136
90116-08364
90119-06817
90119-08177
90119-08959
90119-10329
90119-10640
90179-06143
90179-08153
90179-10070
91621-60816
