AT211-CEPEK (1996)
Toyota Carina Ff
ILLUST NO. 1 OF 2(9608- )5AFE,7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-15040 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16262-16030 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-15040 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-16060 |
7AFE..AT211 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15180 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03109 |
5AFE,7AFE..AT211,212 *WAX 82−95 |
1 | ||
| 90916-03115 |
5AFE,7AFE..AT211,212 *WAX 82−95 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-15010 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16361 - FAN | ||||
| 16361-74060 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11050 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| 16363-74260 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15080 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-15020 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-16580 |
7AFE..AT211..4FC |
1 | ||
| 16400-16581 |
7AFE..AT211..4FC |
1 | ||
| 16400-16800 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4AGE,5AFE,7AFE..AT21# *H,L=410 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4AGE,5AFE,7AFE..AT21# *H,L=190 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-16130 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-16060 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74030 |
5AFE,7AFE..AT211,212 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-16230 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-16190 |
5AFE,7AFE..AT211,212 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGE,5AFE,7AFE..AT21# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16290 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| 16711-16291 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-06136 | ||||
| 90119-08419 | ||||
| 90119-10194 | ||||
| 90179-06143 | ||||
| 90179-08053 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91511-B0816 | ||||
| 91621-B0816 | ||||
| 91651-B0616 | ||||
| 92112-60835 | ||||
| 92122-60818 | ||||
| 96135-41300 | ||||
| 99555-10200 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1903 | ||||
| 2211 | ||||
| 8716 | ||||

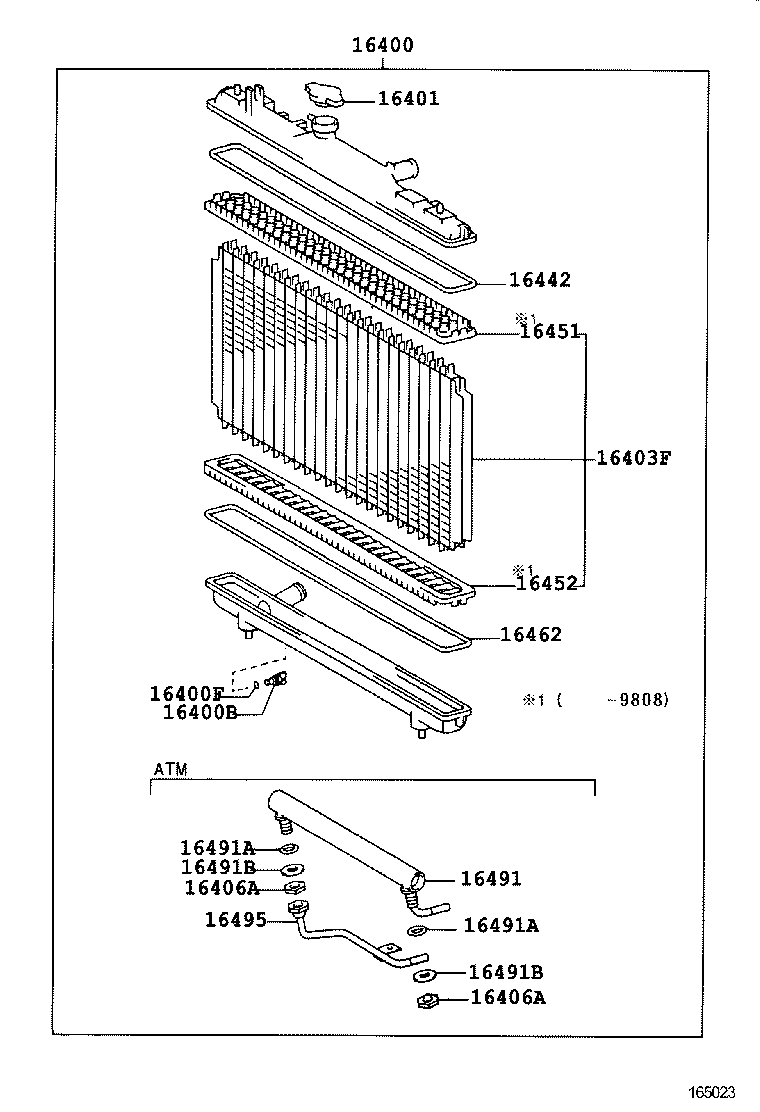

ILLUST NO. 2 OF 2(9608- )4AGE,5AFE,7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-16580 |
7AFE..AT211..4FC |
1 | ||
| 16400-16581 |
7AFE..AT211..4FC |
1 | ||
| 16400-16800 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16492-21050 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-16800 |
4AGE..AT210;5AFE,7AFE..AT211,212..4FC |
1 | ||
| 16403-16420 |
4AGE..AT210..5F;5AFE,7AFE..AT211,212..4FC |
1 | ||
| 16403-16700 |
4AGE,5AFE,7AFE..AT21#..4FC,6F |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
4AGE,7AFE..AT210,211..4FC |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
4AGE,7AFE..AT210,211..4FC |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74520 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-74520 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74520 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-74520 |
4AGE,5AFE,7AFE..AT21# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-16580 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4AGE,5AFE,7AFE..AT21#..4FC |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4AGE,5AFE,7AFE..AT21#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
4AGE,7AFE..AT210,211..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
4AGE,7AFE..AT210,211..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-16580 |
4AGE,7AFE..AT210,211..4FC |
1 | ||
